P1442

DTC P1442: FUEL LEVEL SENSOR CIRCUIT RANGE 1 PERFORMANCE PROBLEM




DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

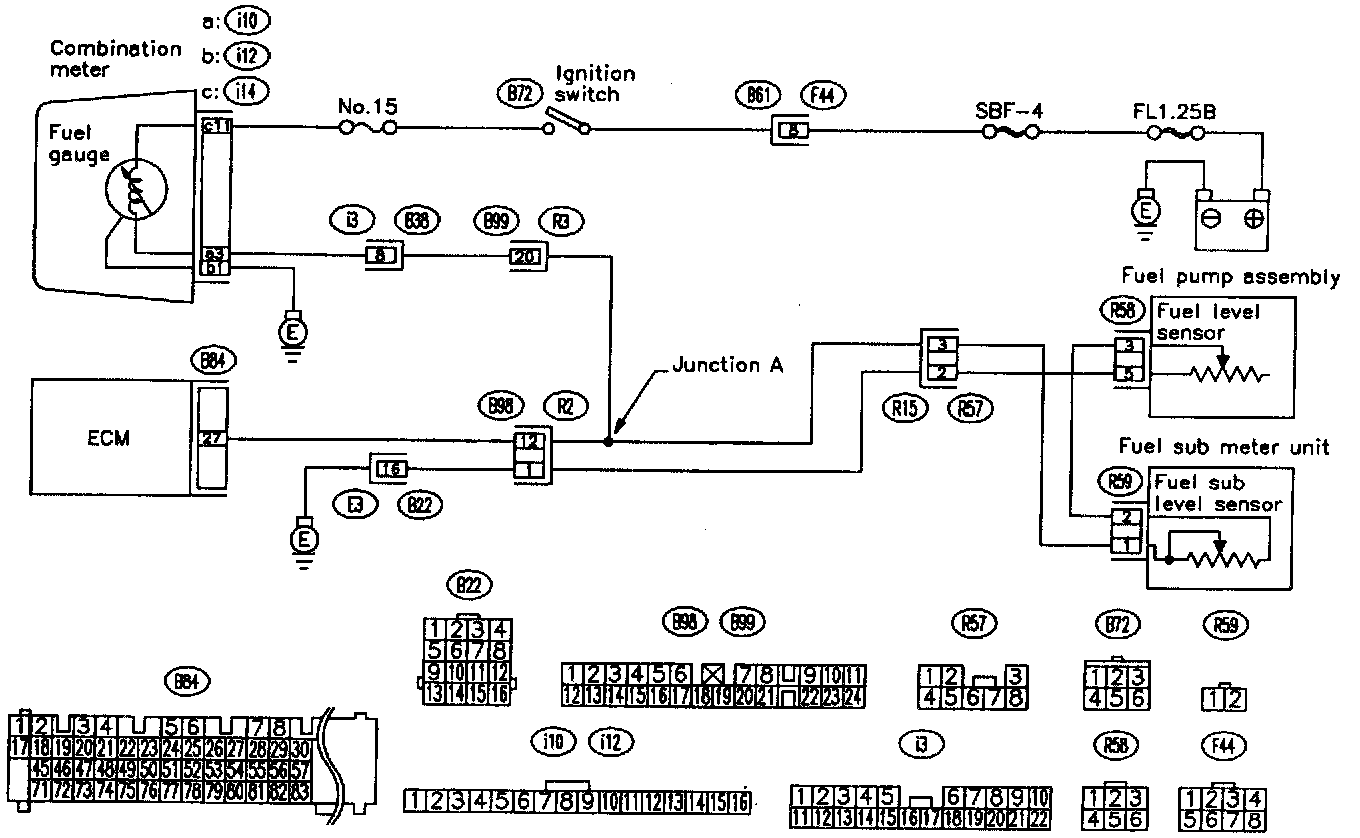

WIRING DIAGRAM (LHD)

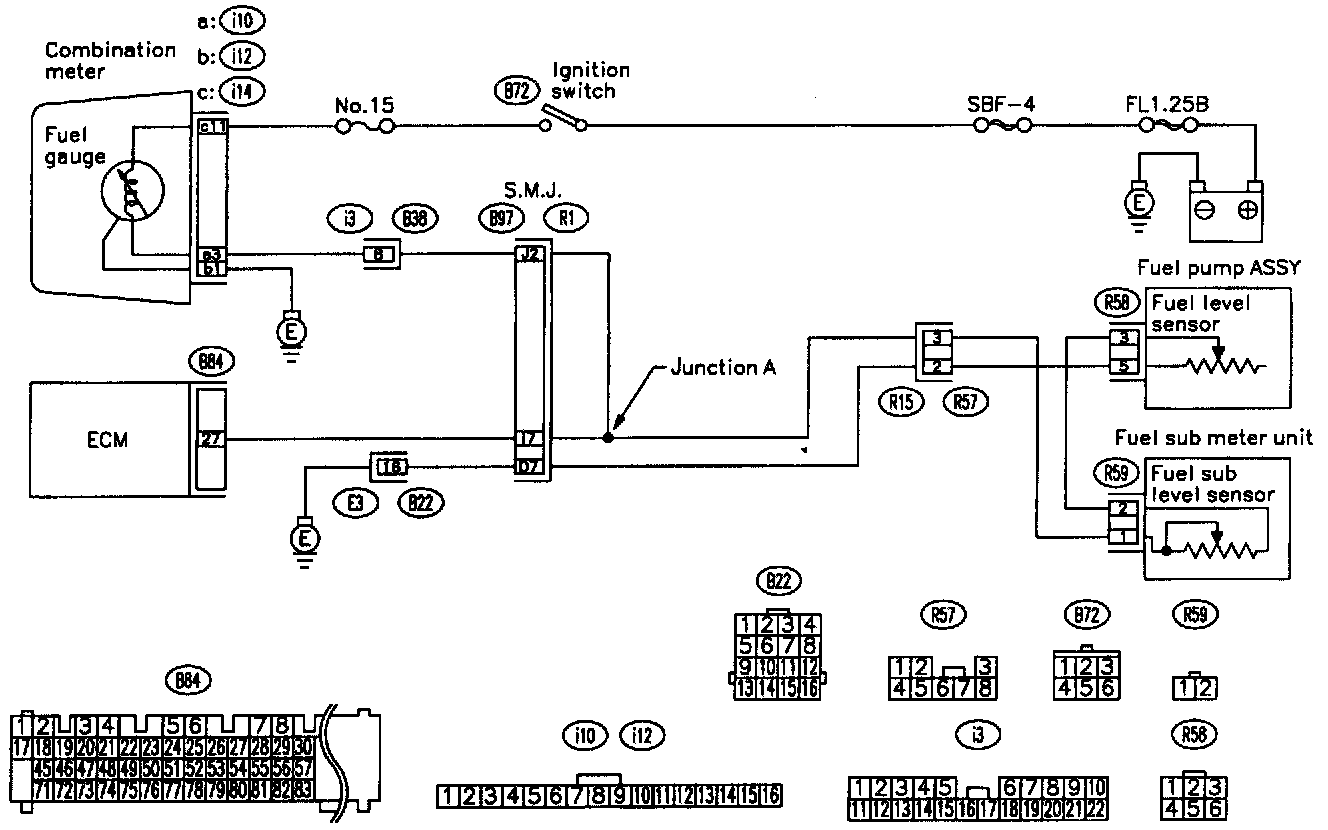

WIRING DIAGRAM (RHD)

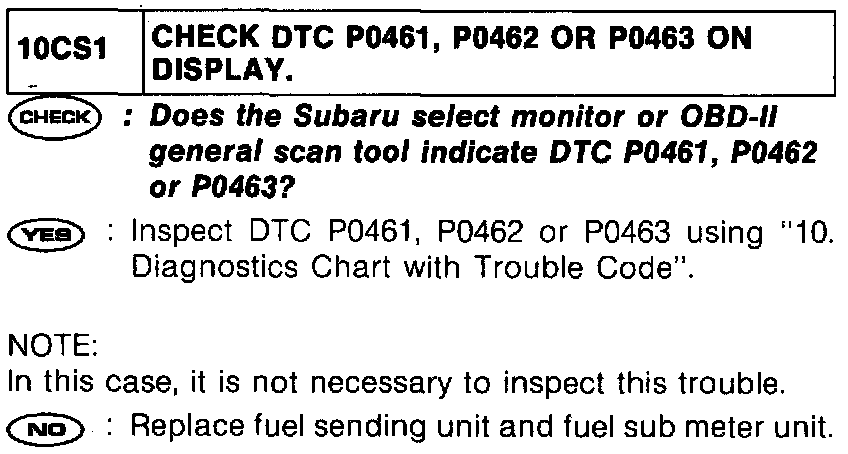

PROCEDURES (LHD)

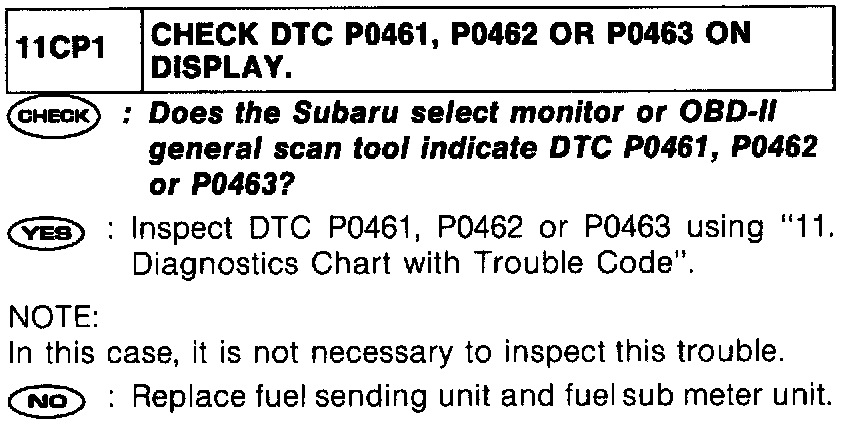

PROCEDURES (RHD)
