P1142

DTC P1142: THROTTLE POSITION SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM (LOW INPUT)





DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Erroneous idling
- Engine stalls.
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

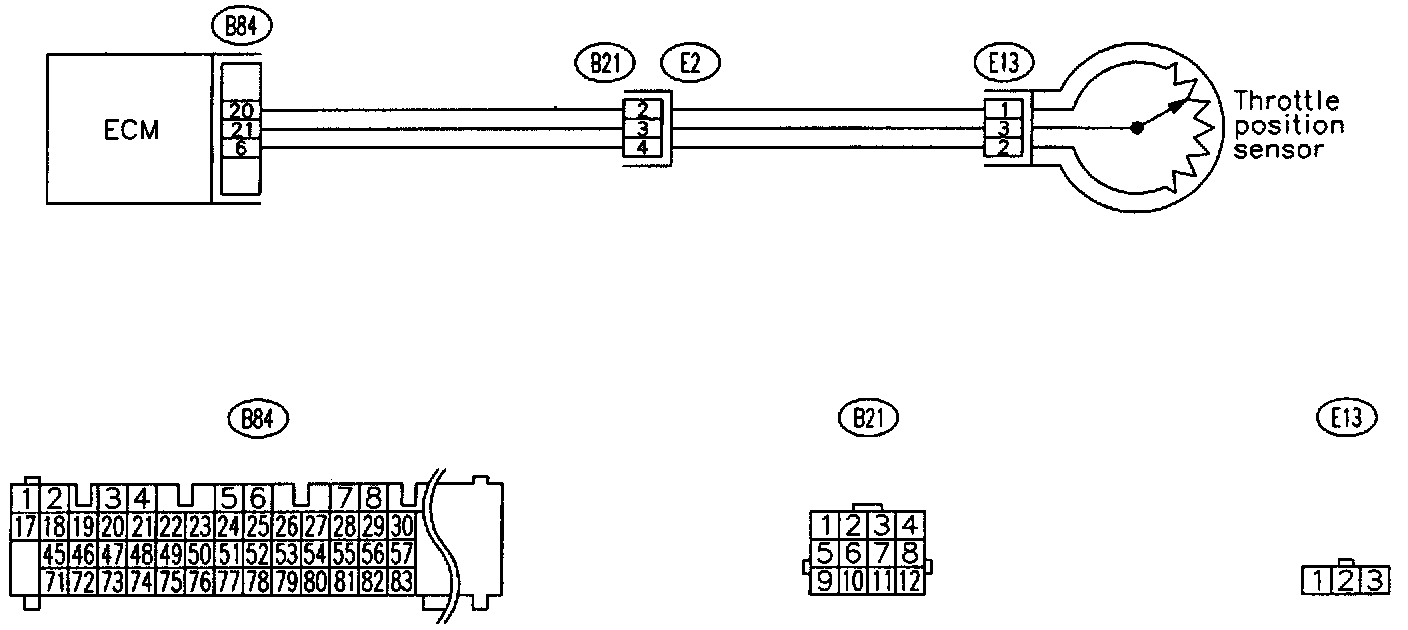

WIRING DIAGRAM (LHD)





WIRING DIAGRAM (RHD)

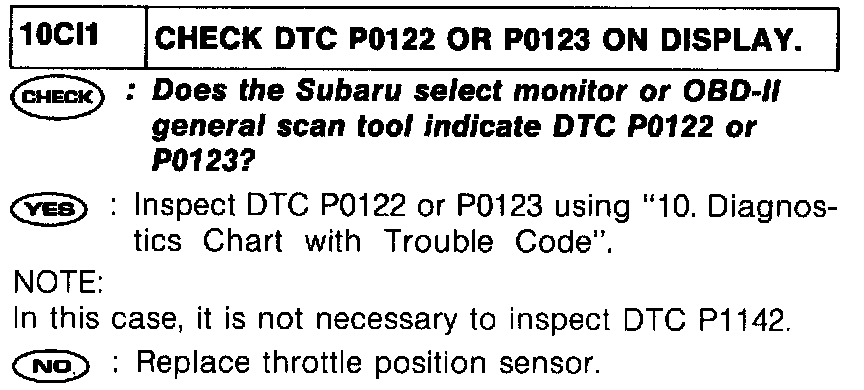

PROCEDURES
