P1124

DTC P1124: TCS SIGNAL CIRCUIT HIGH INPUT





DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- No operation TCS
TCS warning light remains illuminated.

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM

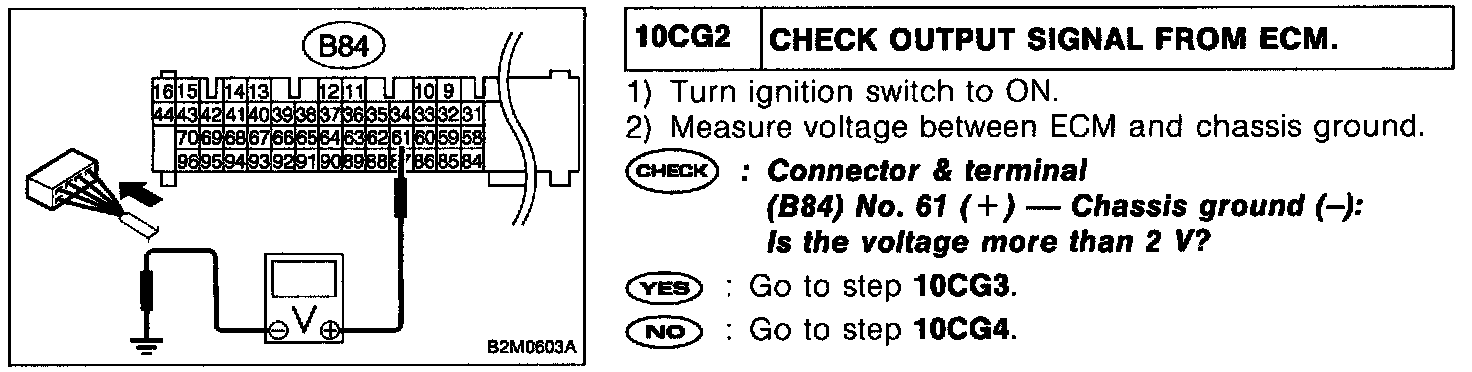

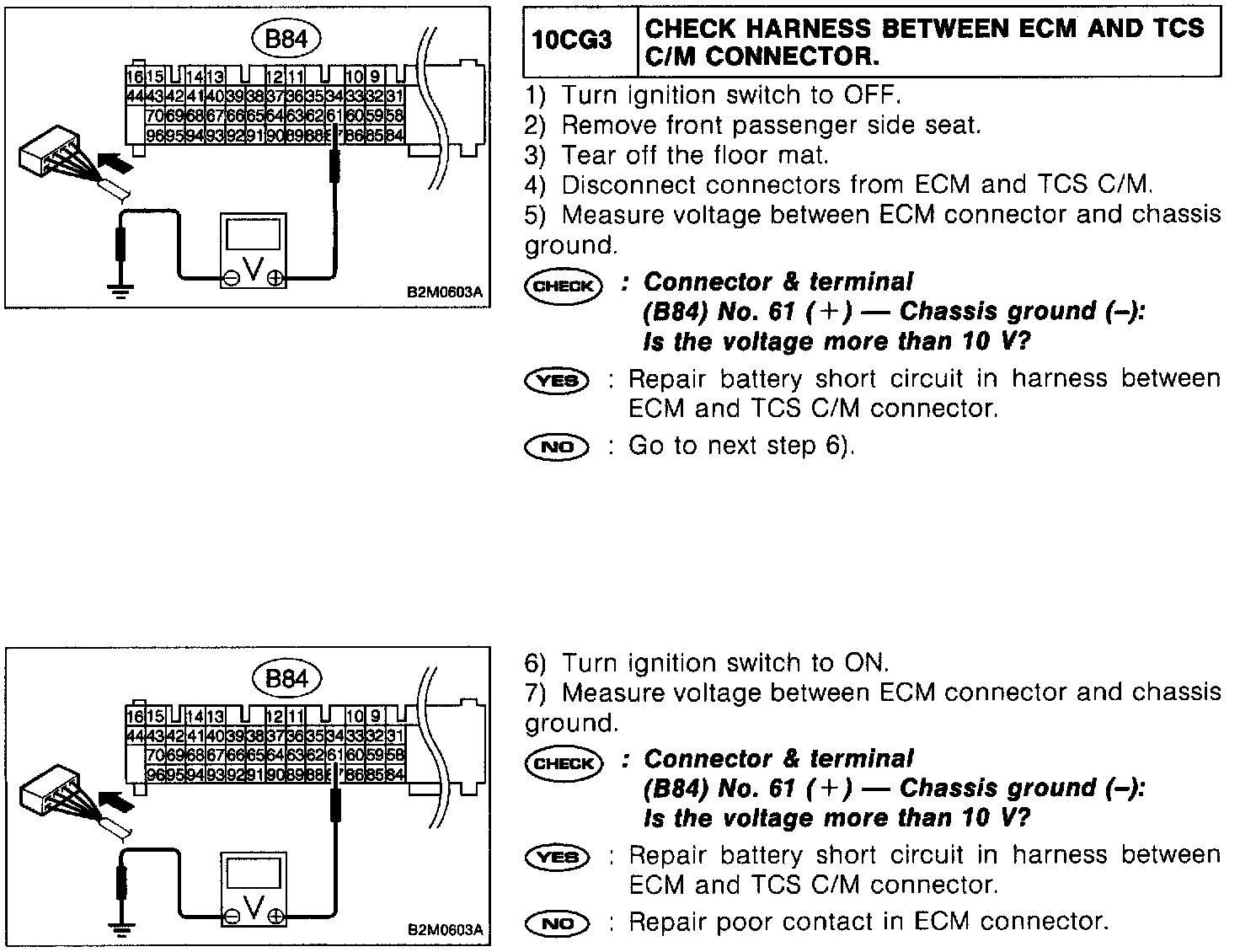

PROCEDURES
