P1121

DTC P1121: NEUTRAL POSITION SWITCH CIRCUIT LOW INPUT [AT VEHICLES]





DTC DETECTING CONDITION:
Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Erroneous idling

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

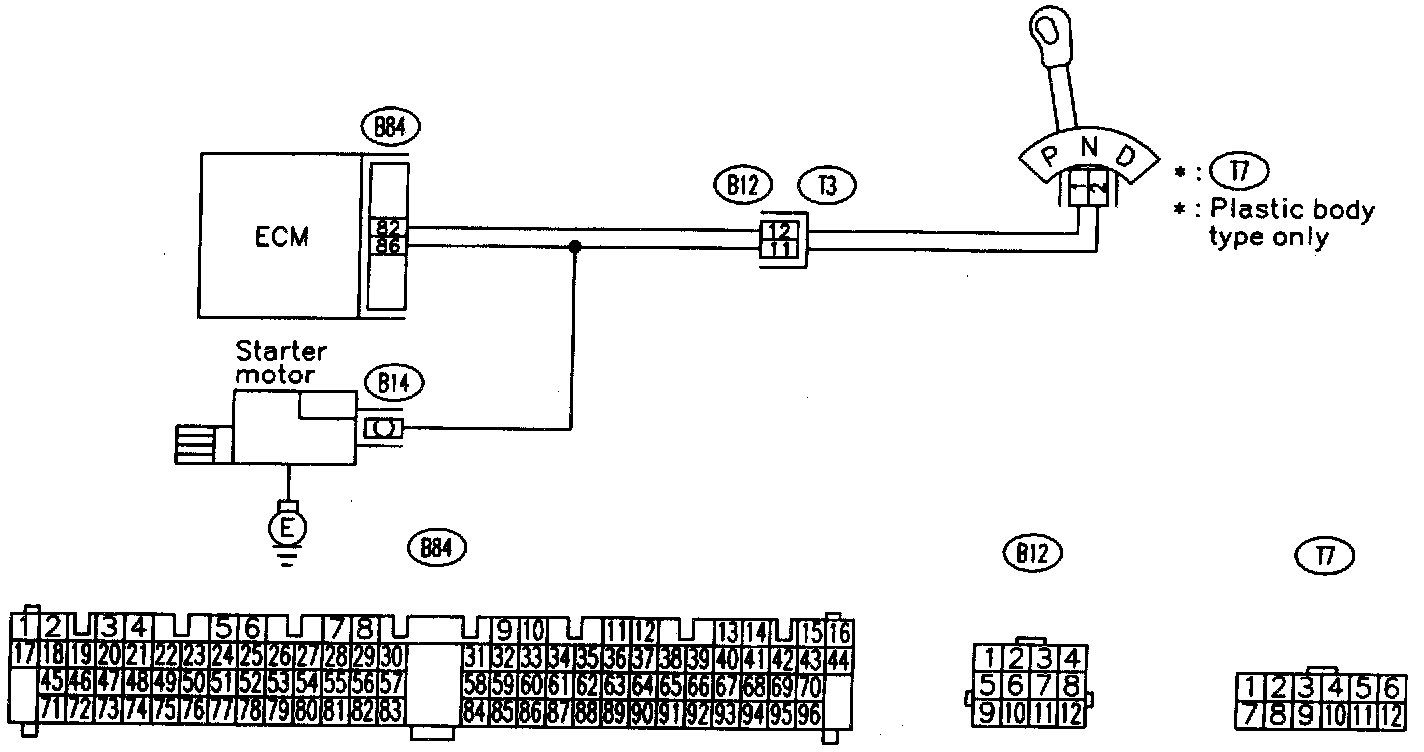

WIRING DIAGRAM (LHD)





WIRING DIAGRAM (RHD)

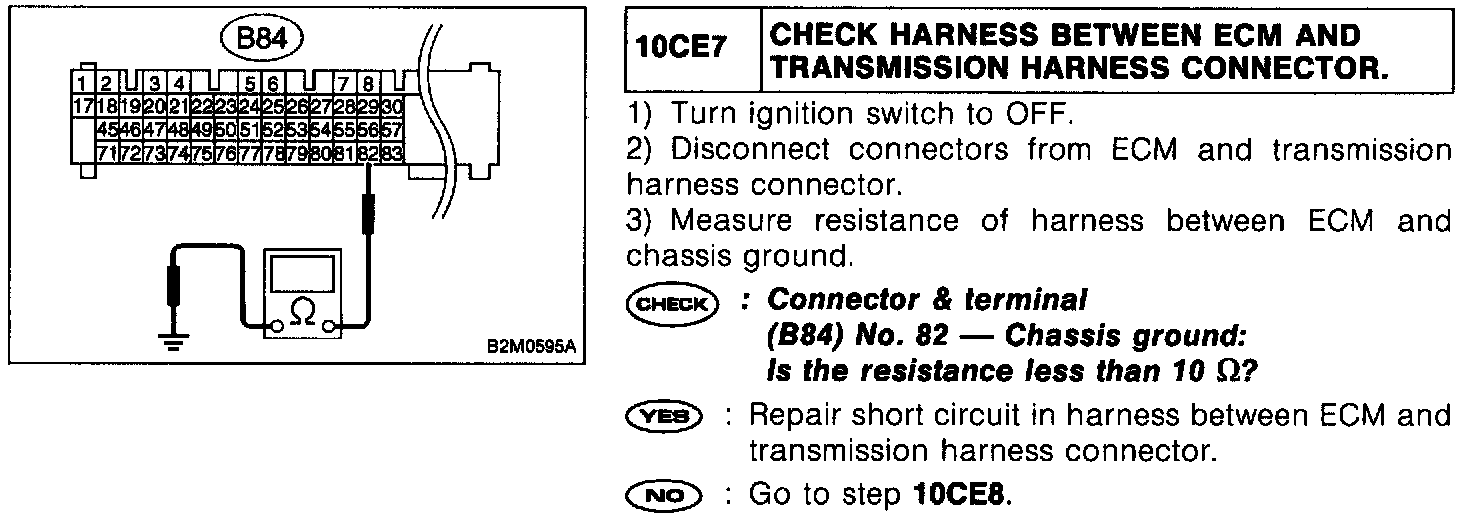

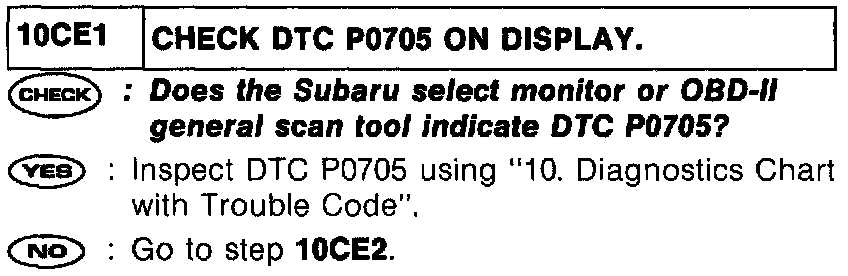

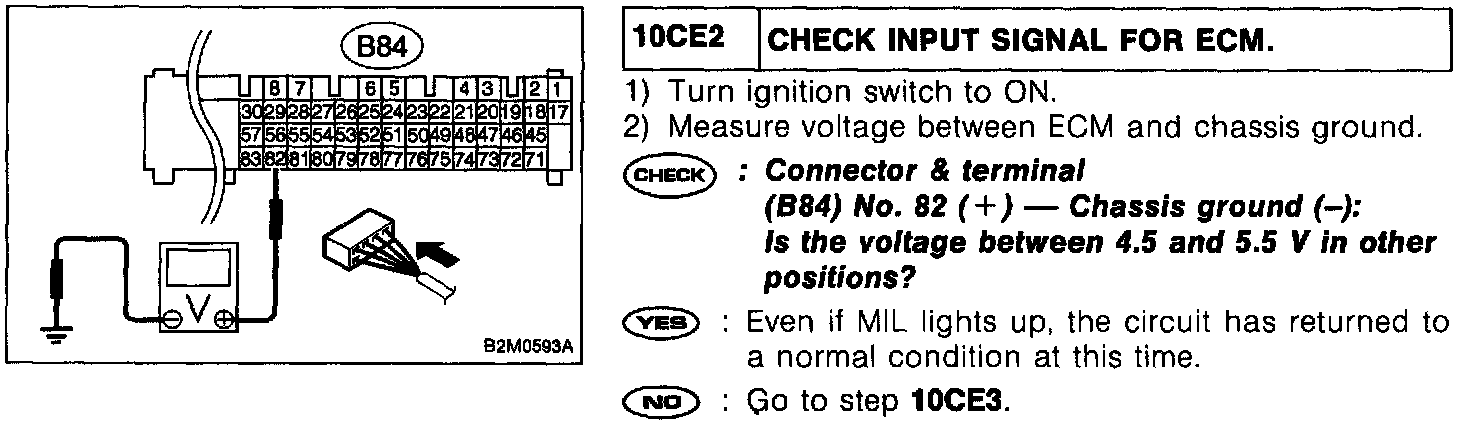

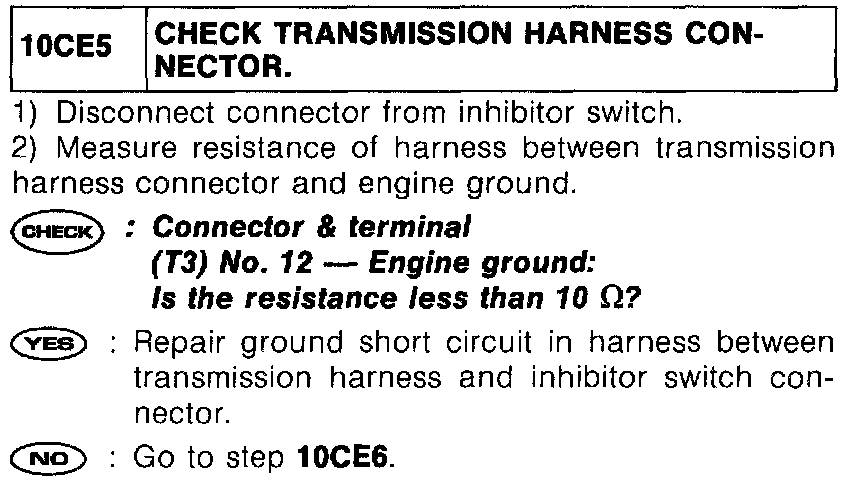

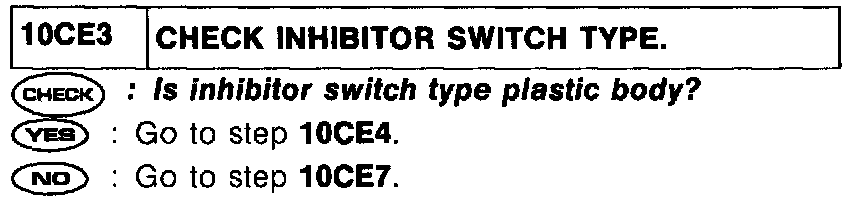

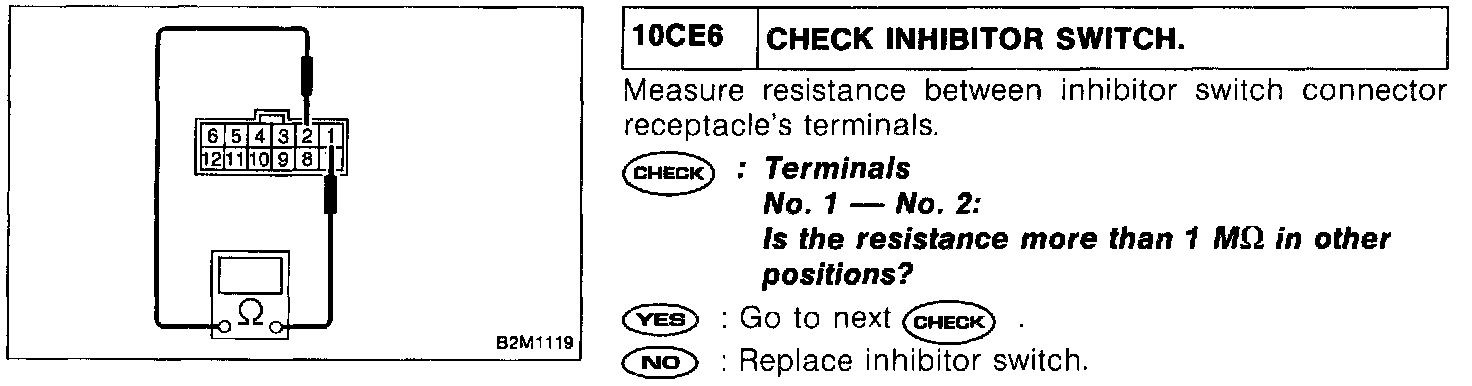

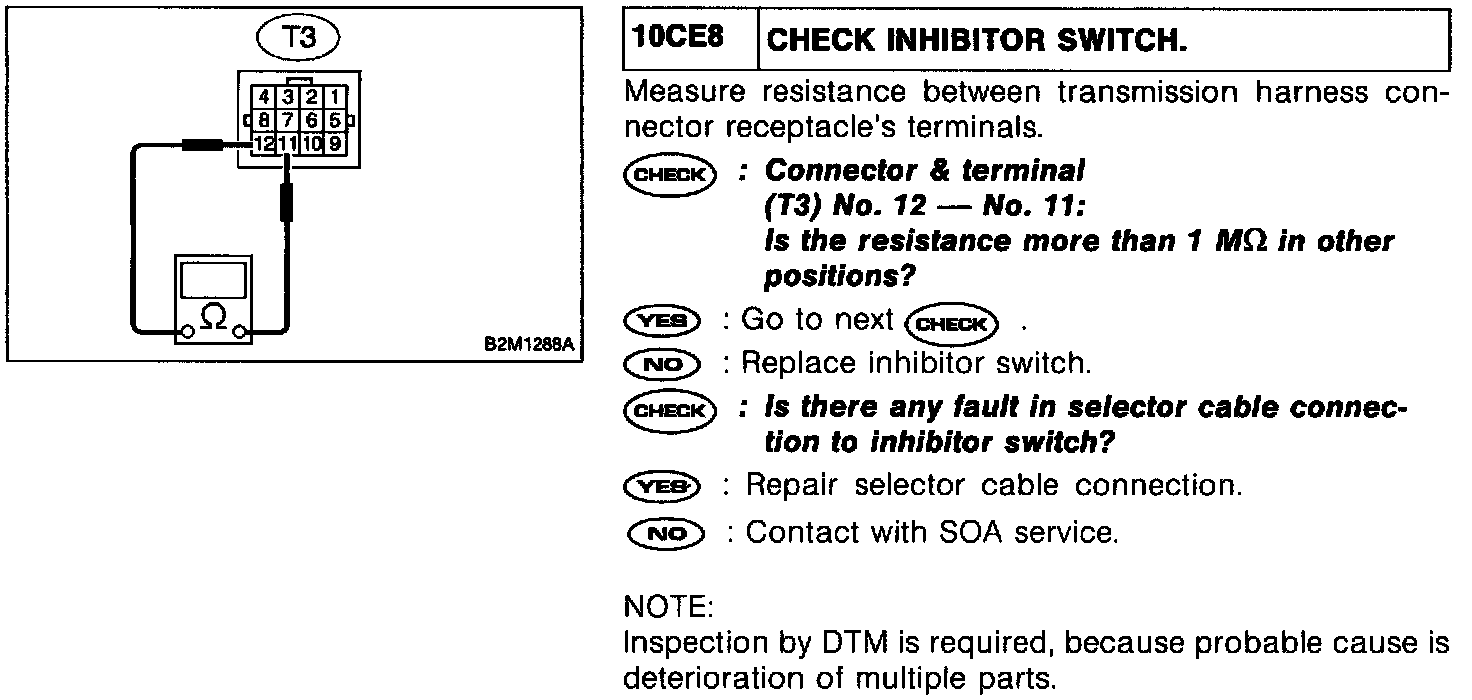

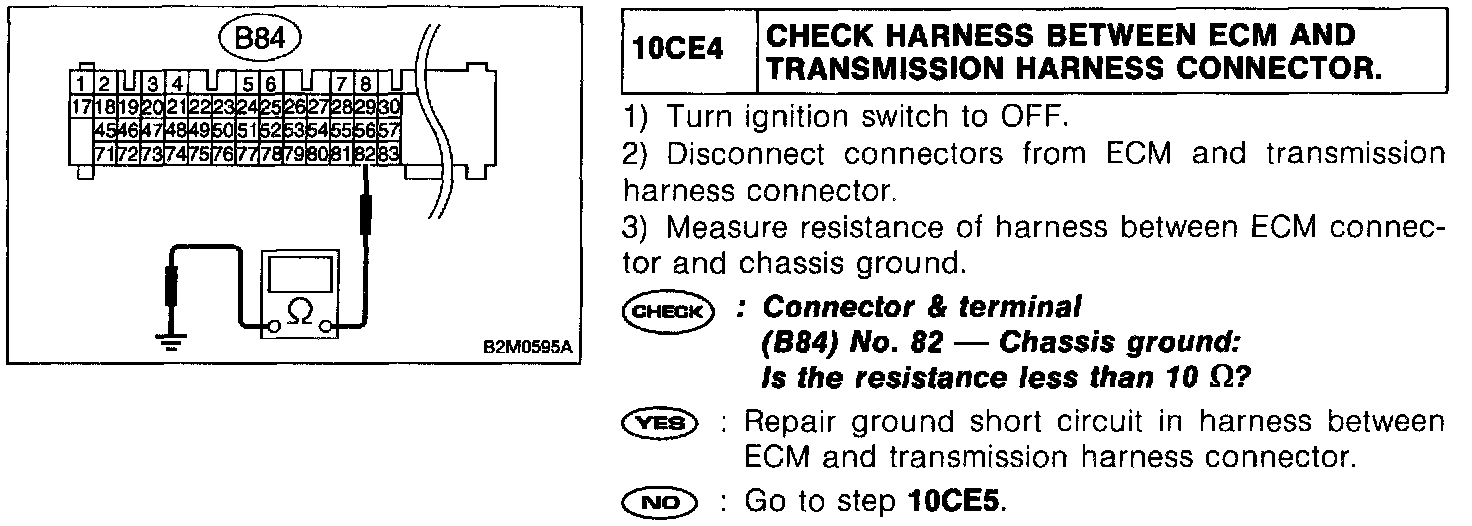

PROCEDURES
