P1104

DTC P1104: TCS SIGNAL CIRCUIT LOW INPUT





DTC DETECTING CONDITION:
- Two consecutive trips with fault

TROUBLE SYMPTOM:
- No operation TCS
- TCS warning tight remains illuminated.

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

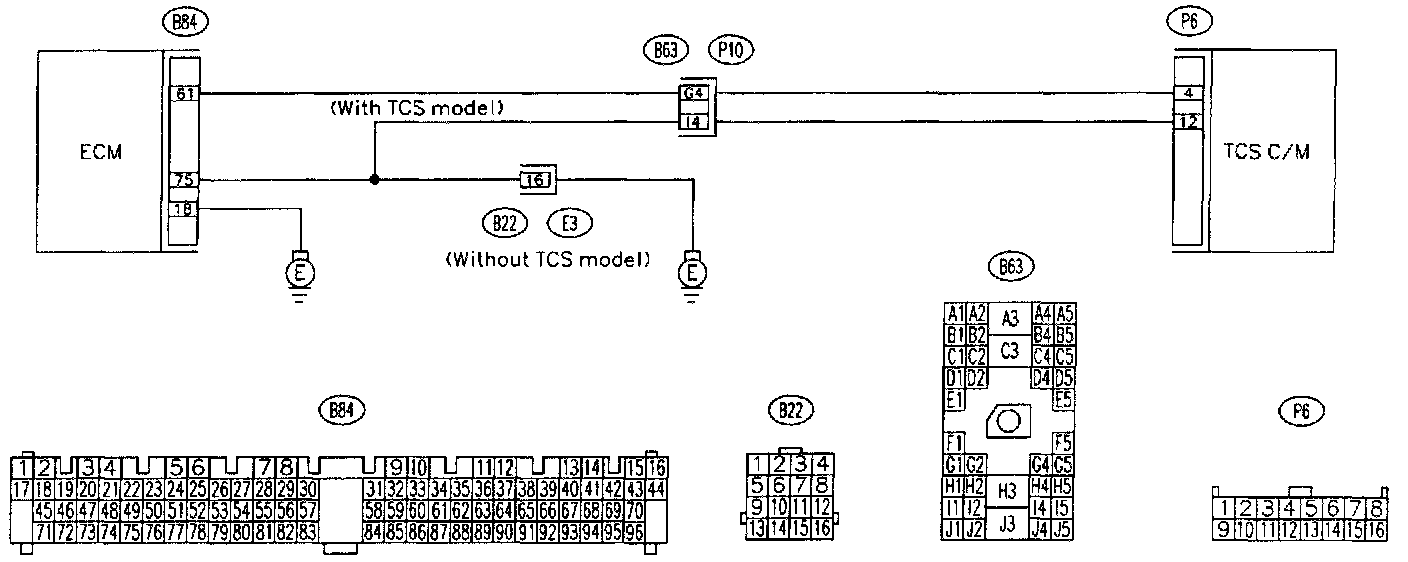

WIRING DIAGRAM

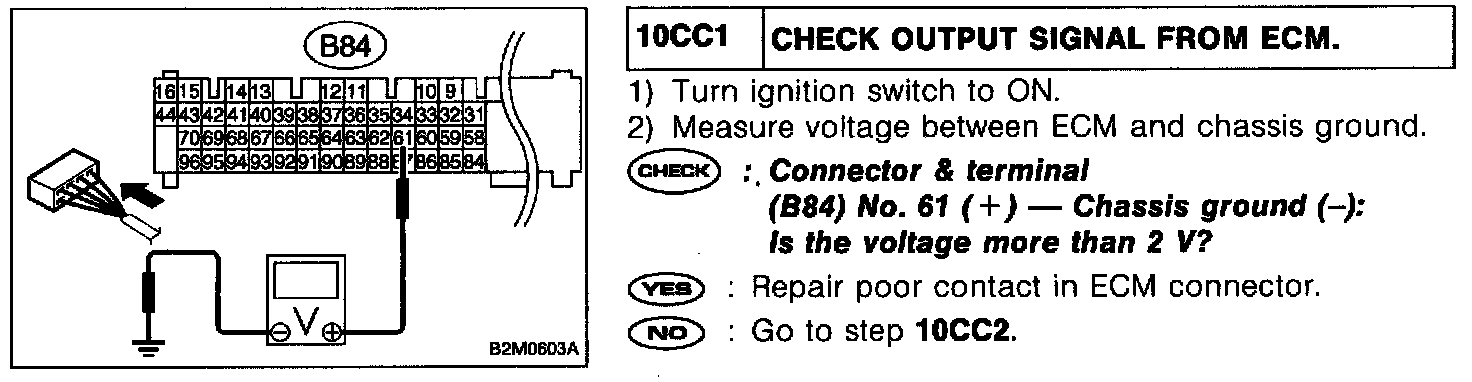

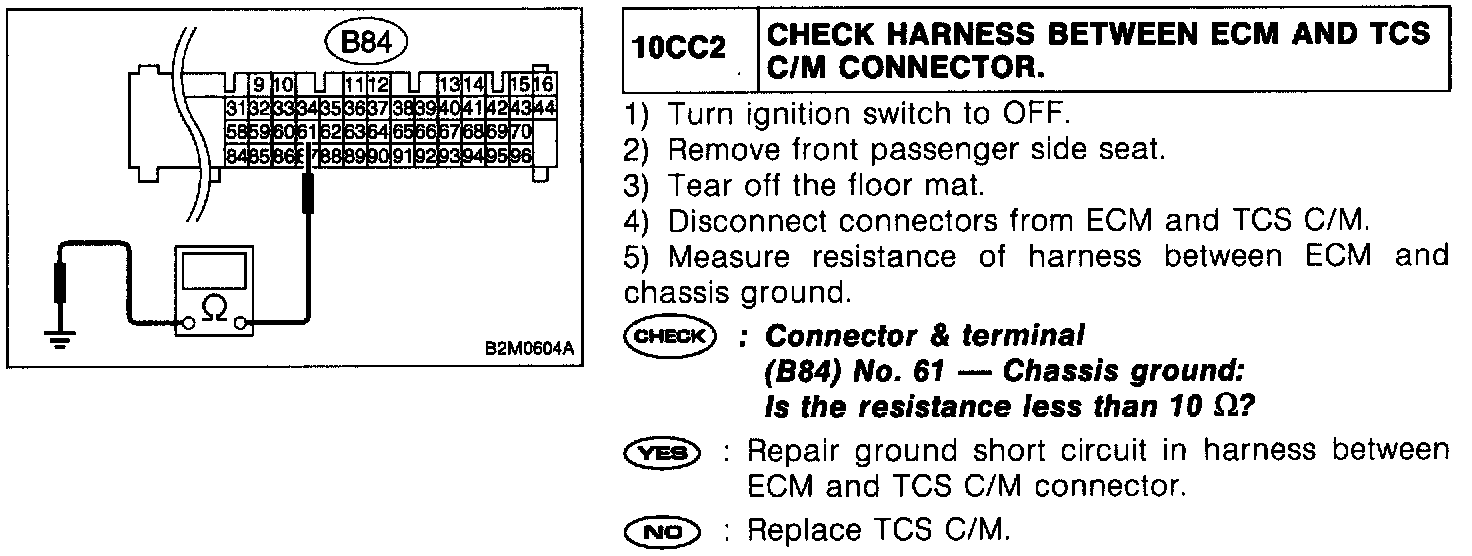

PROCEDURES
