P1103

DTC P1103: ENGINE TORQUE CONTROL SIGNAL CIRCUIT MALFUNCTION

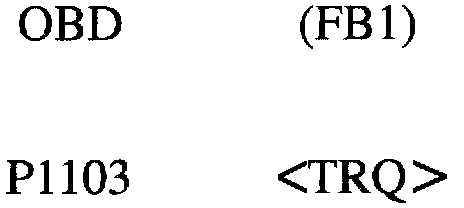

SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION:
- Two consecutive trips with fault

TROUBLE SYMPTOM:
- Excessive shift shock

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM (LHD)





WIRING DIAGRAM (RHD)

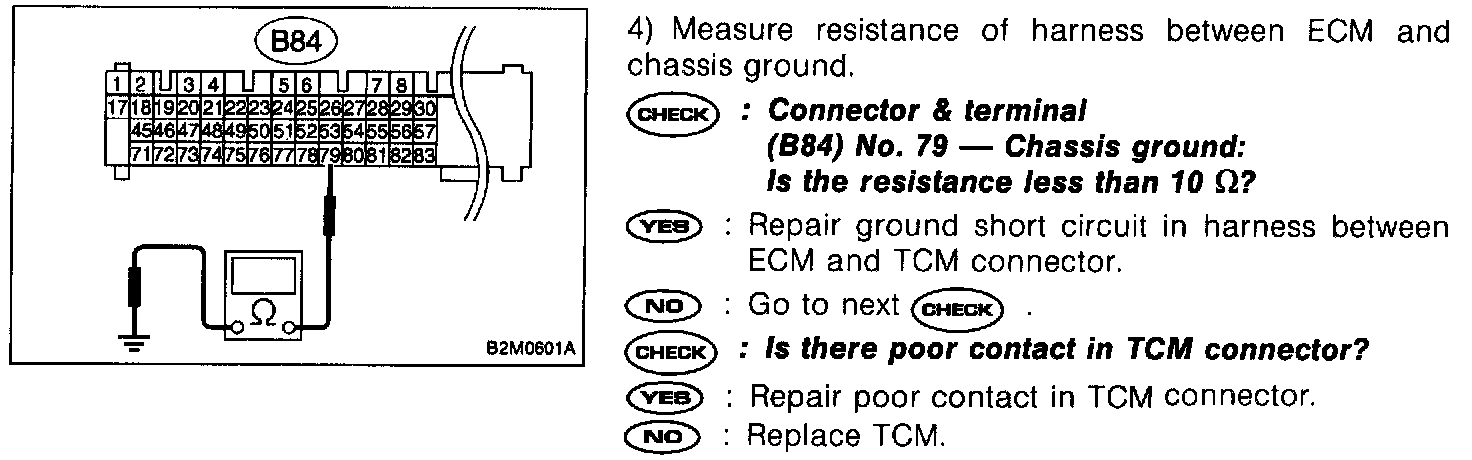

PROCEDURES
