Automatic Transaxle

DTC P1101: NEUTRAL POSITION SWITCH CIRCUIT MALFUNCTION [AT VEHICLES]

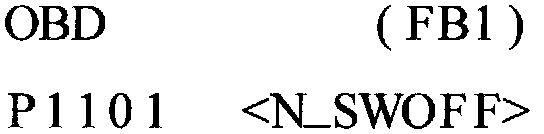

SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION:
- Two consecutive trips with fault

TROUBLE SYMPTOM:
- Erroneous idling

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

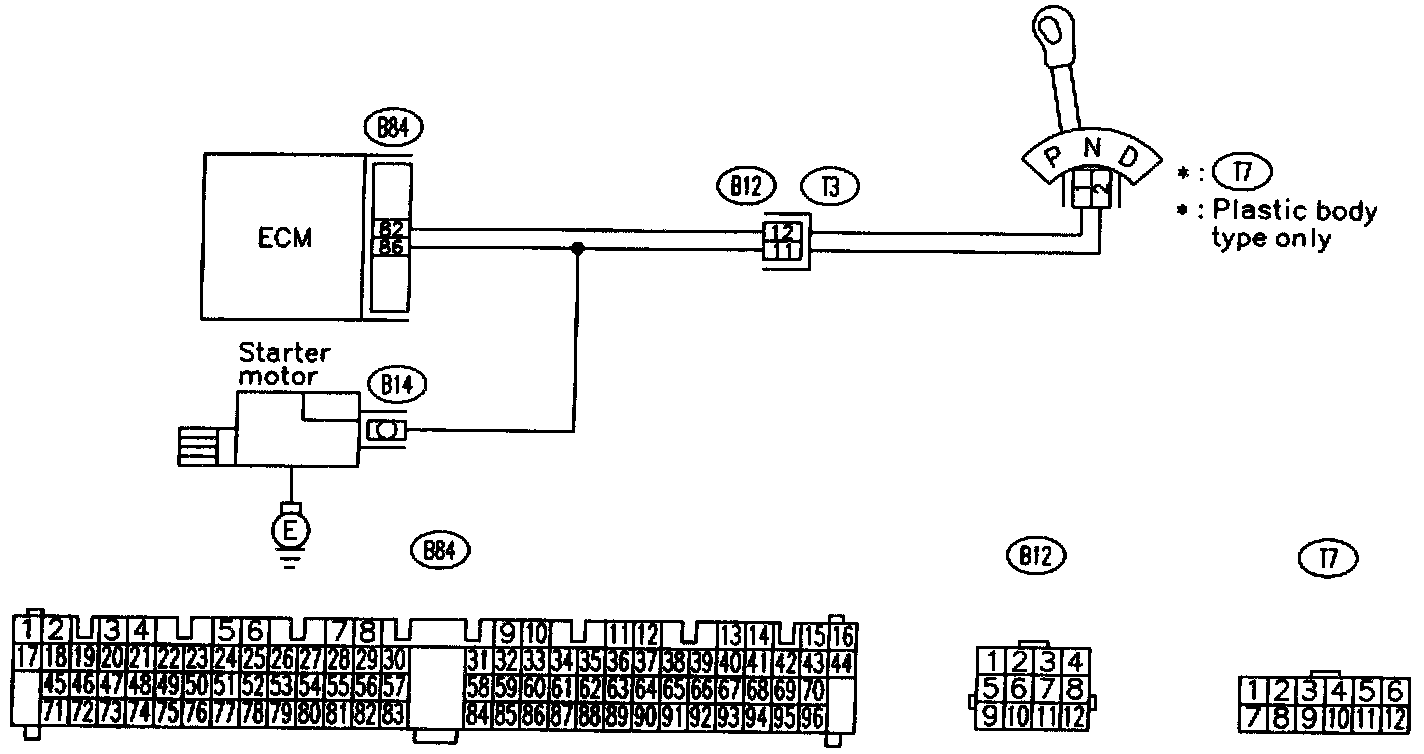

WIRING DIAGRAM

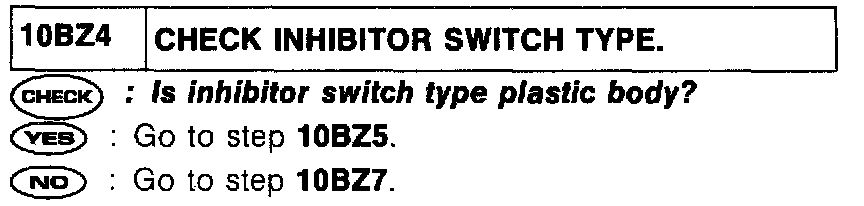

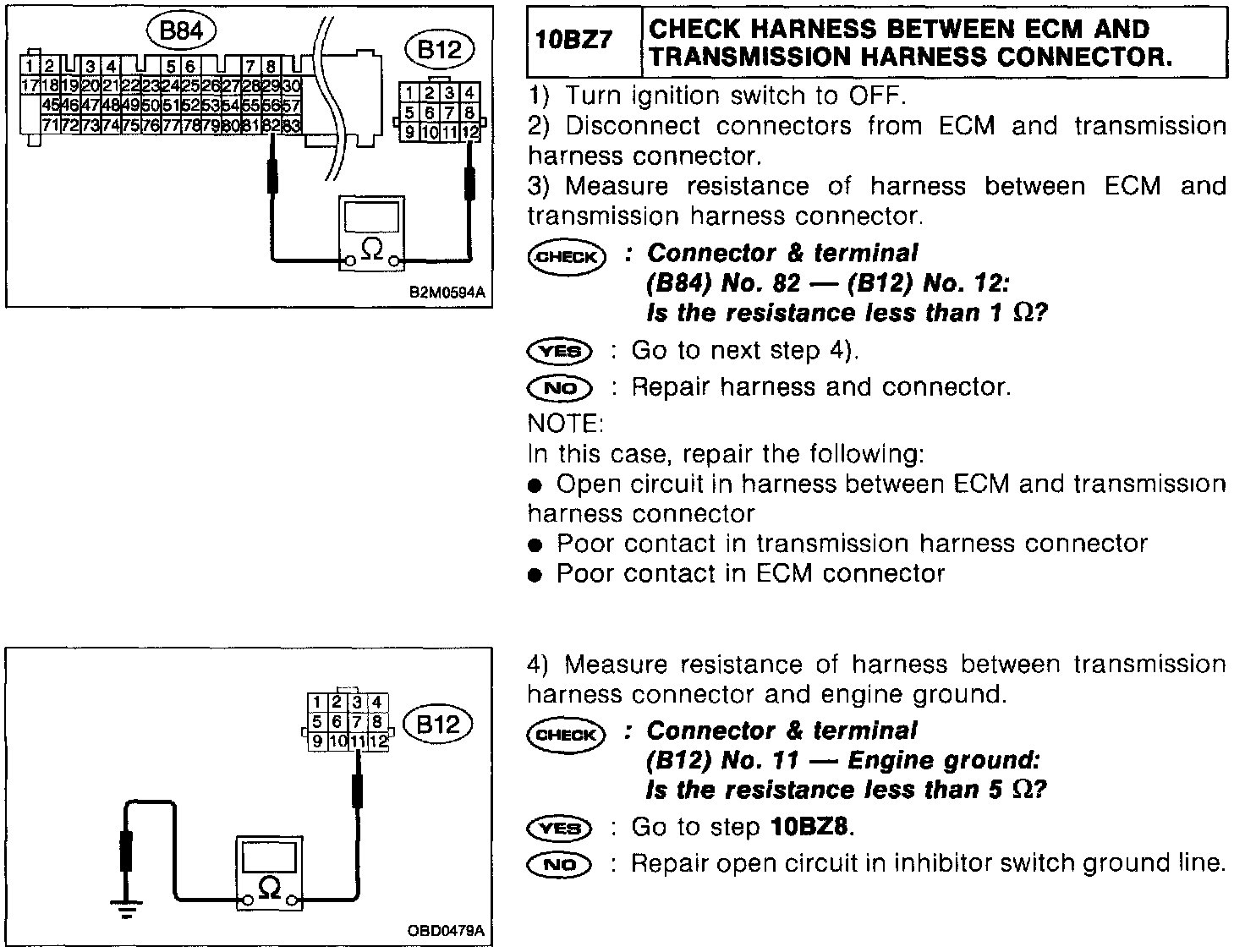

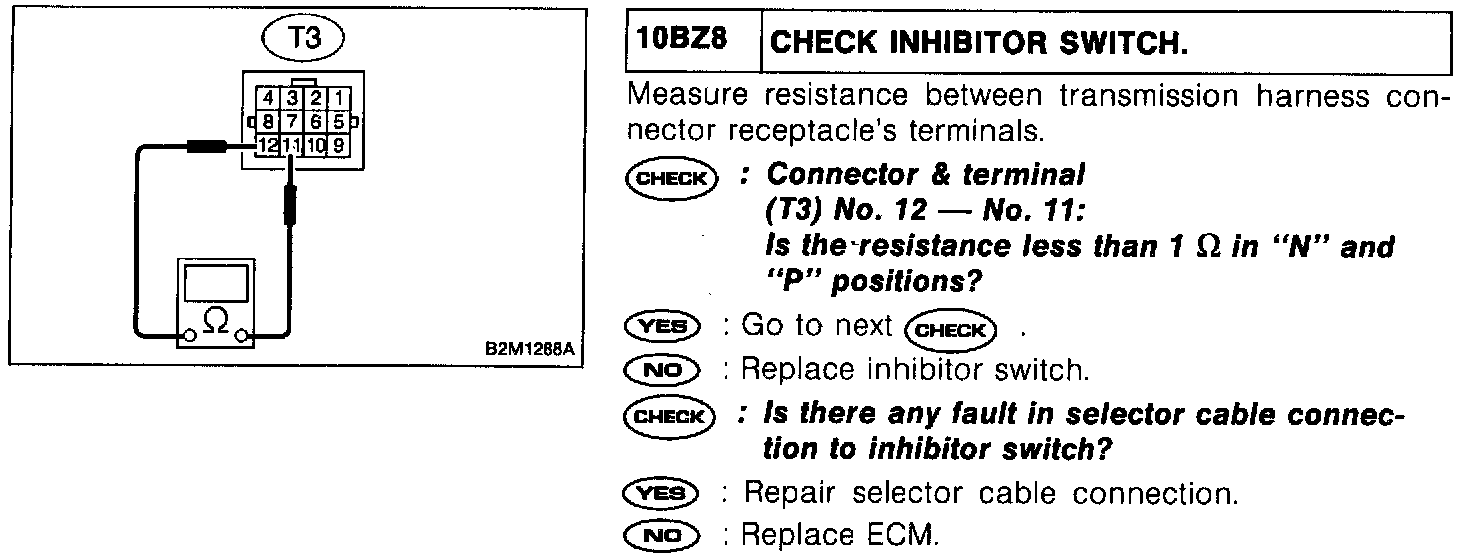

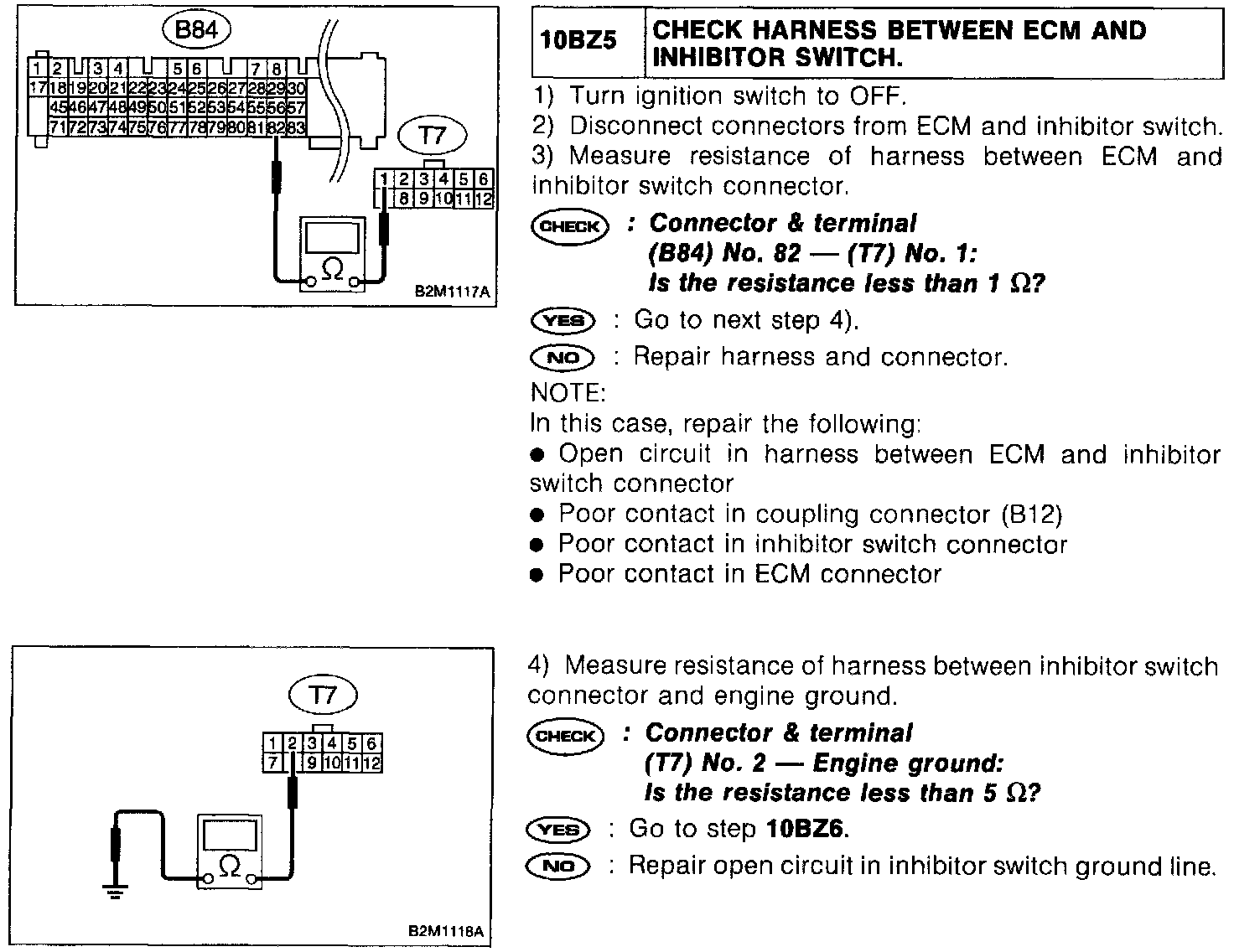

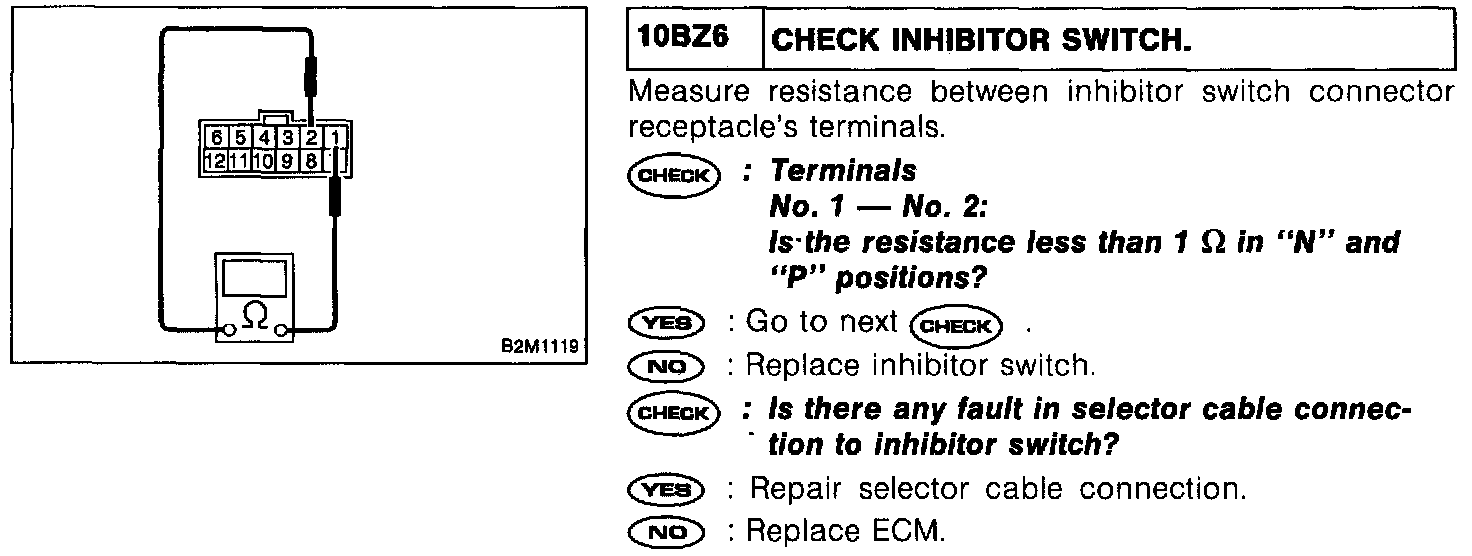

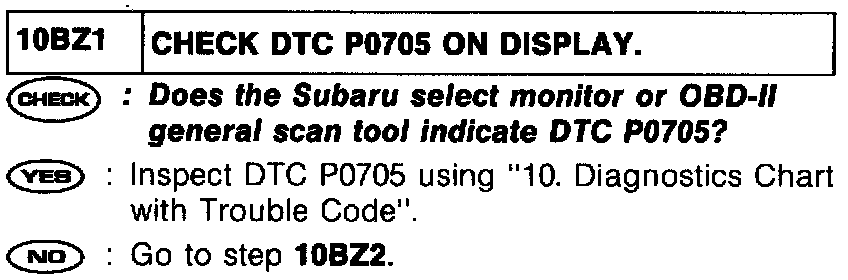

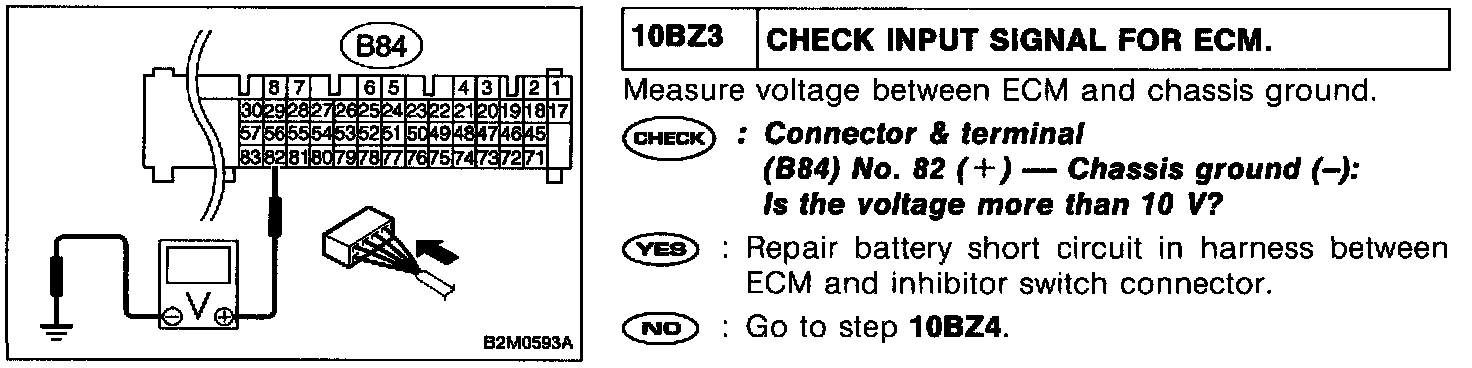

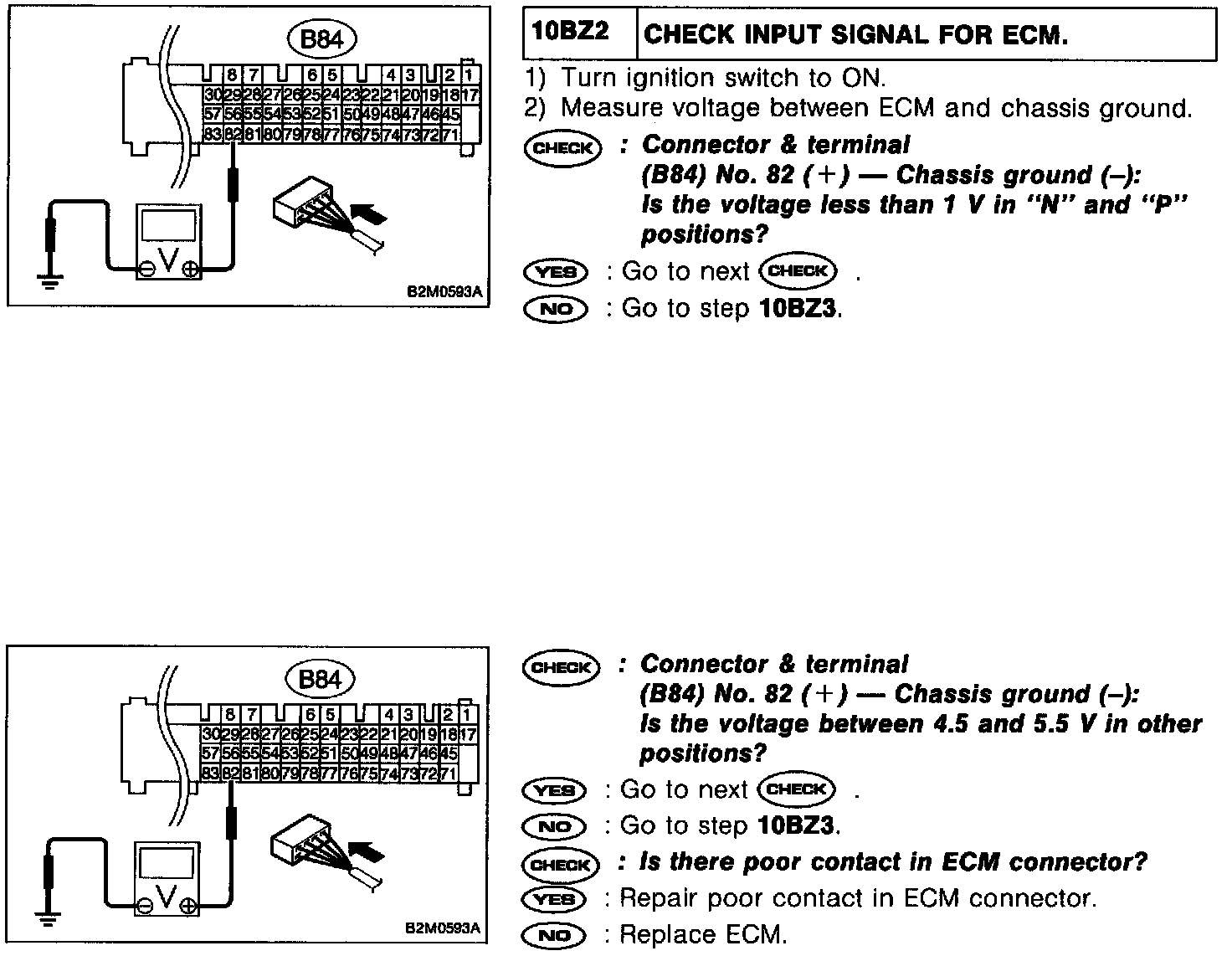

PROCEDURES
