P0720

DTC P0720: OUTPUT SPEED SENSOR (VEHICLE SPEED SENSOR 1) CIRCUIT MALFUNCTION

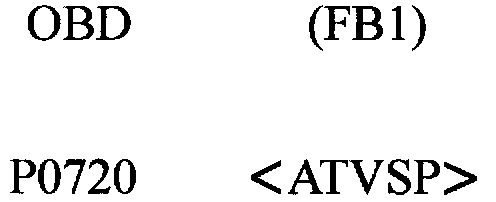

SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION:
- Two consecutive trips with fault

TROUBLE SYMPTOM:
- No shift or excessive tight corner "braking"

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

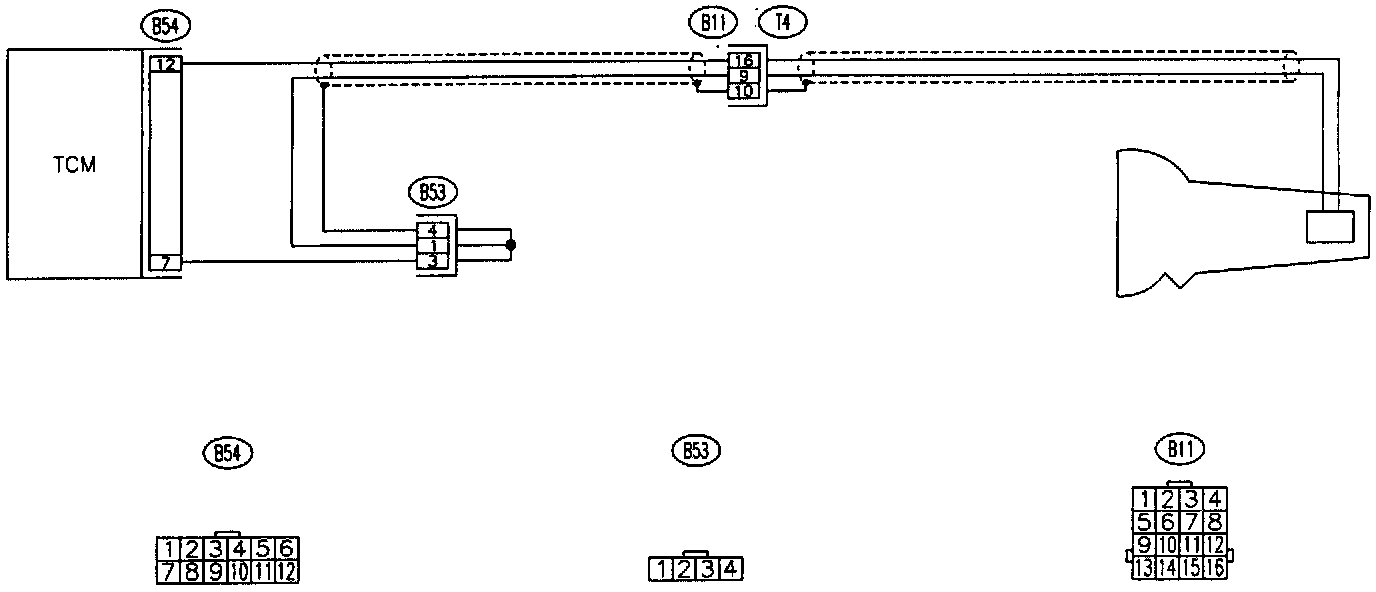

WIRING DIAGRAM (LHD)





WIRING DIAGRAM (RHD)

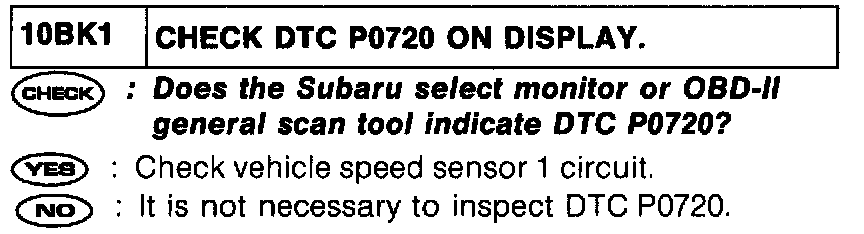

PROCEDURE
