P0463

DTC P0463: FUEL LEVEL SENSOR CIRCUIT HIGH INPUT

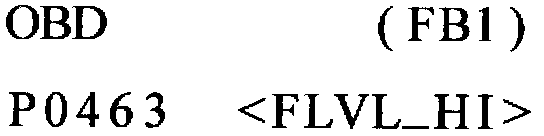

SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION
- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES

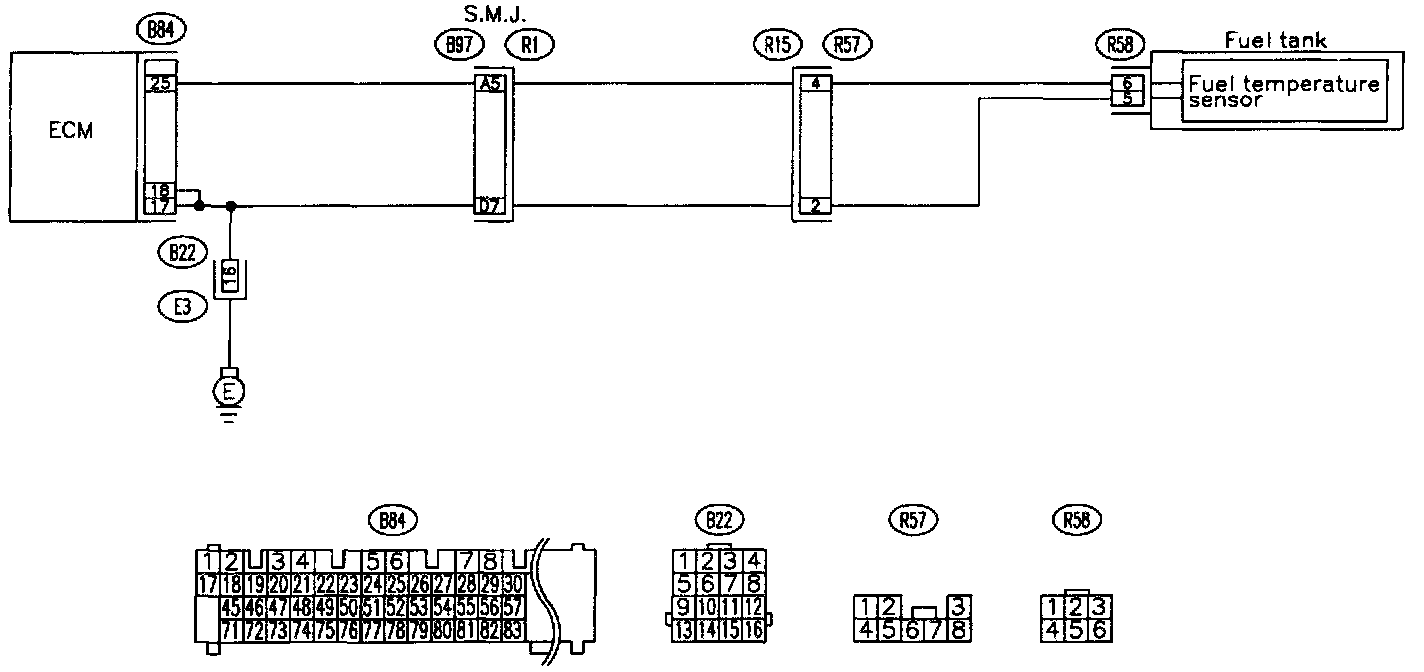

WIRING DIAGRAM (LHD)





WIRING DIAGRAM (LHD)





WIRING DIAGRAM (RHD)

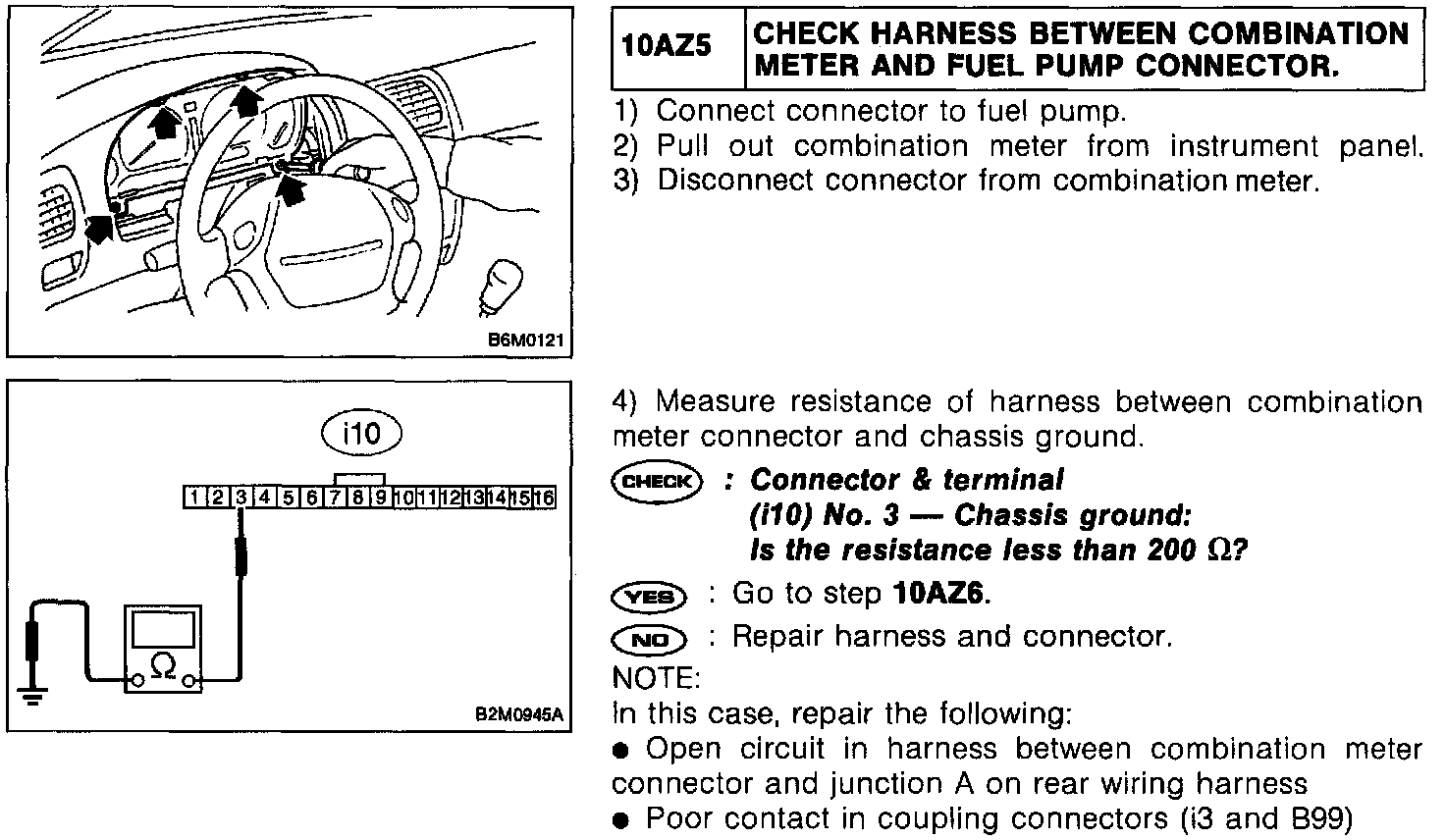

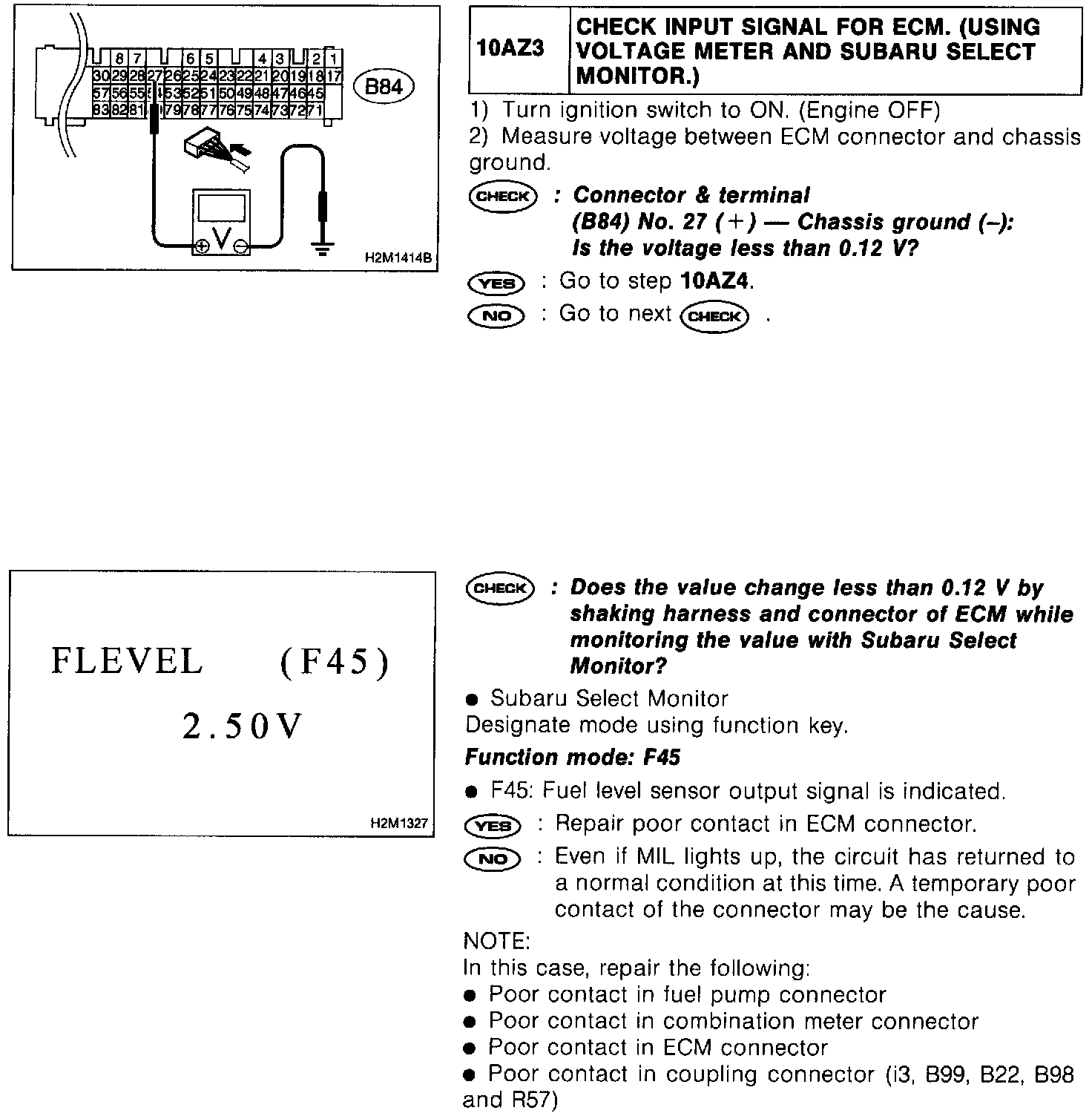

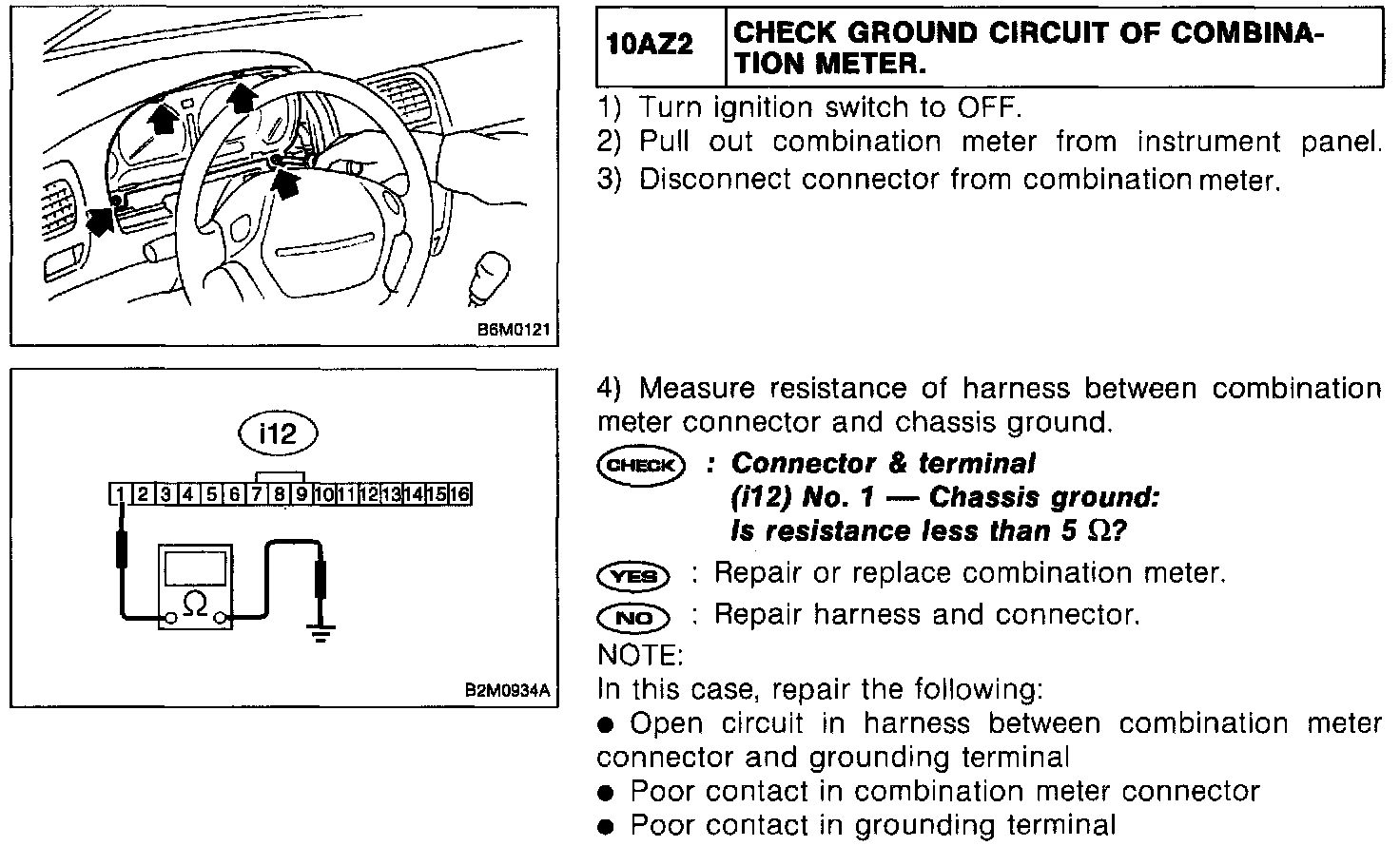

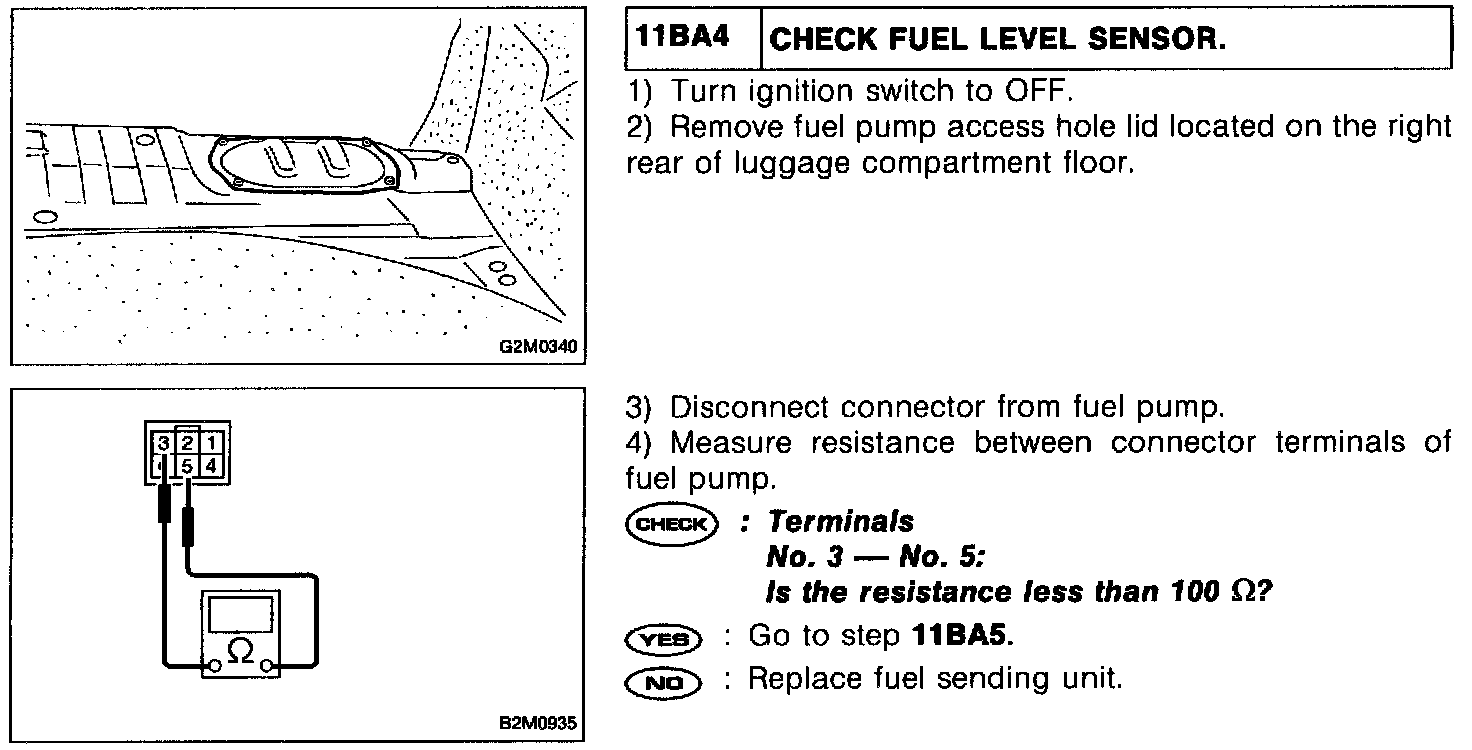

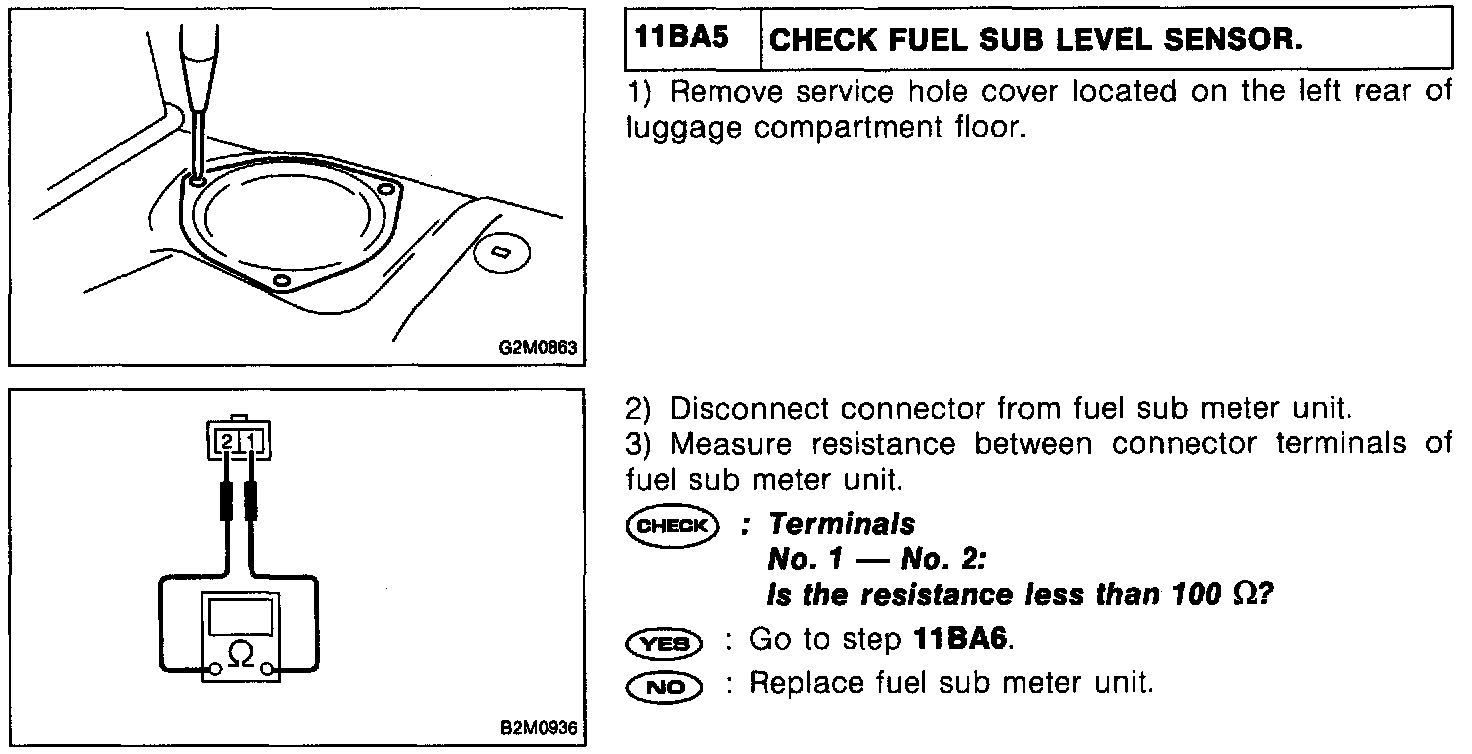

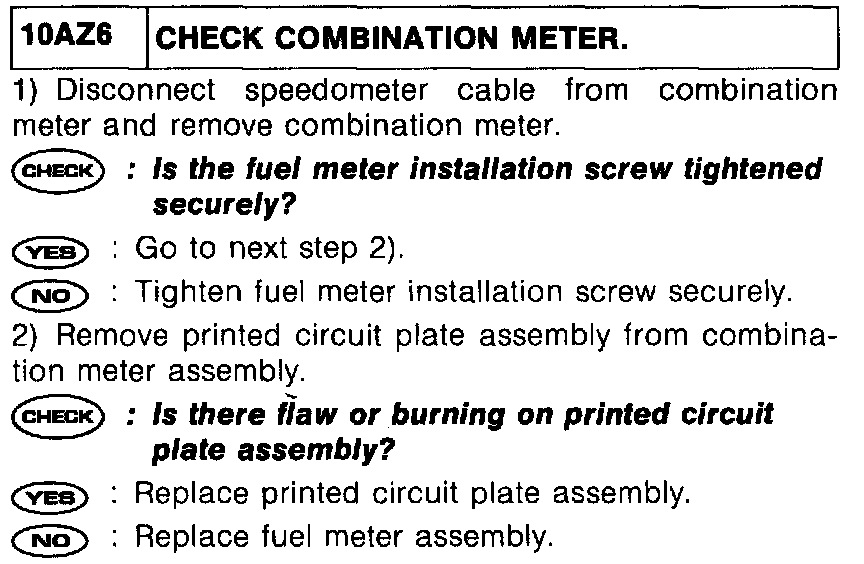

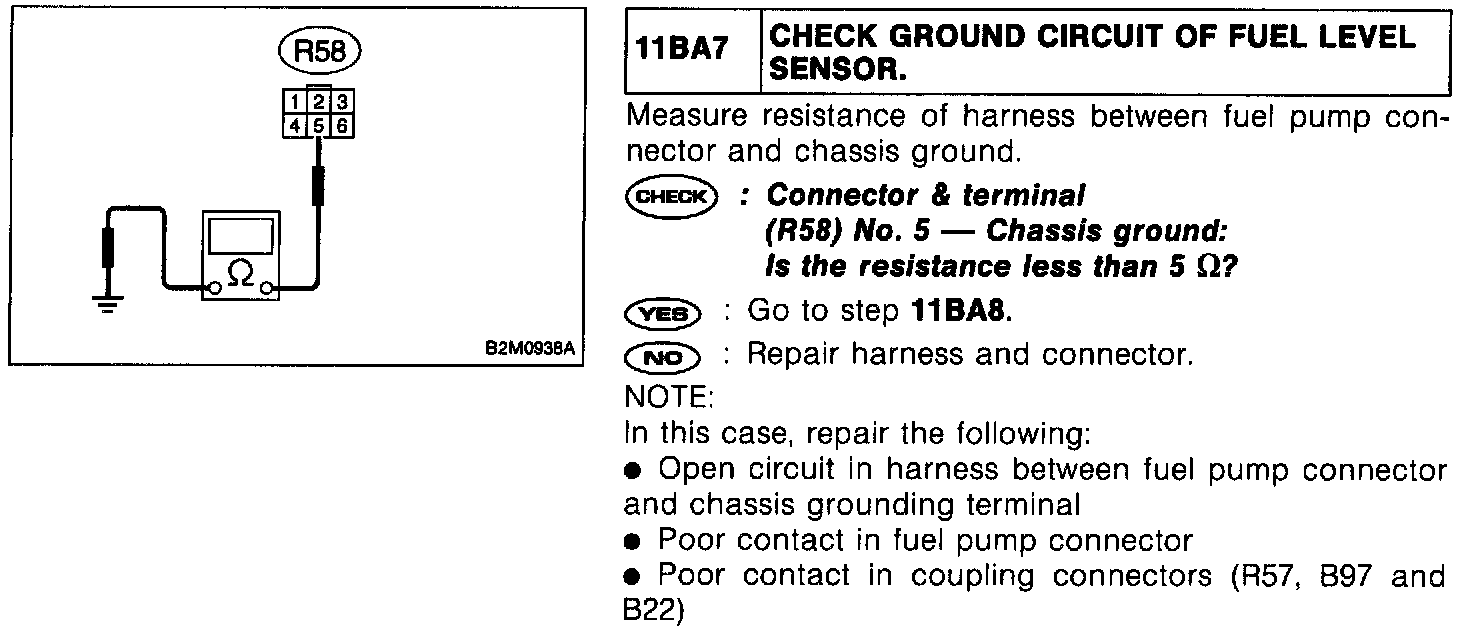

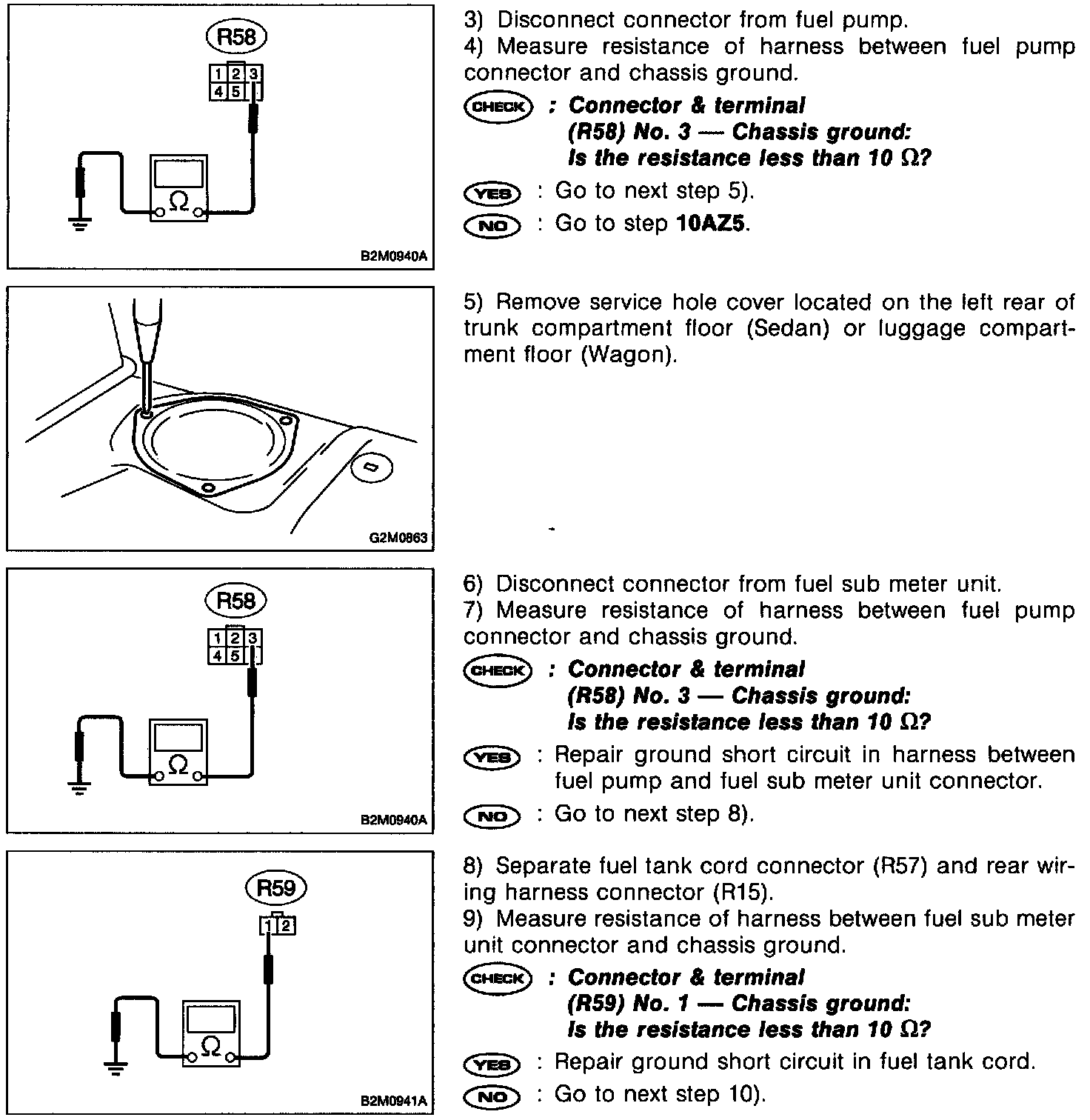

PROCEDURES (LHD)

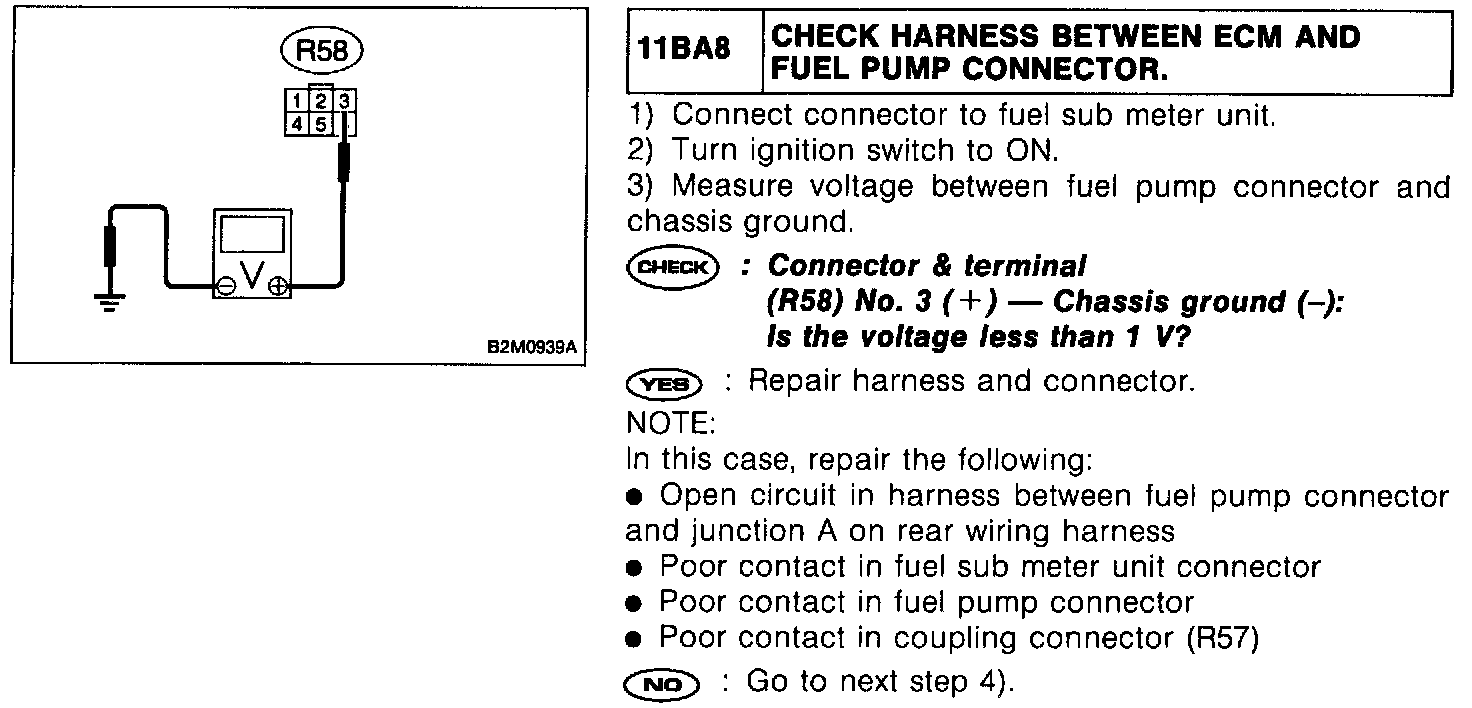

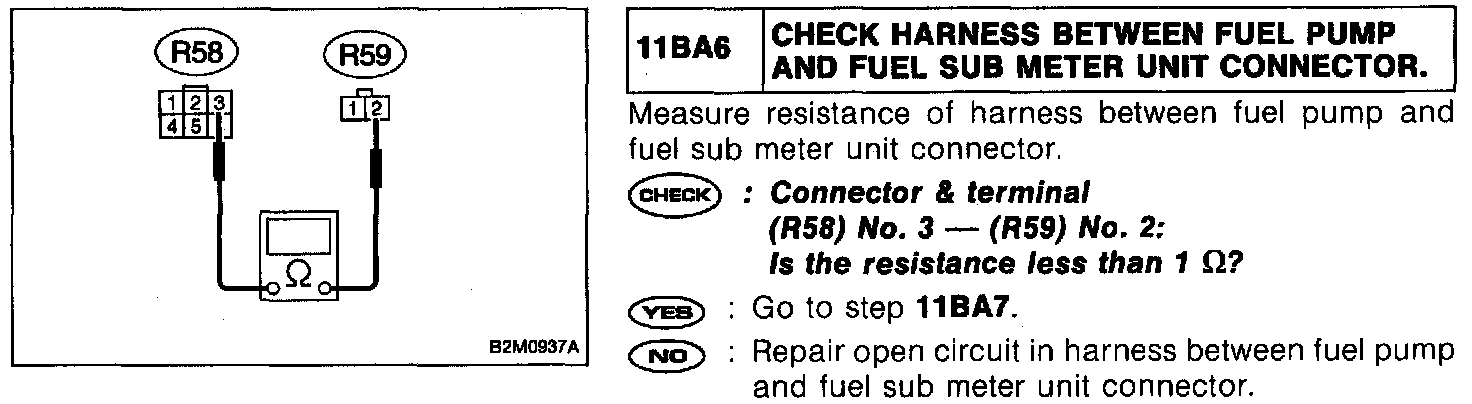

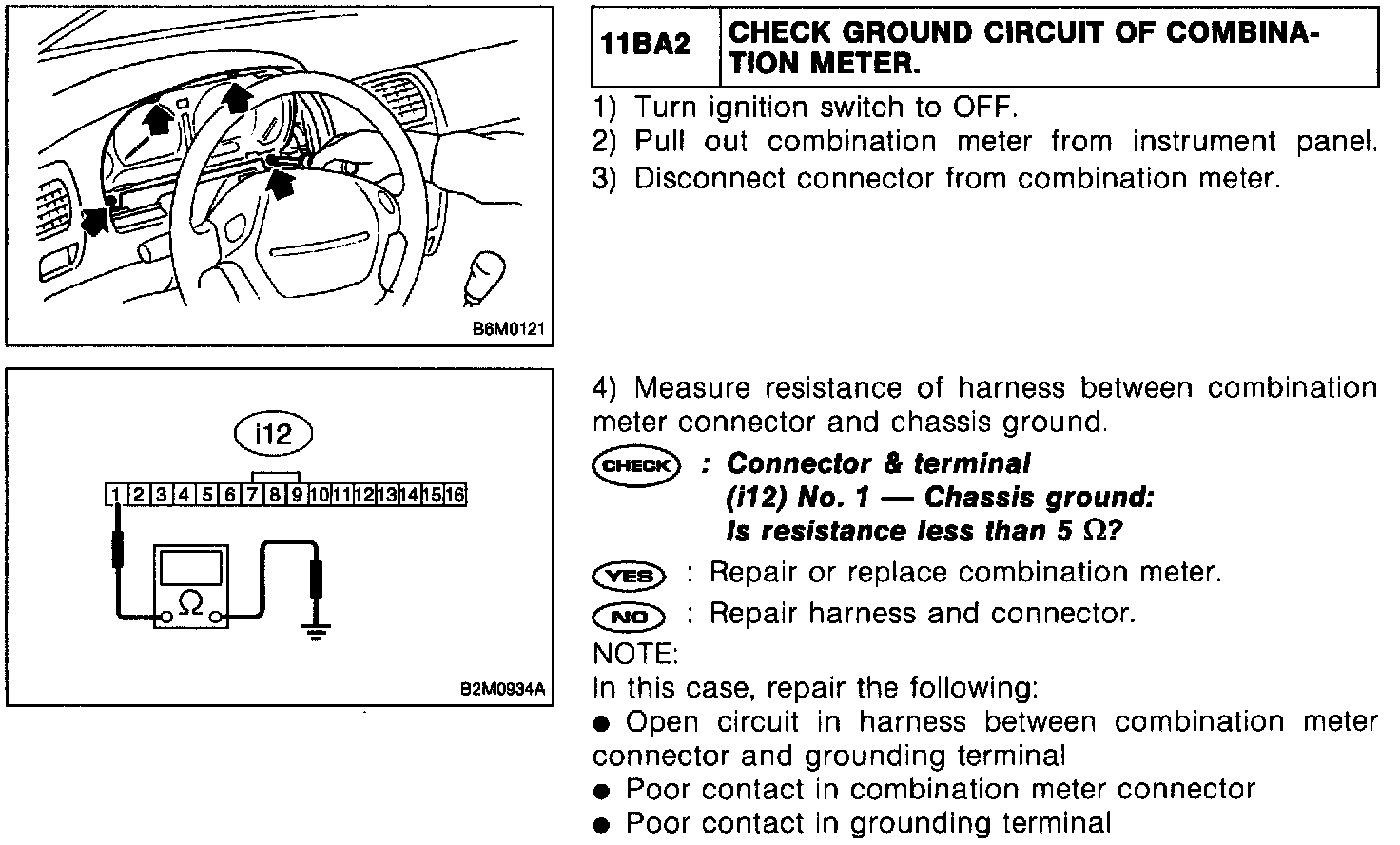

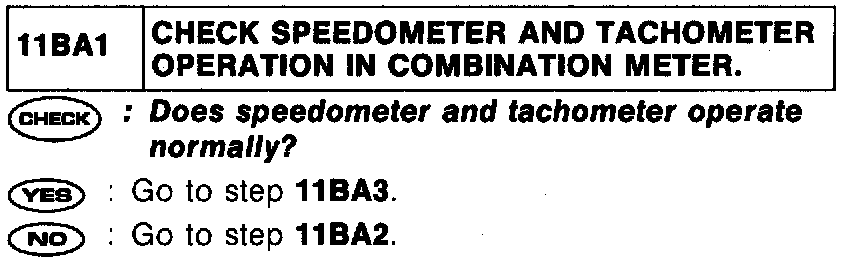

PROCEDURES (RHD)
