P0461

DTC P0461: FUEL LEVEL SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM

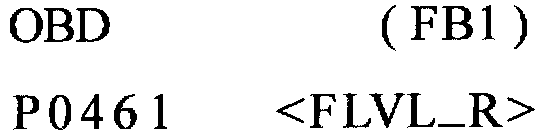

SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION
- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES

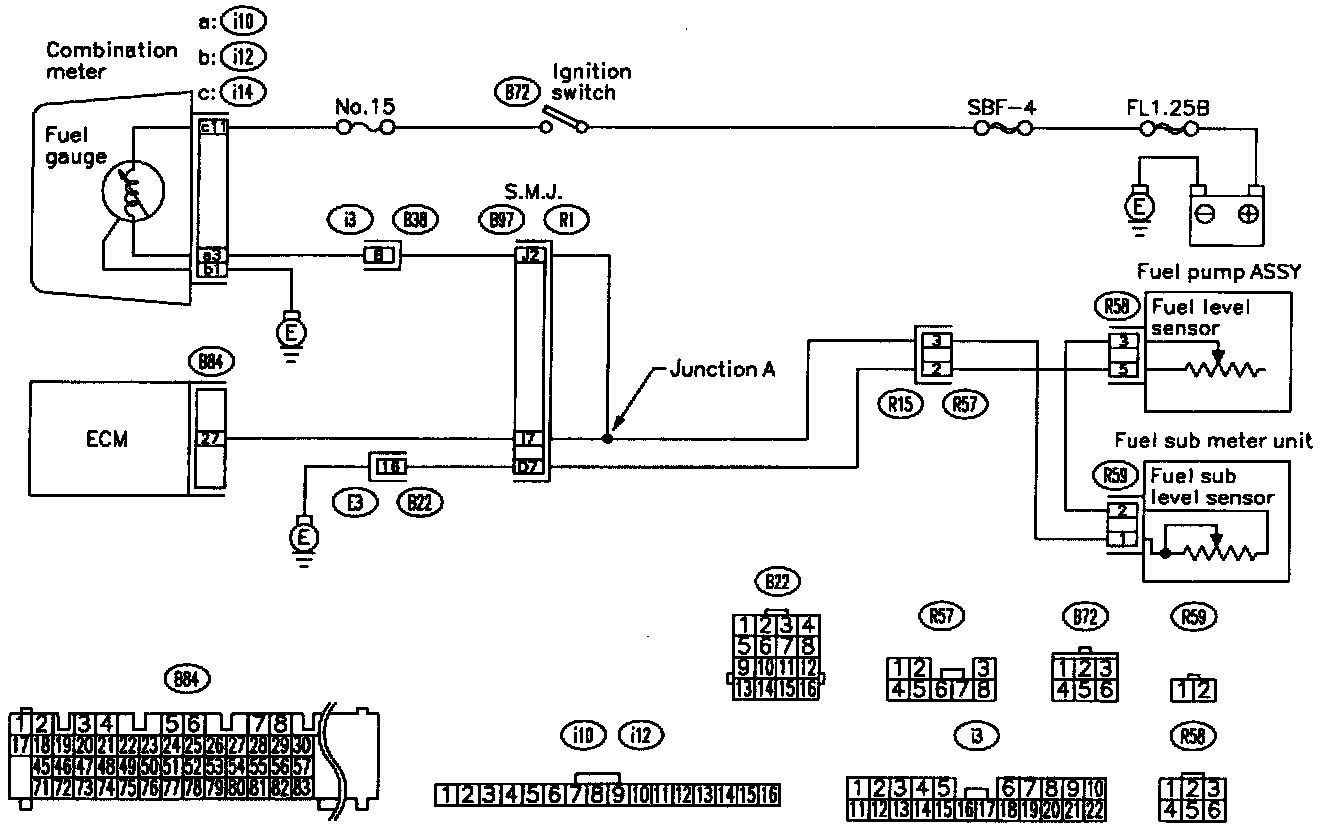

WIRING DIAGRAM (LHD)





WIRING DIAGRAM (RHD)

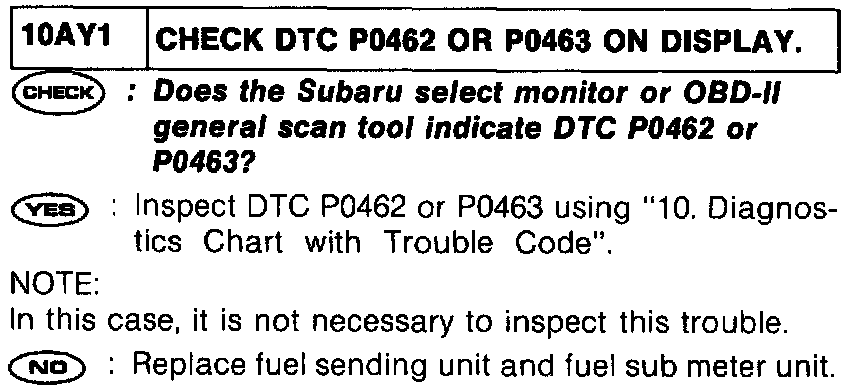

PROCEDURES (LHD)

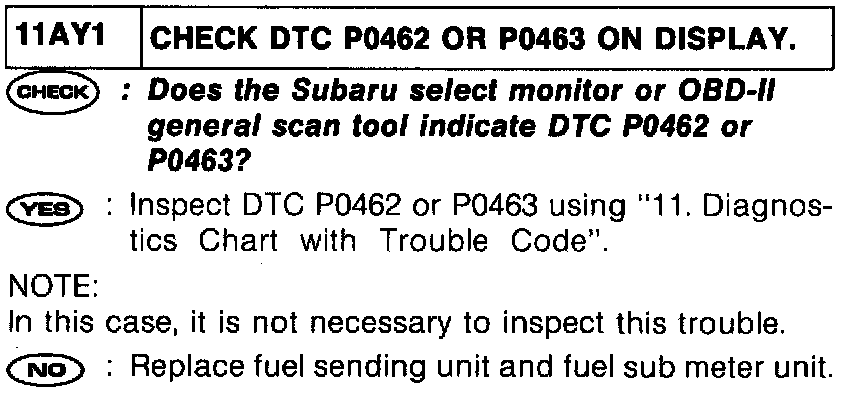

PROCEDURES (RHD)
