P0453

DTC P0453: EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR HIGH INPUT





SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

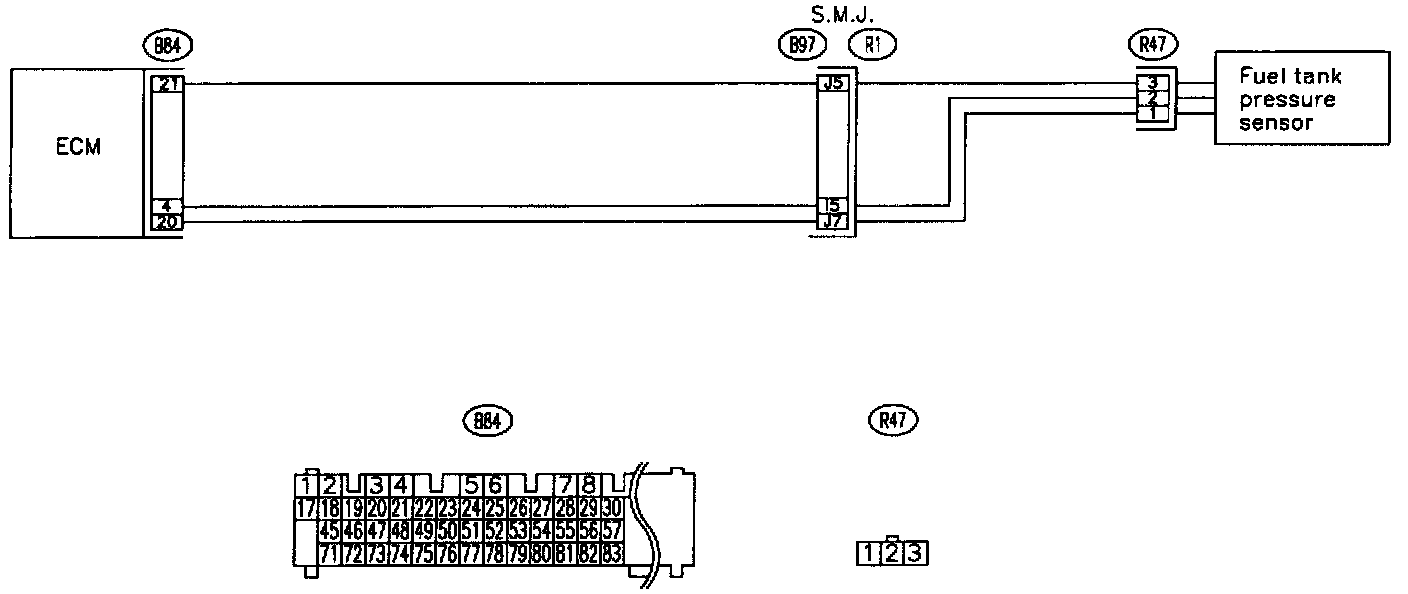

WIRING DIAGRAM (LHD)





WIRING DIAGRAM (RHD)

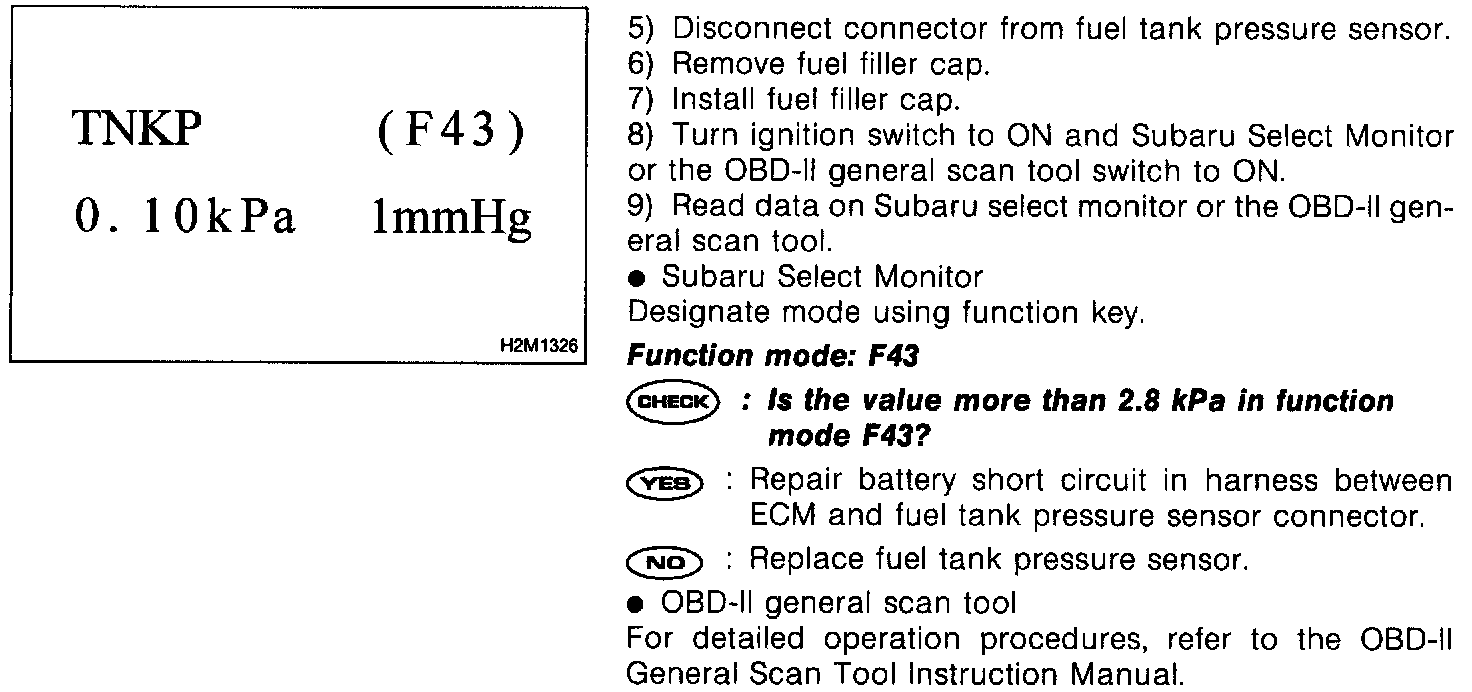

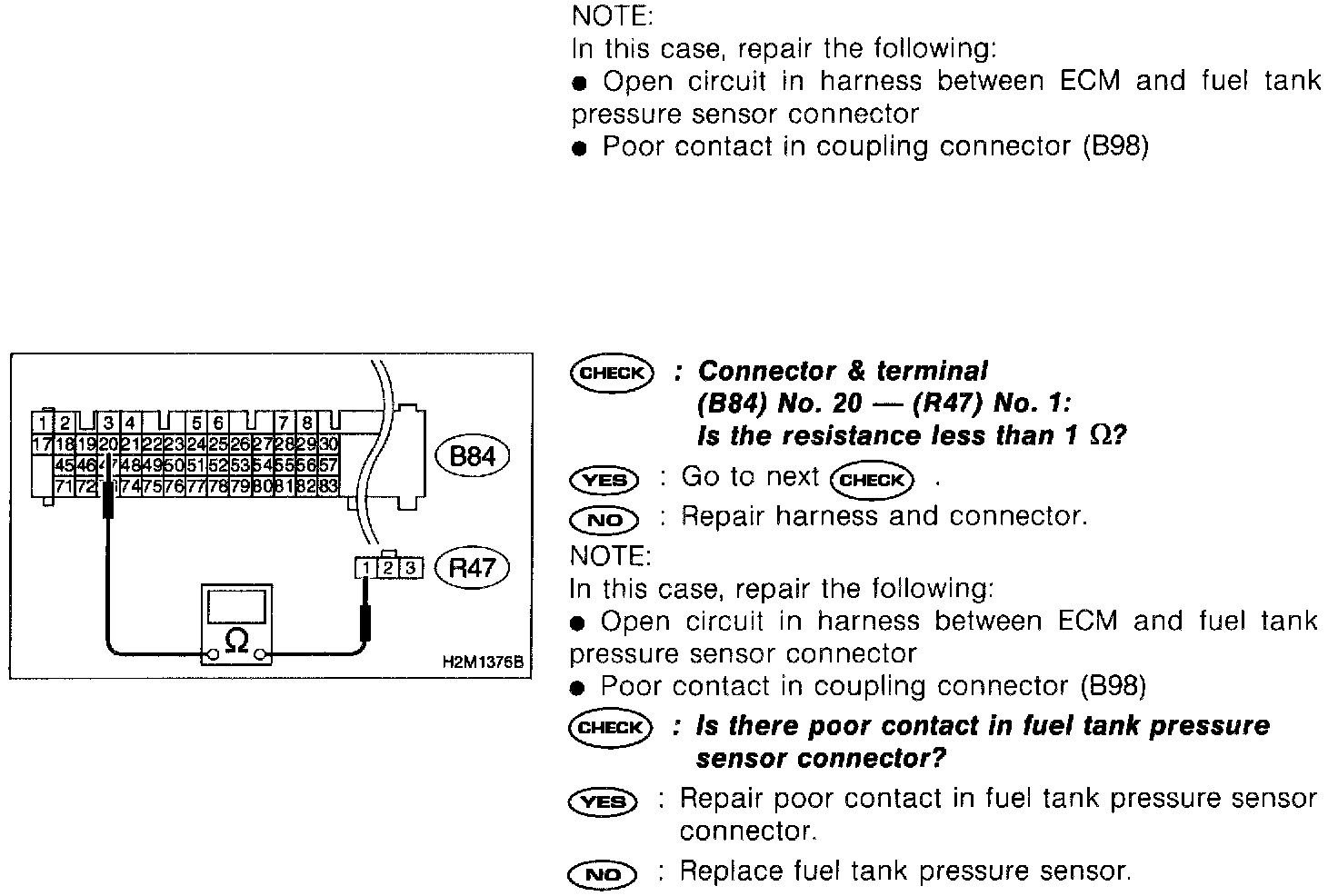

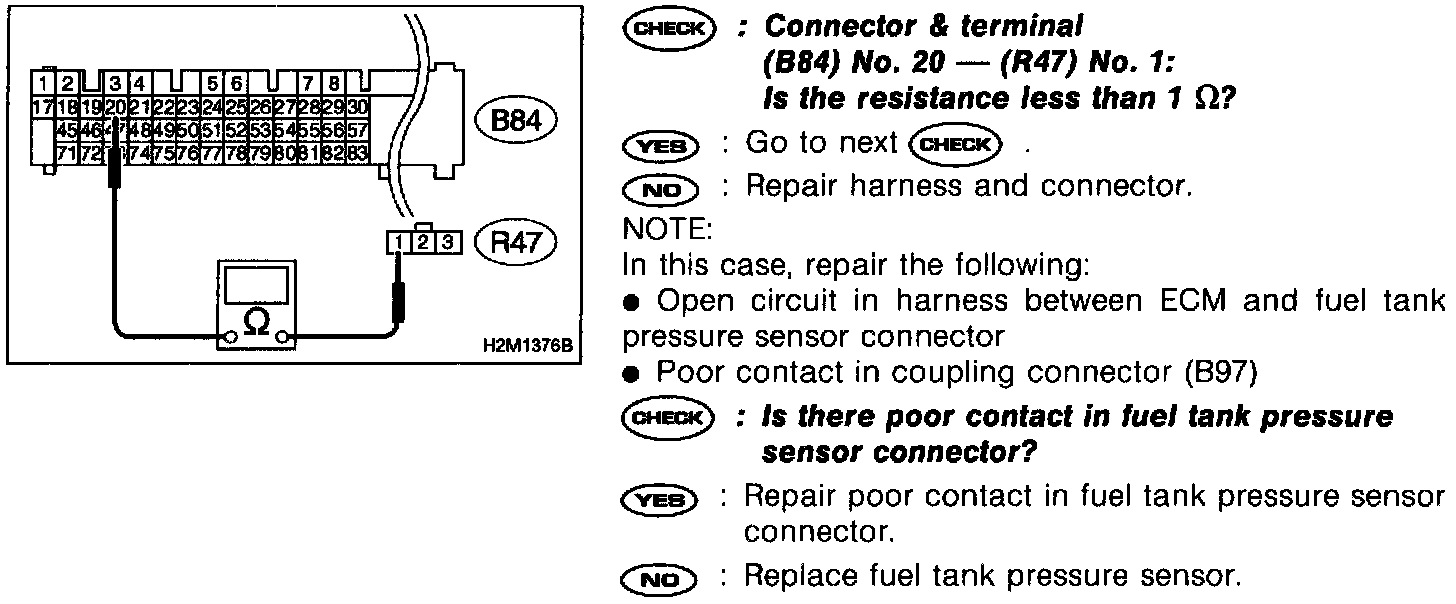

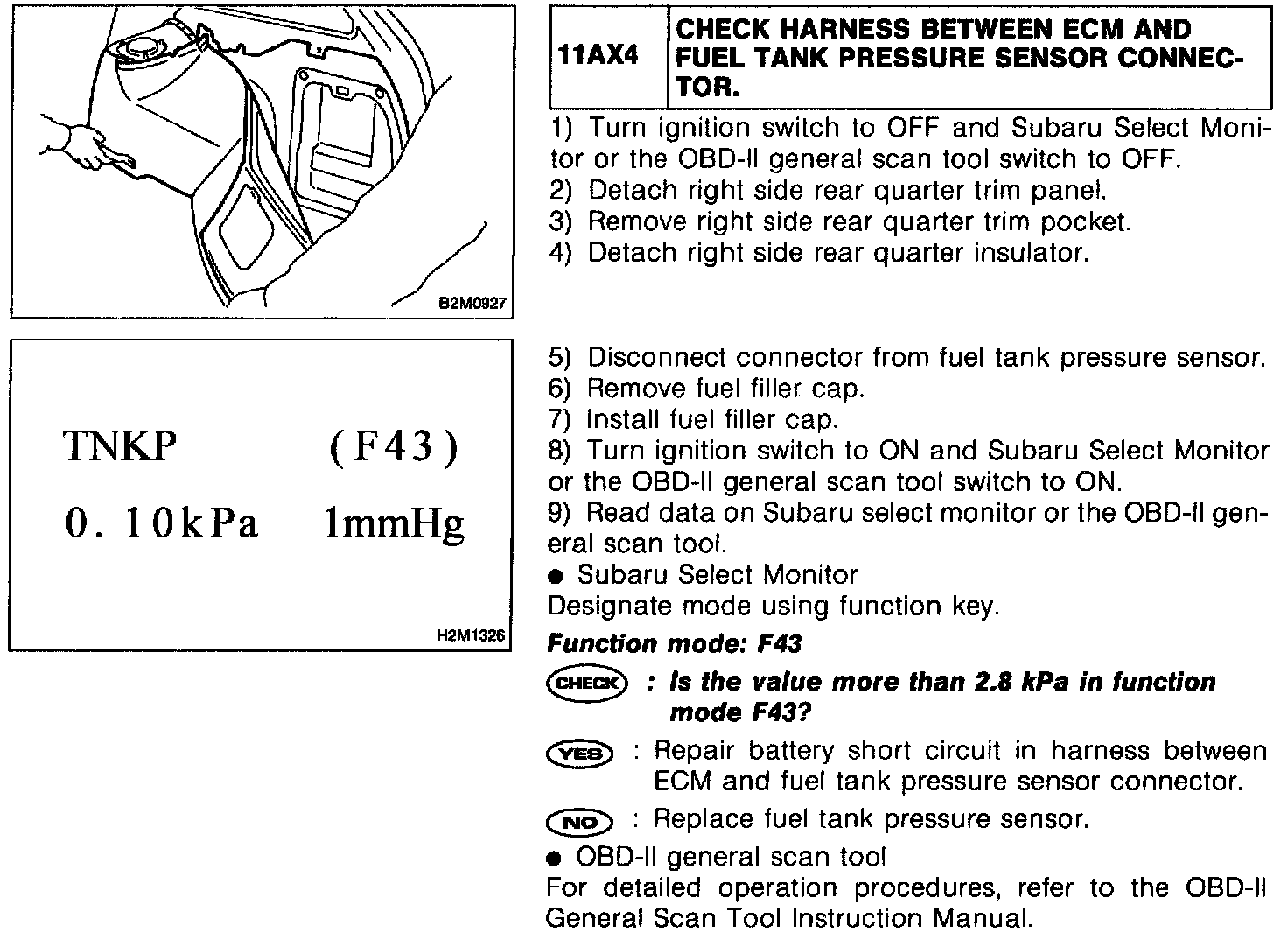

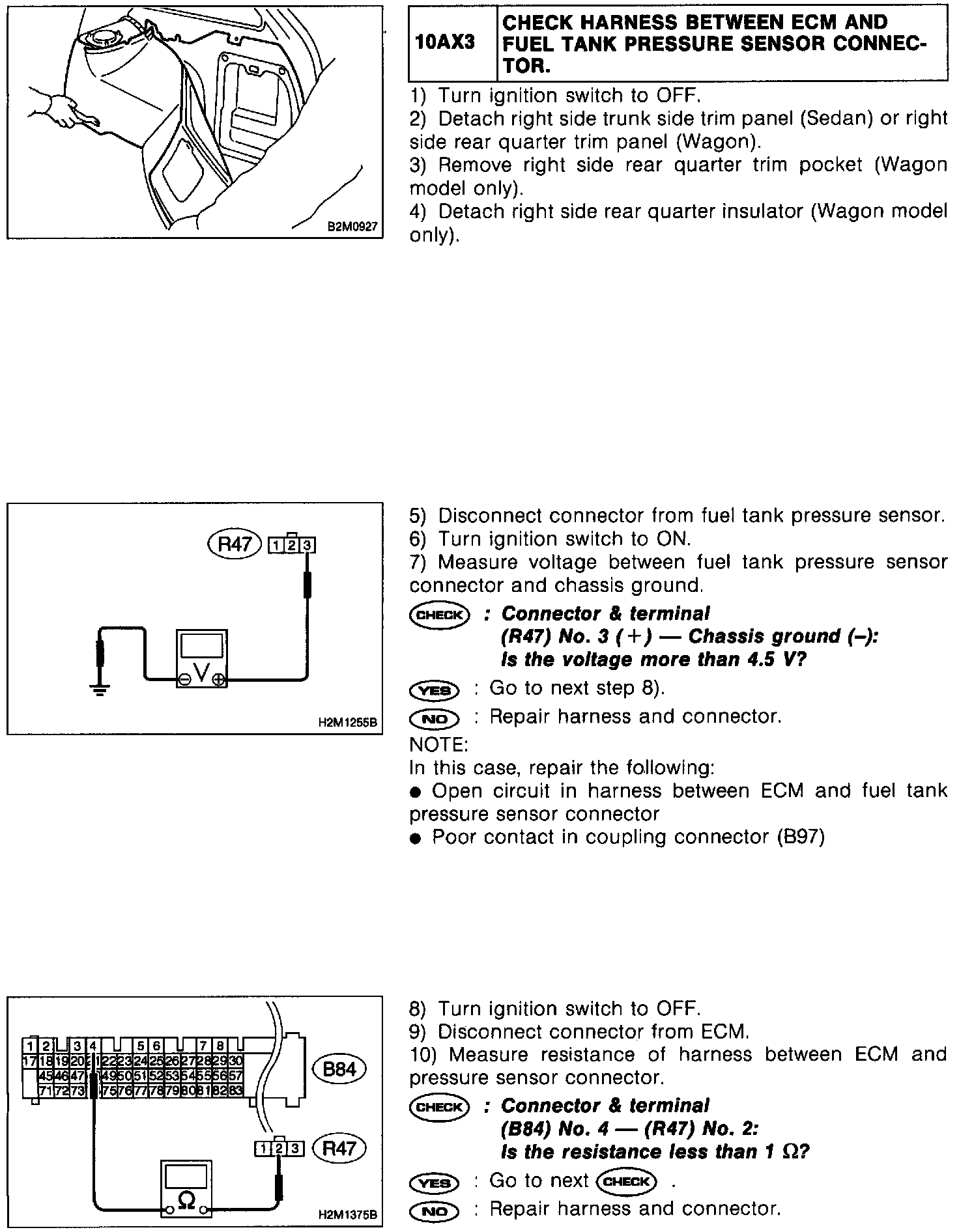

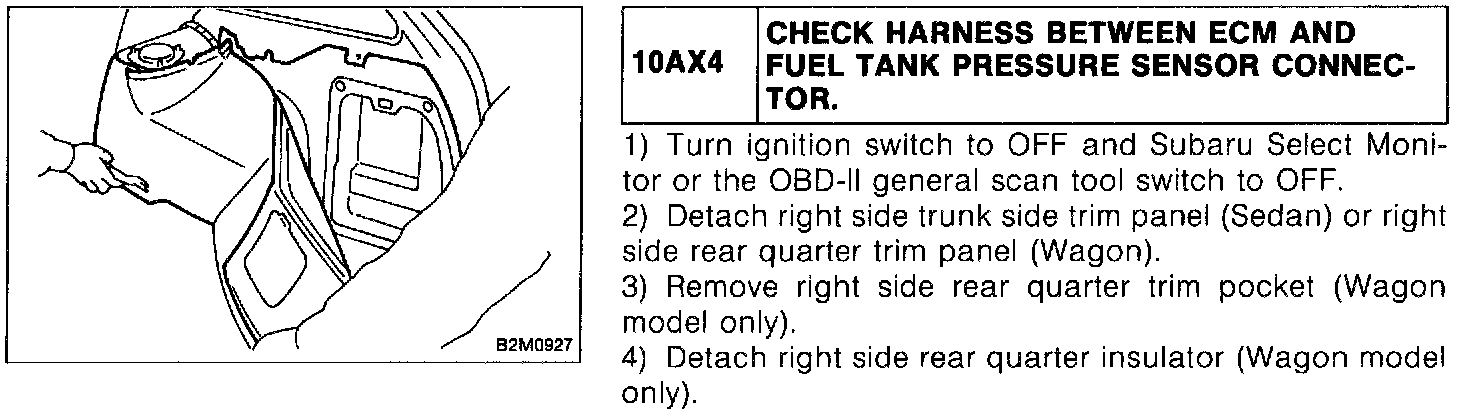

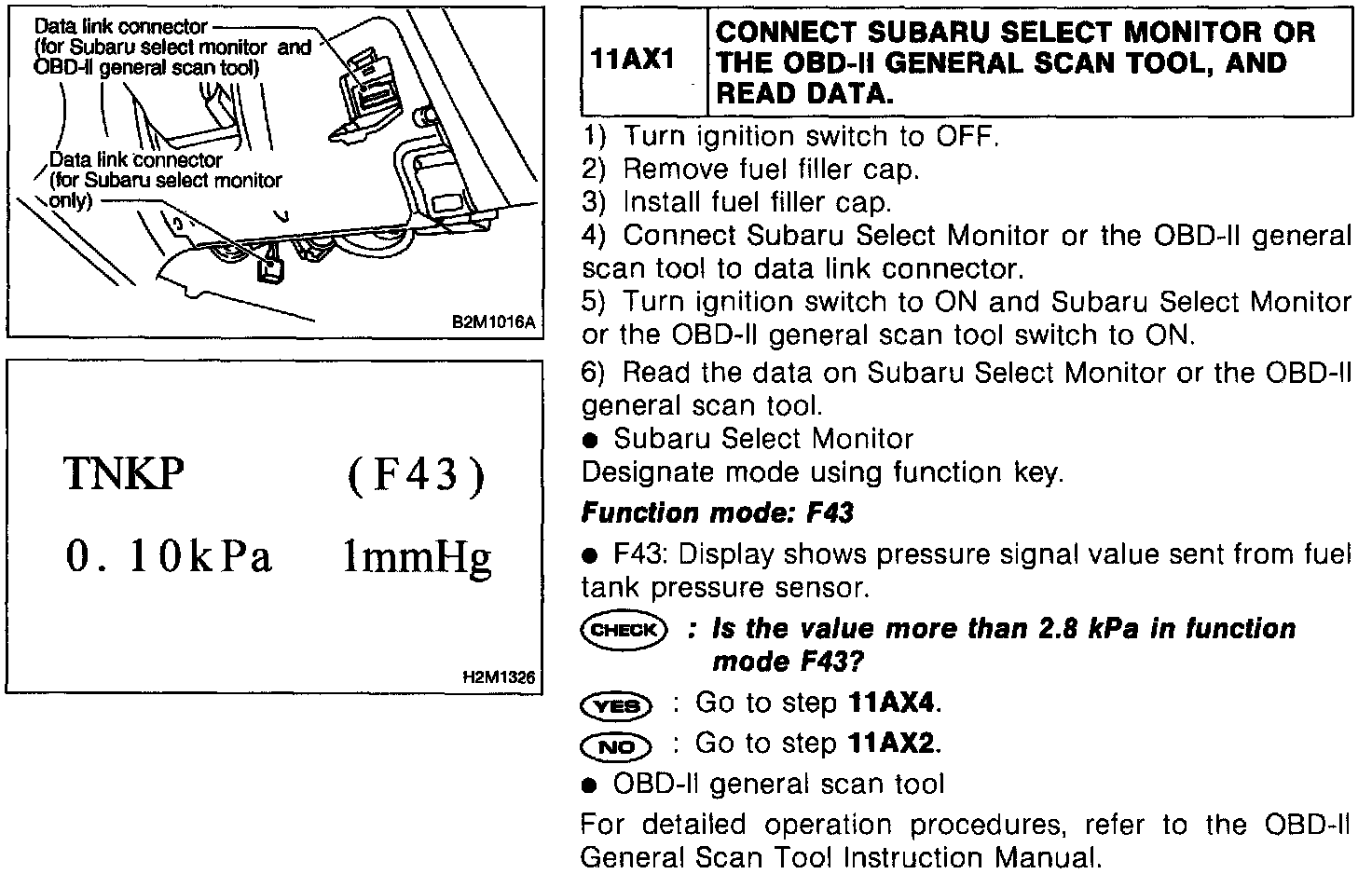

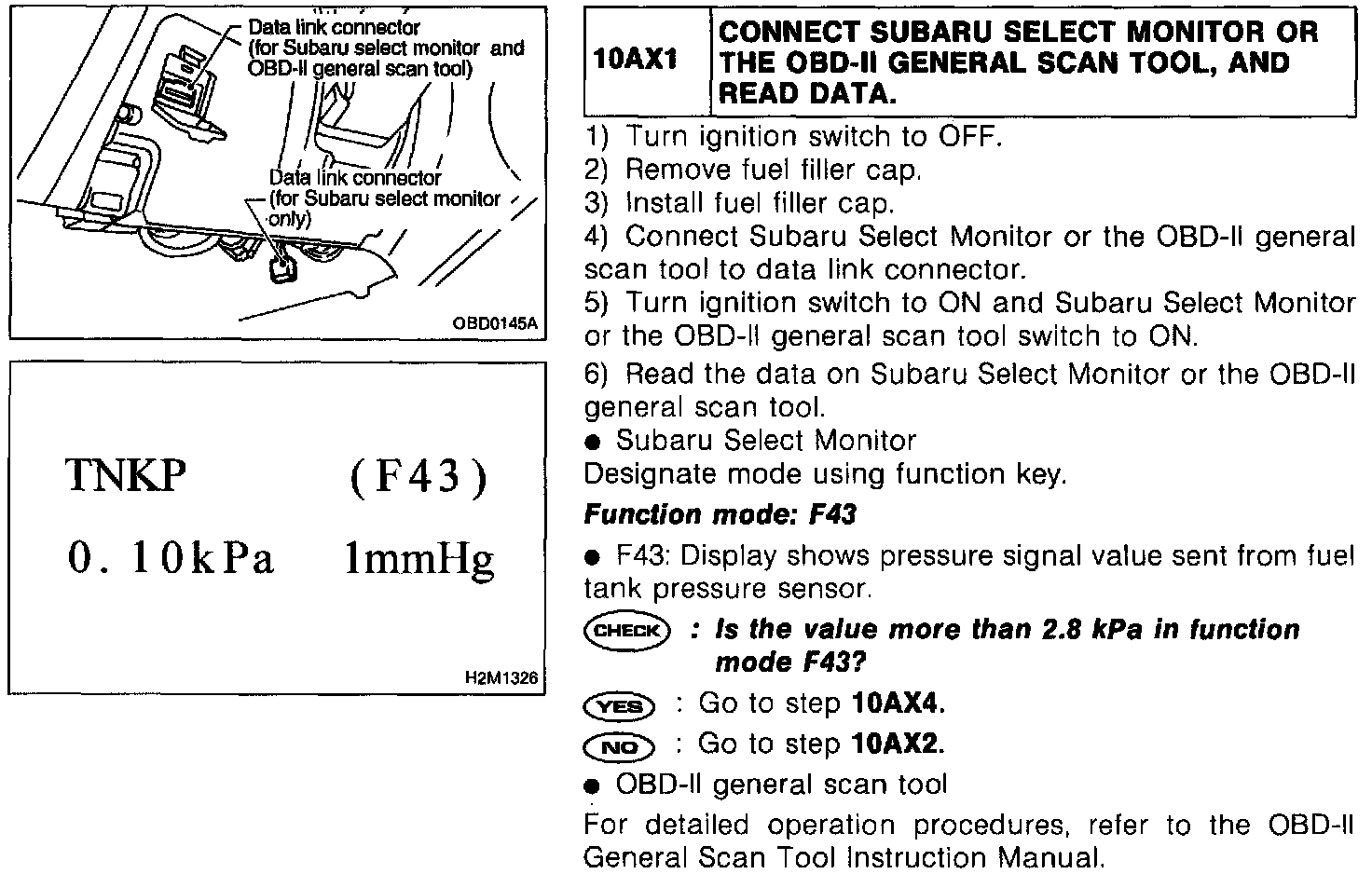

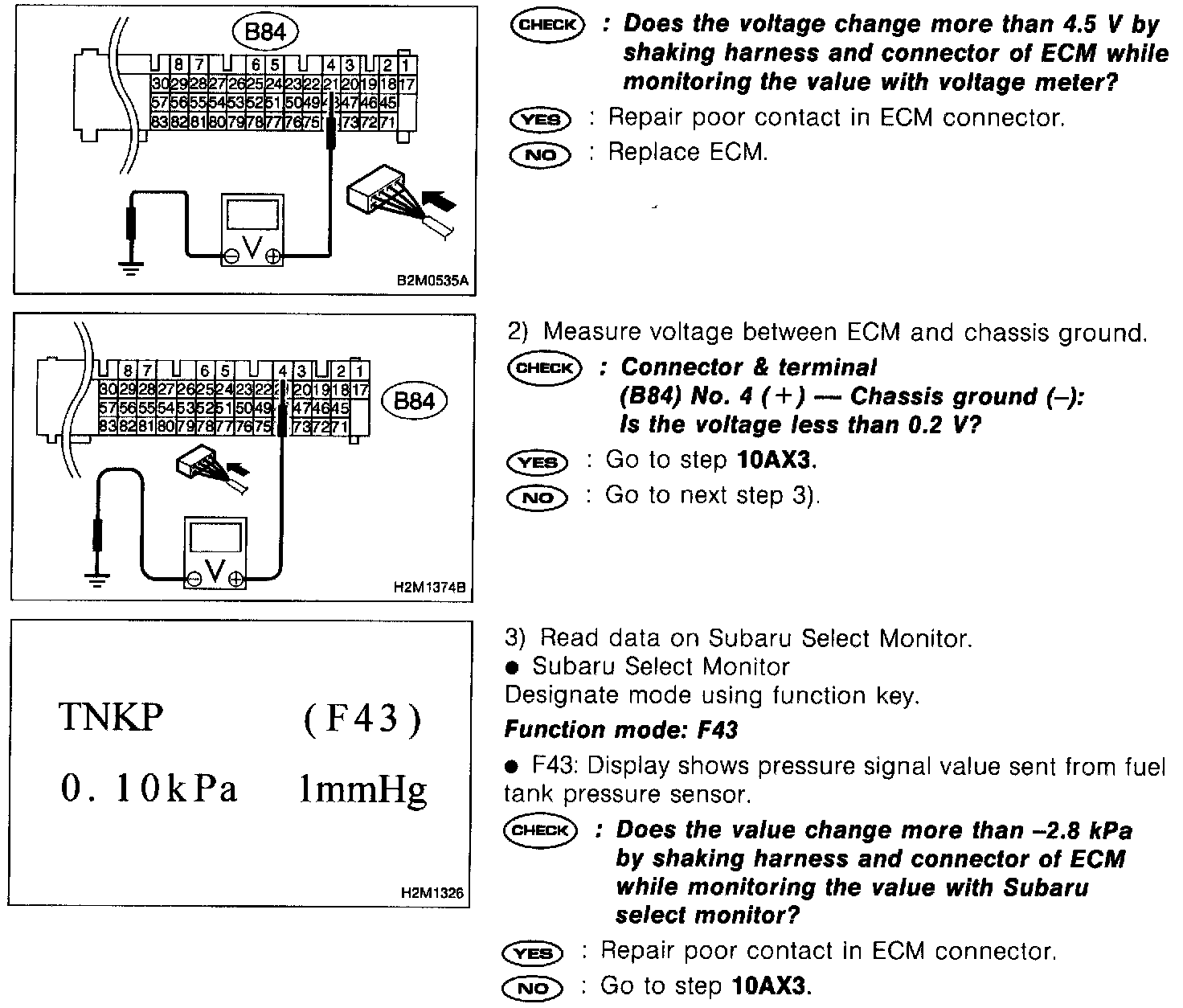

PROCEDURES (LHD)





















PROCEDURES (RHD)
