P0446

DTC P0446: EVAPORATIVE EMISSION CONTROL SYSTEM VENT CONTROL MALFUNCTION

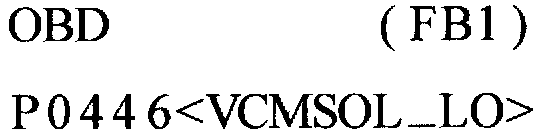

SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION:
- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

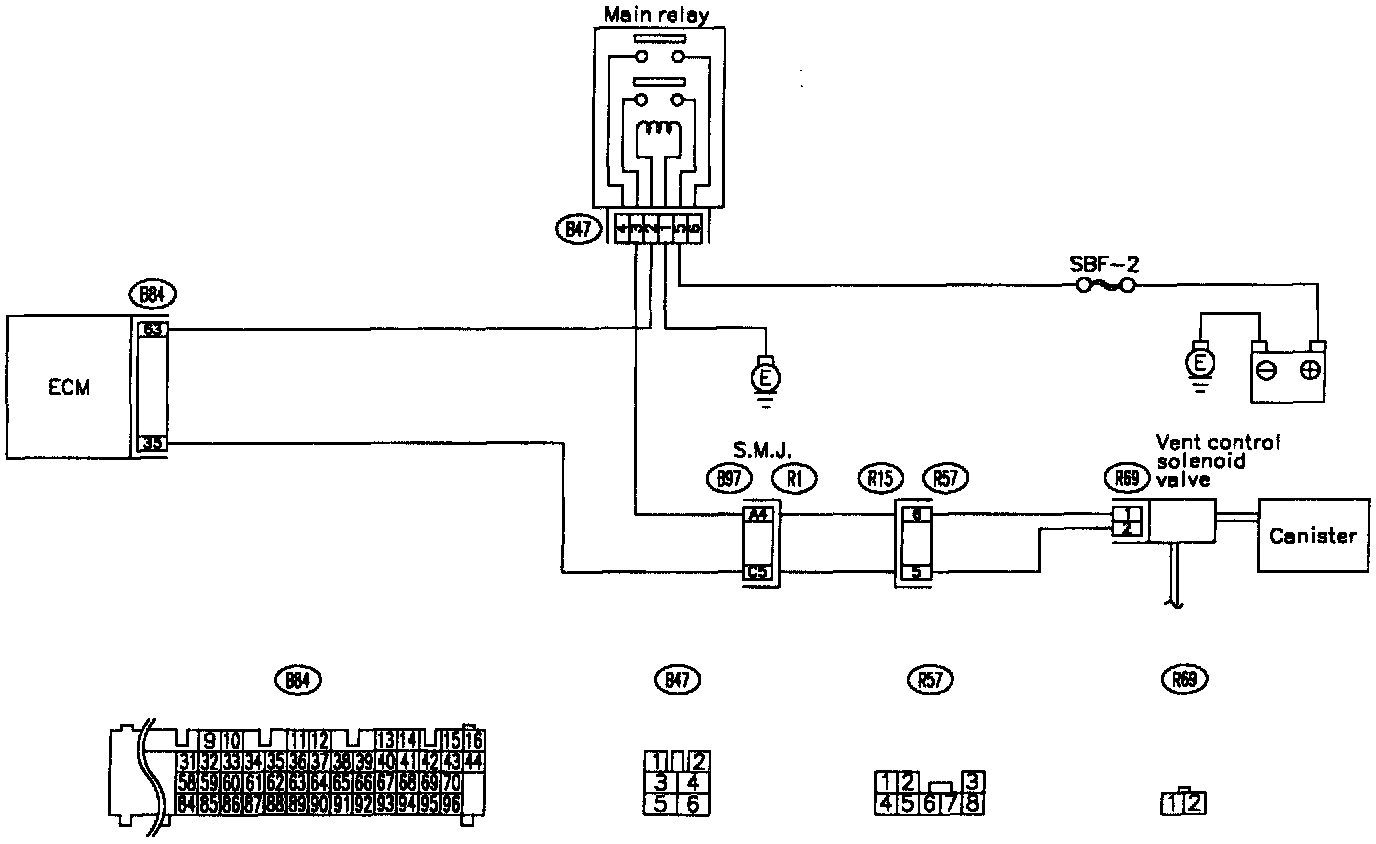

WIRING DIAGRAM (LHD)

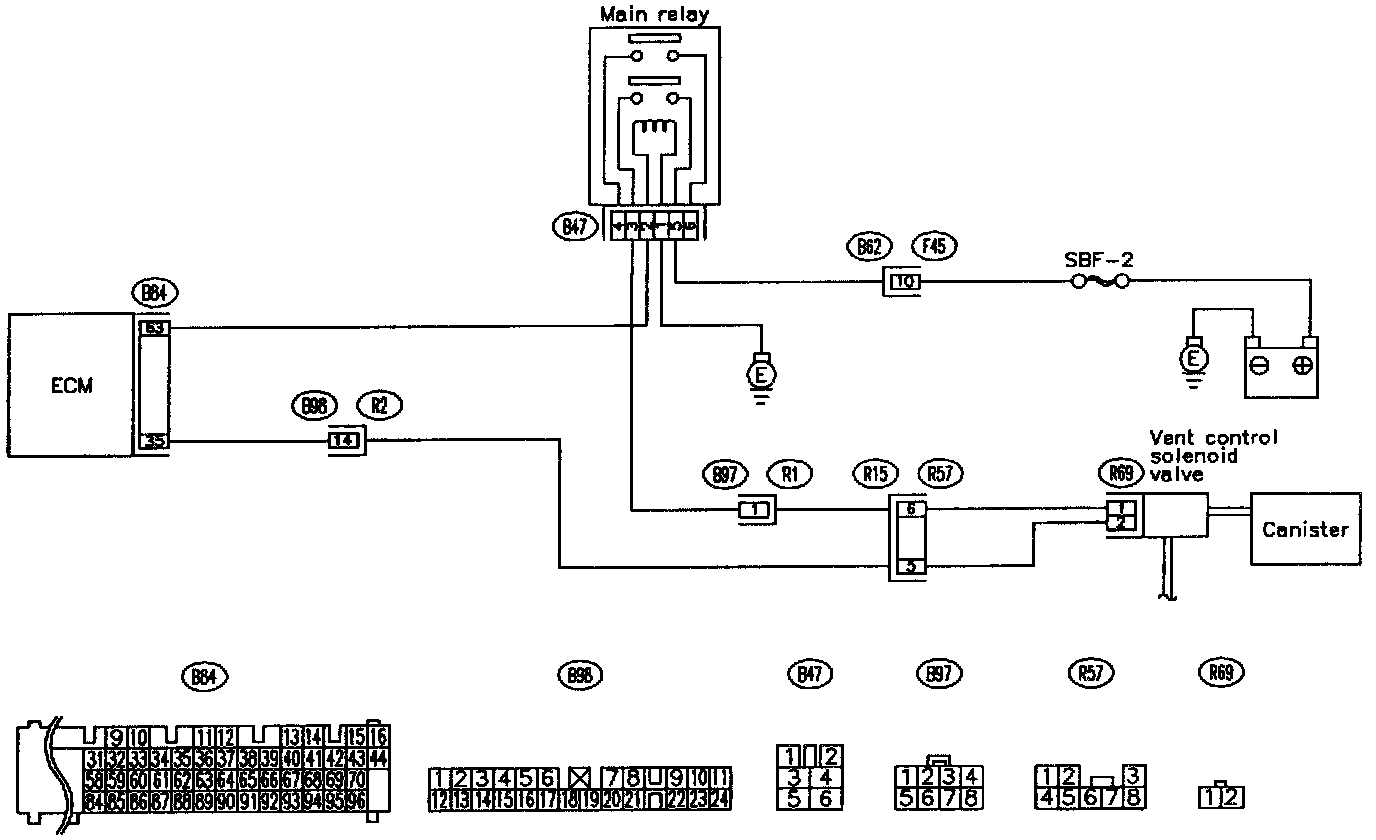

WIRING DIAGRAM (RHD)

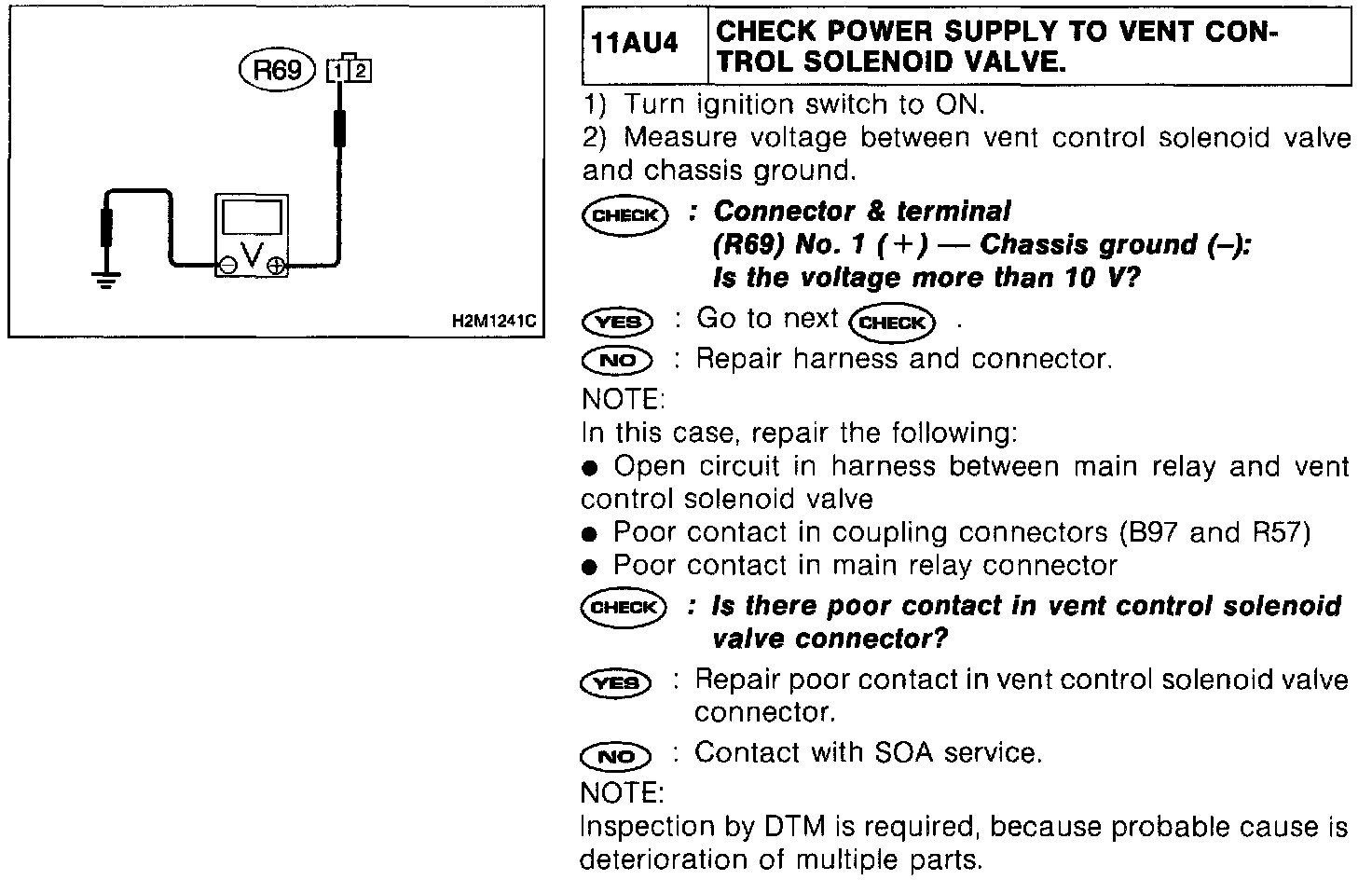

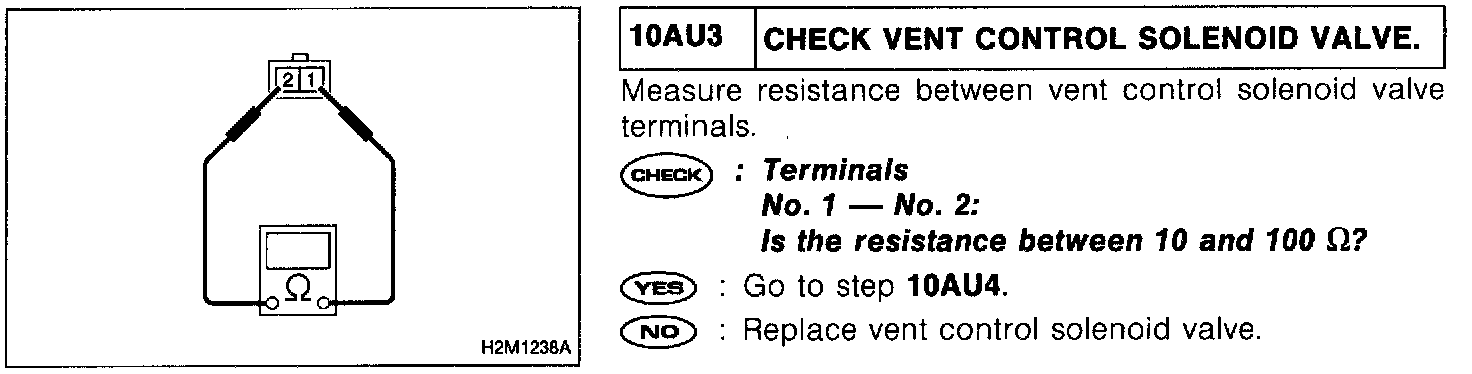

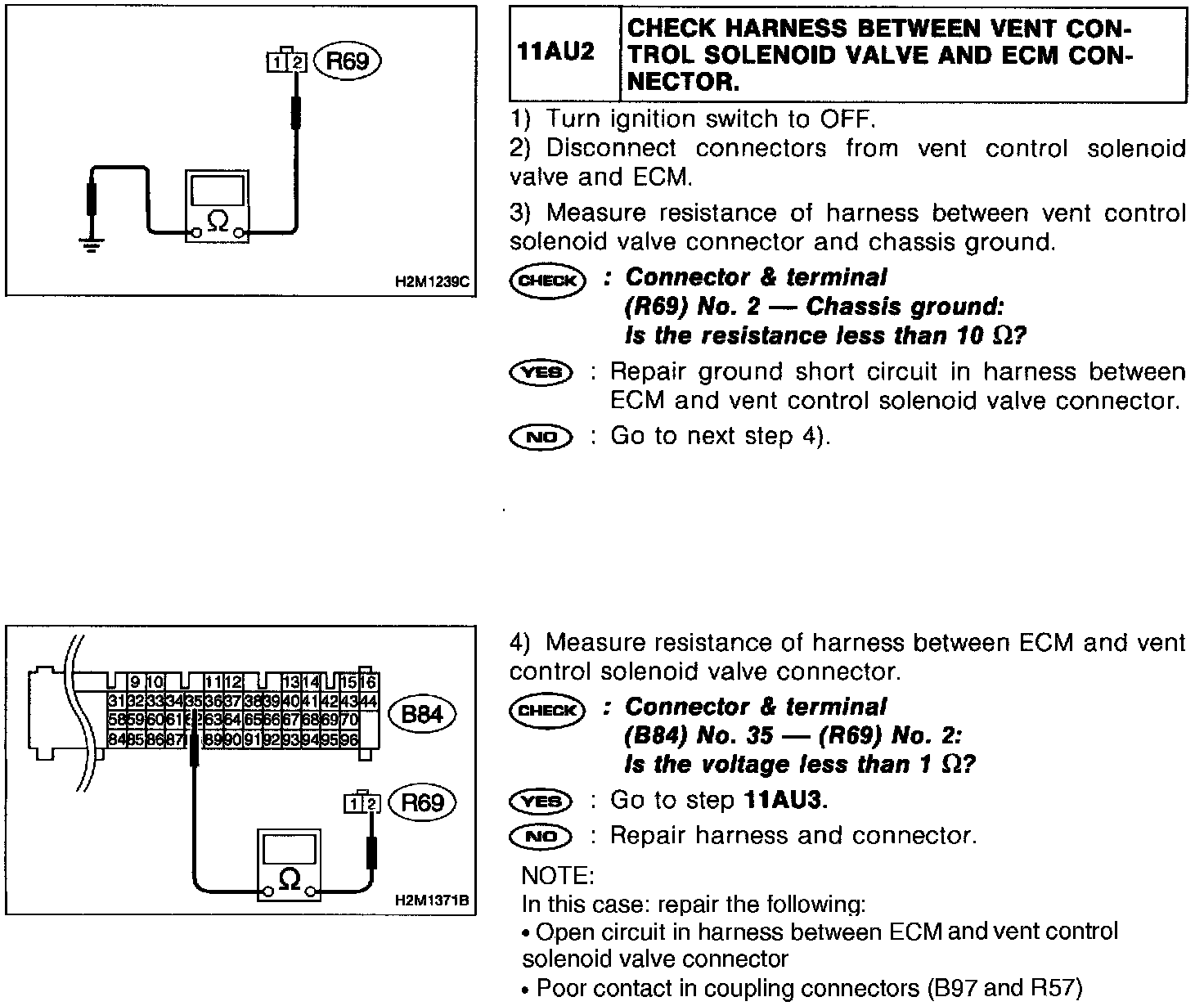

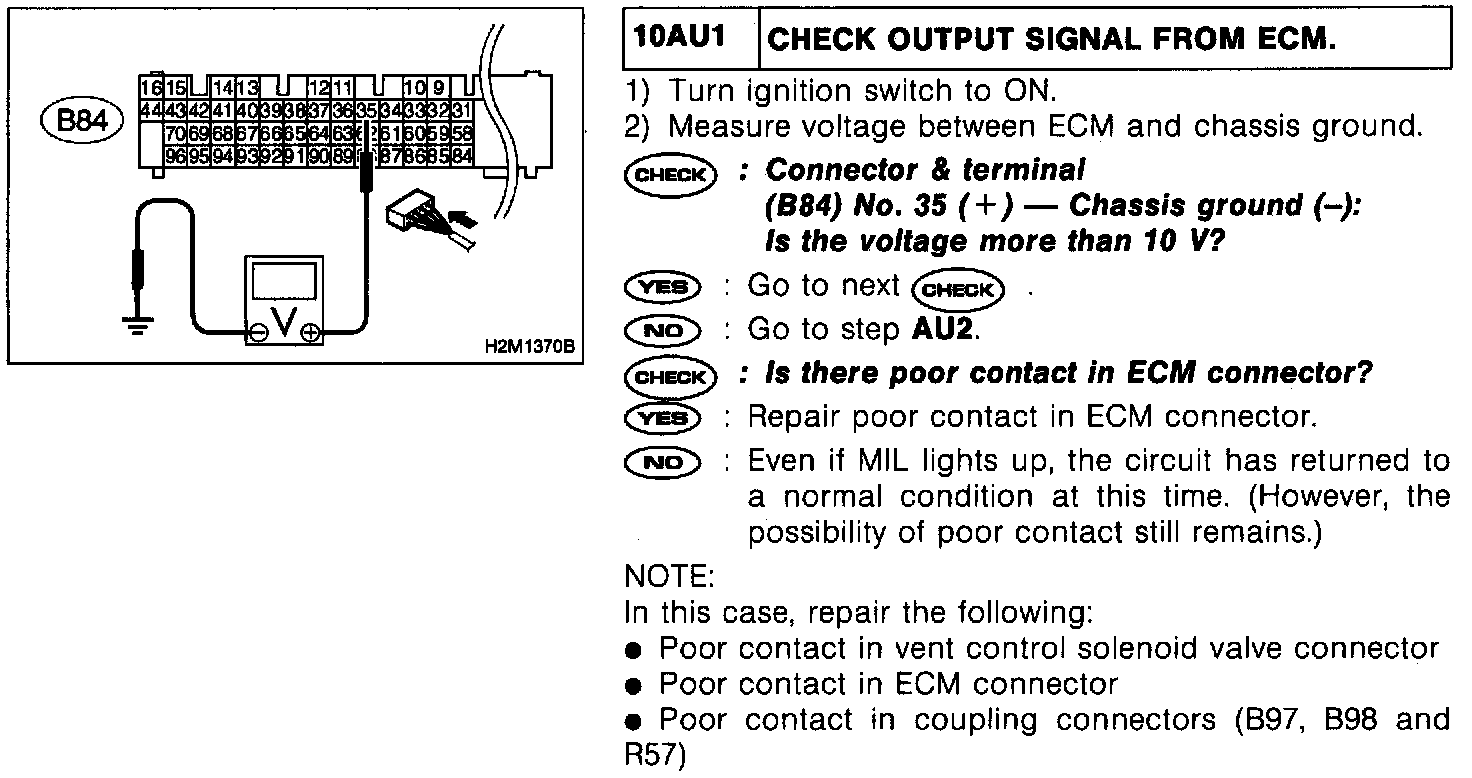

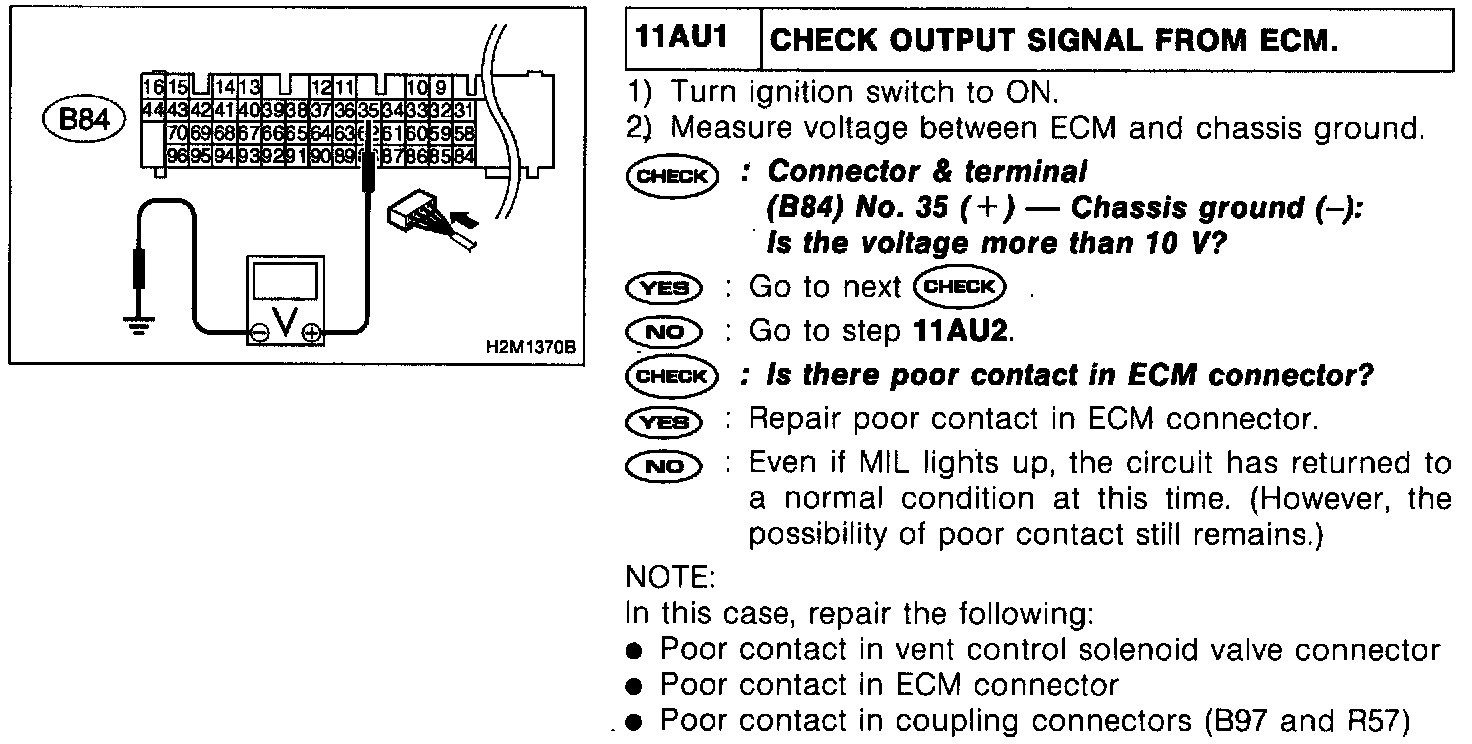

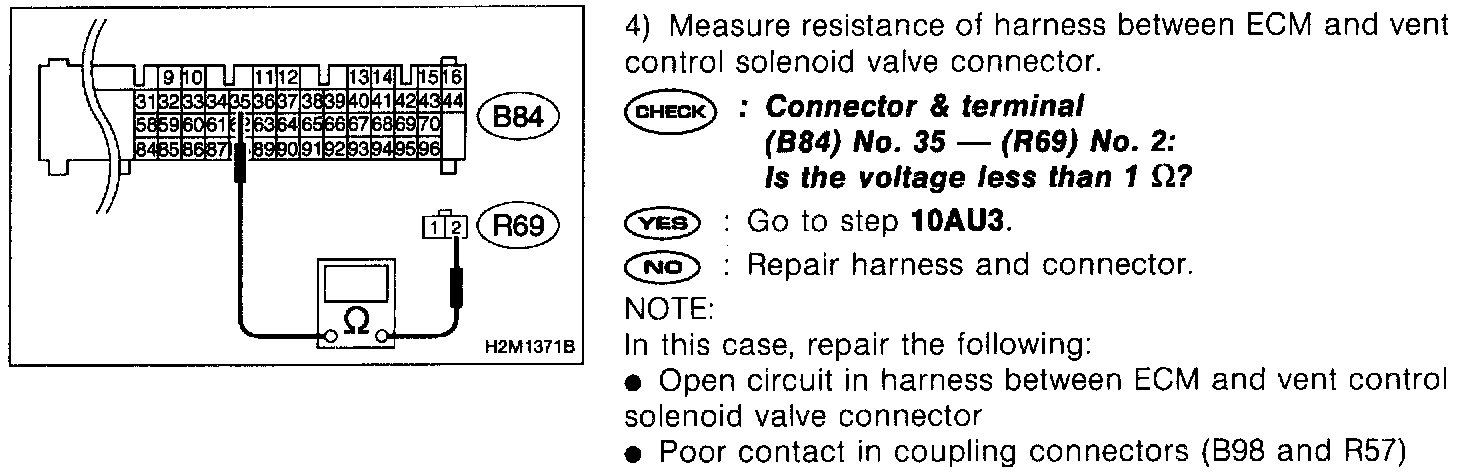

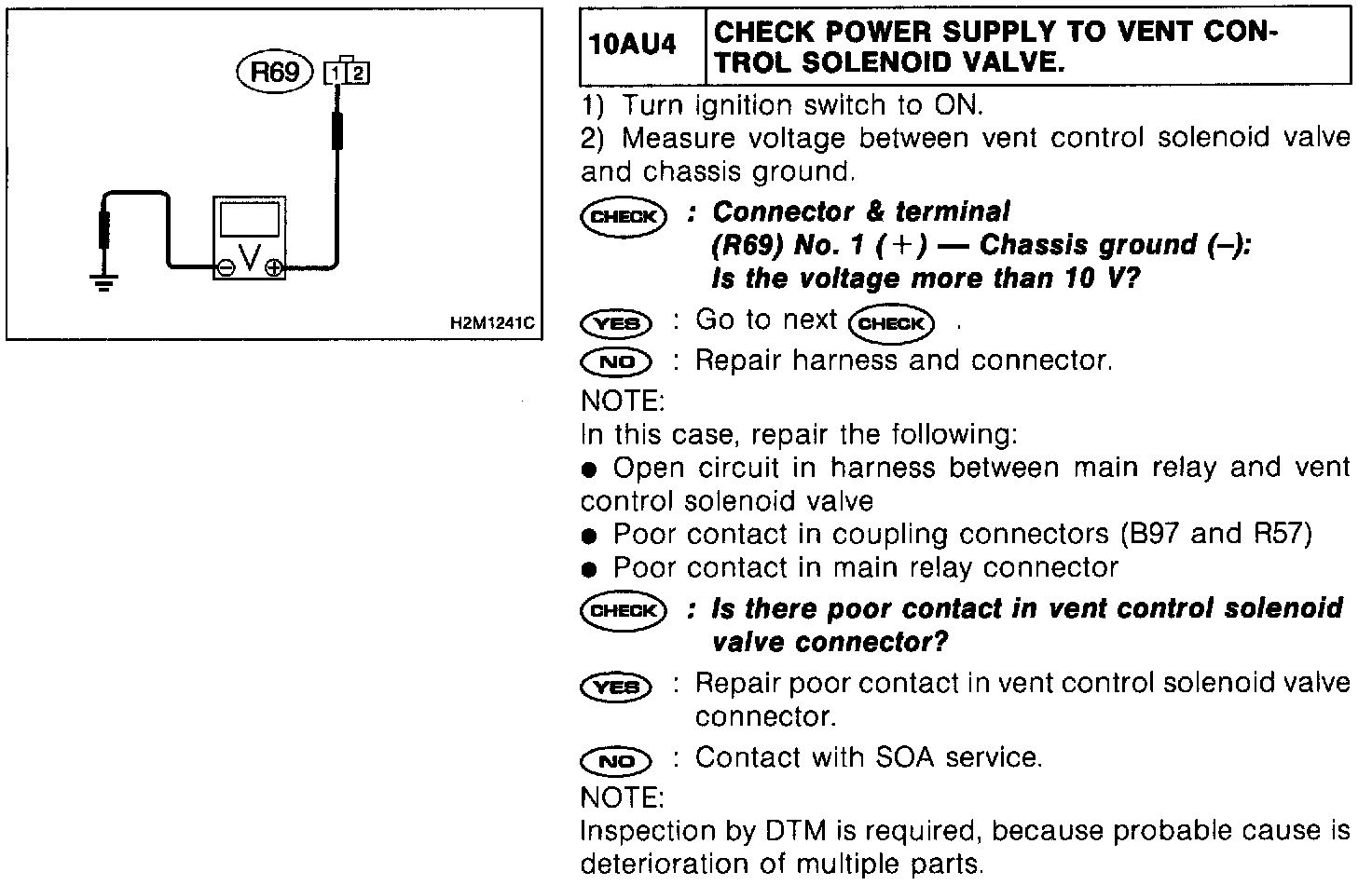

PROCEDURES (LHD)

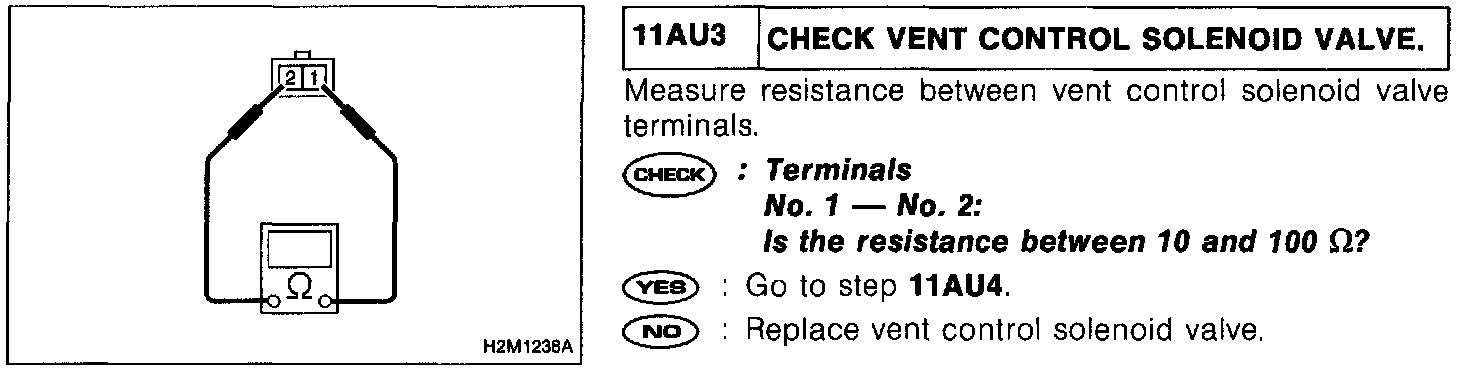

PROCEDURES (RHD)
