P0441

DTC PO441: EVAPORATIVE EMISSION CONTROL SYSTEM INCORRECT PURGE FLOW





SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION
- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

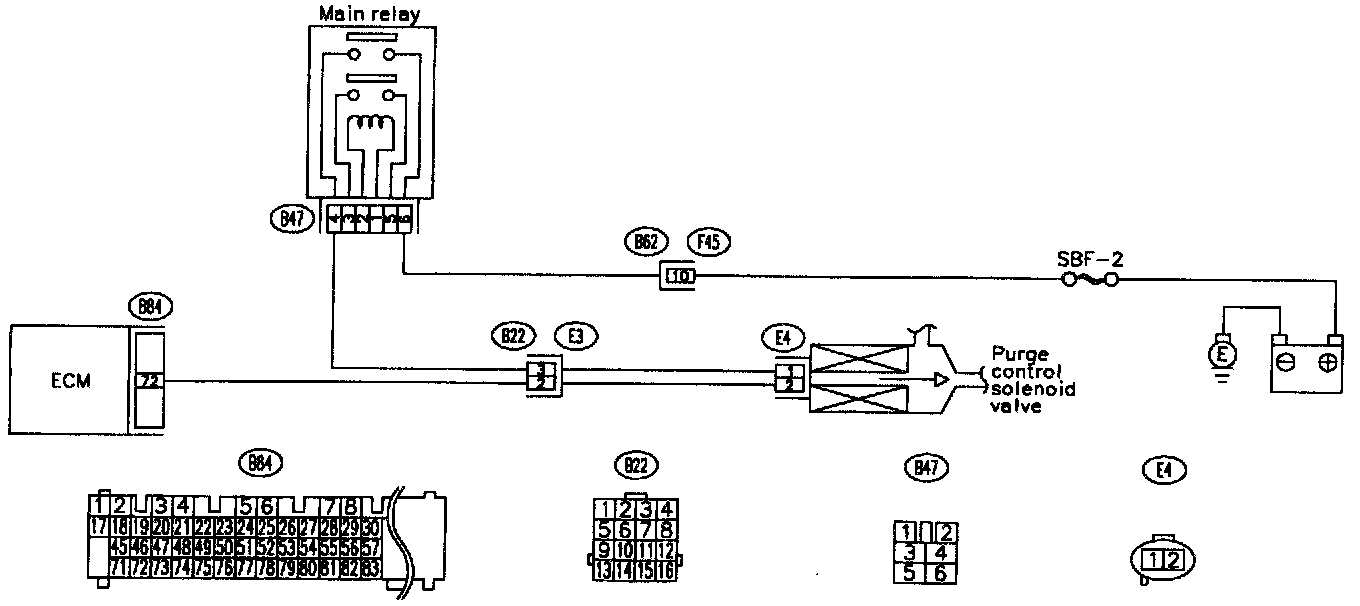

WIRING DIAGRAM (LHD)

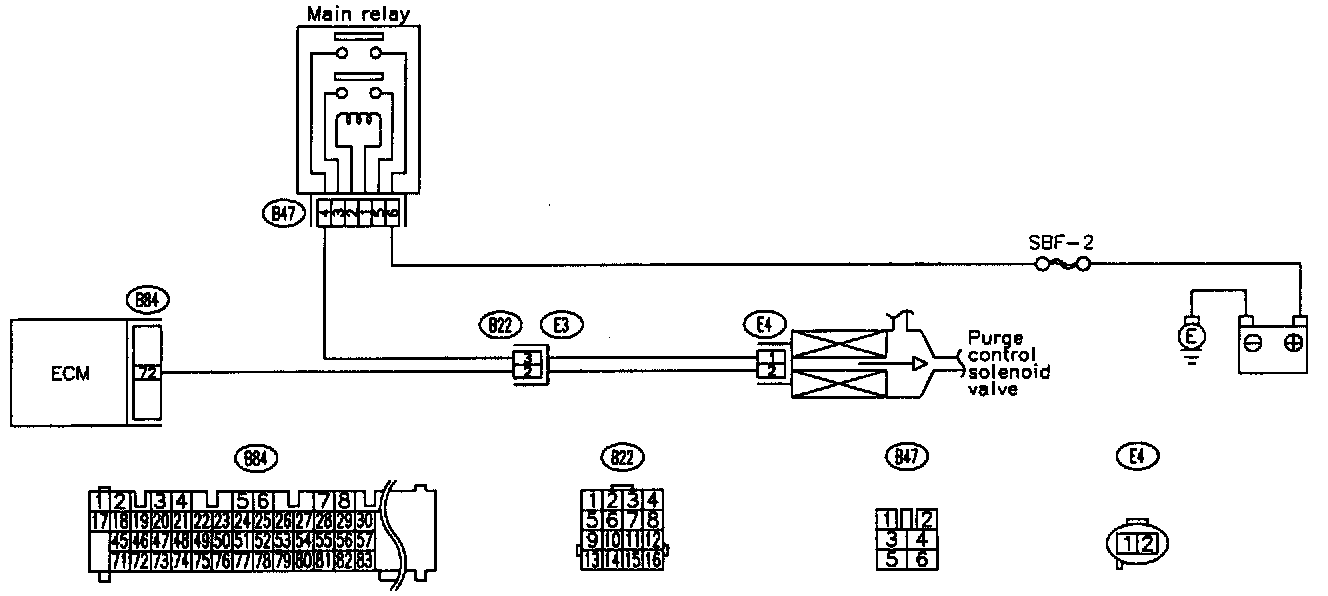

WIRING DIAGRAM (RHD)

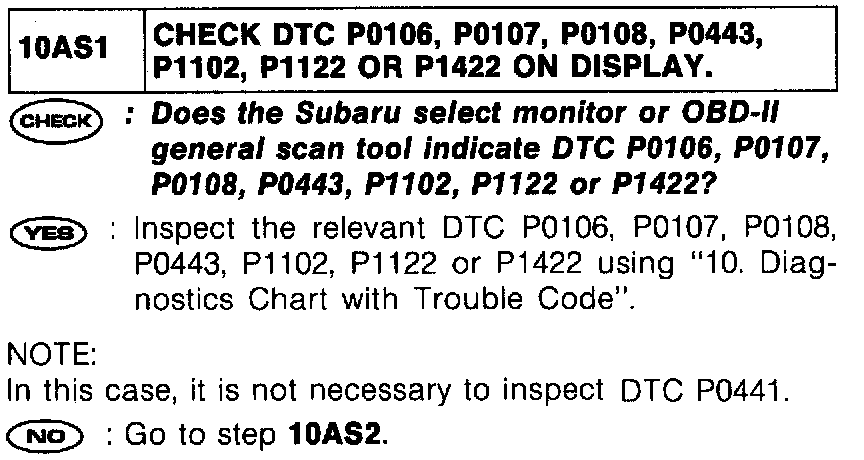

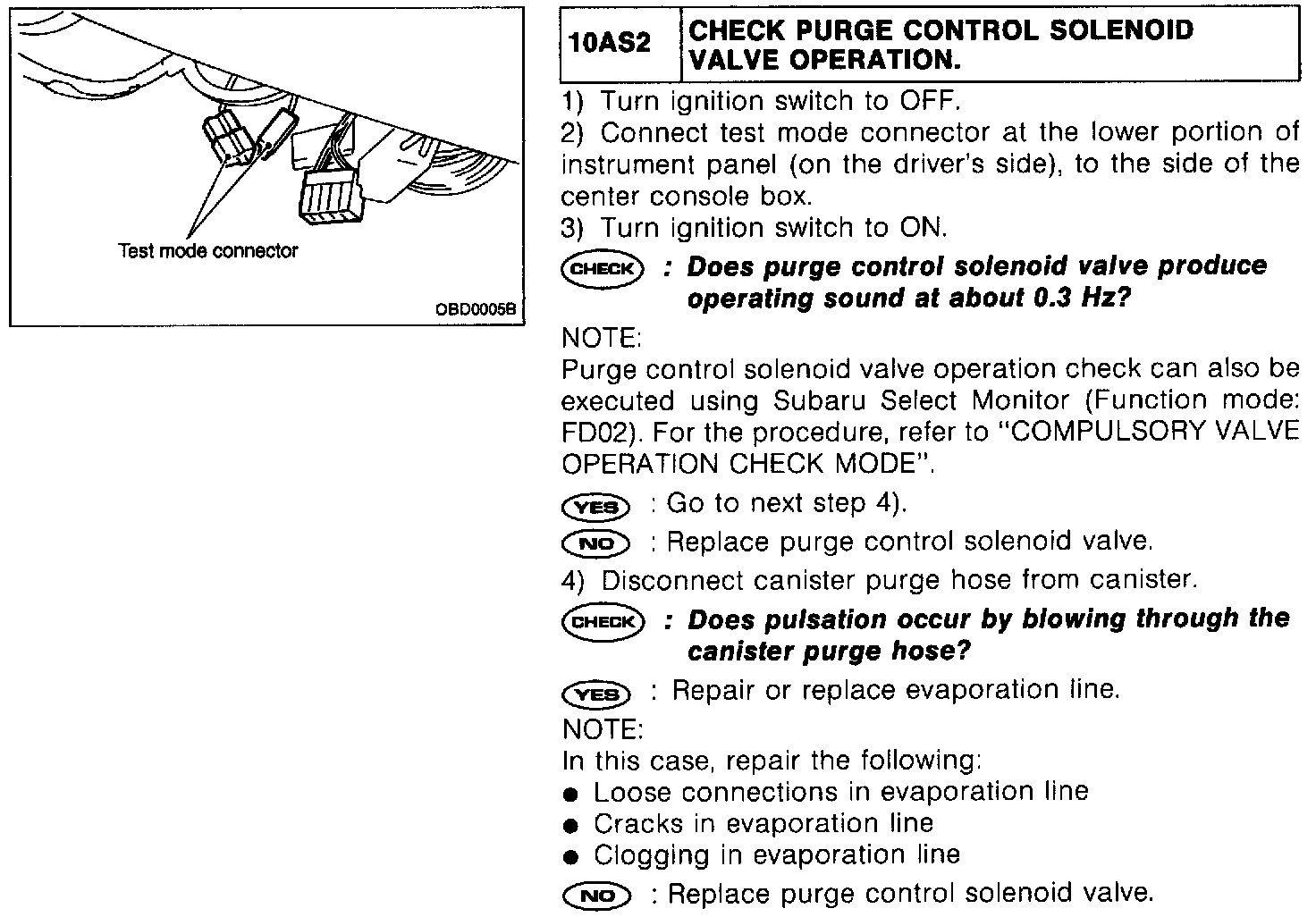

PROCEDURES
