P0403

DTC P0403: EXHAUST GAS RECIRCULATION CIRCUIT LOW INPUT





SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION:
- Two consecutive trips with fault

TROUBLE SYMPTOM:
- Poor driving performance on low engine speed

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

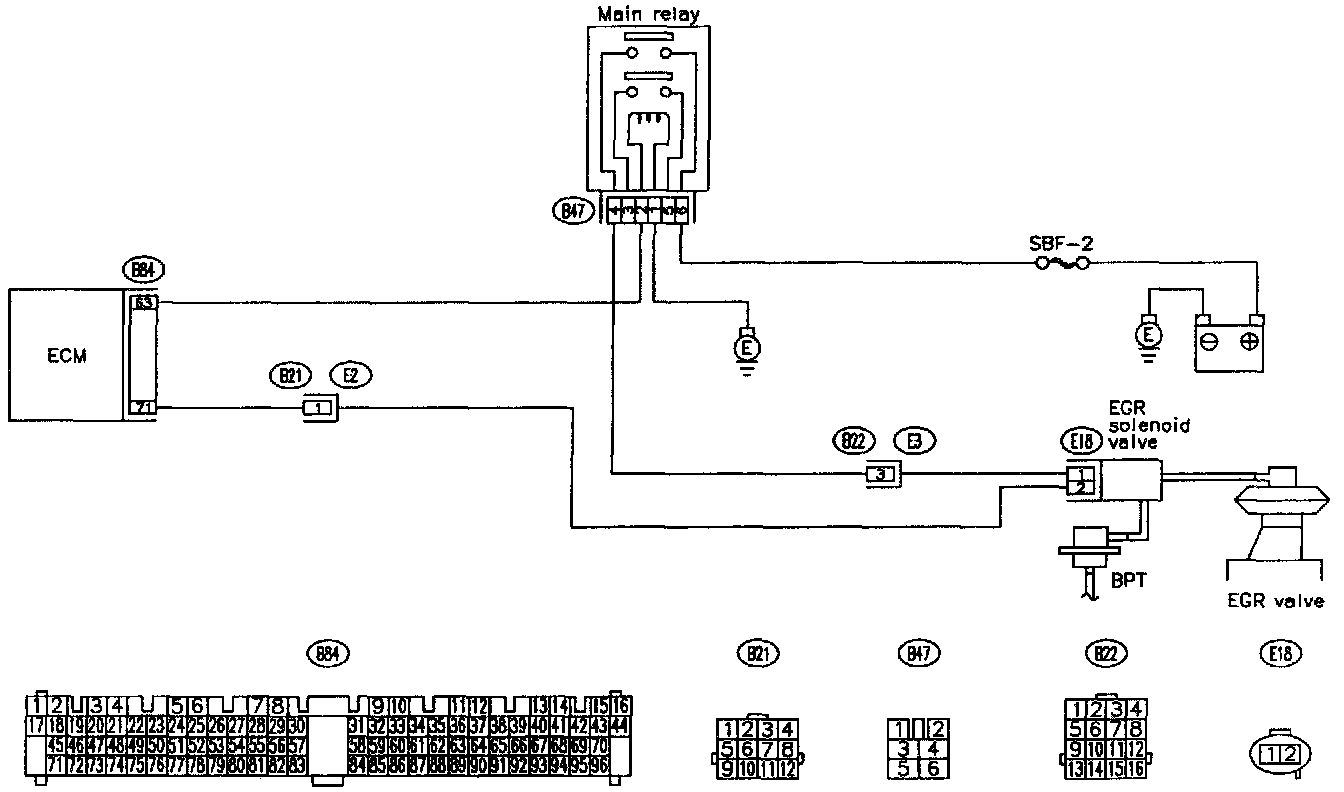

WIRING DIAGRAM (LHD)

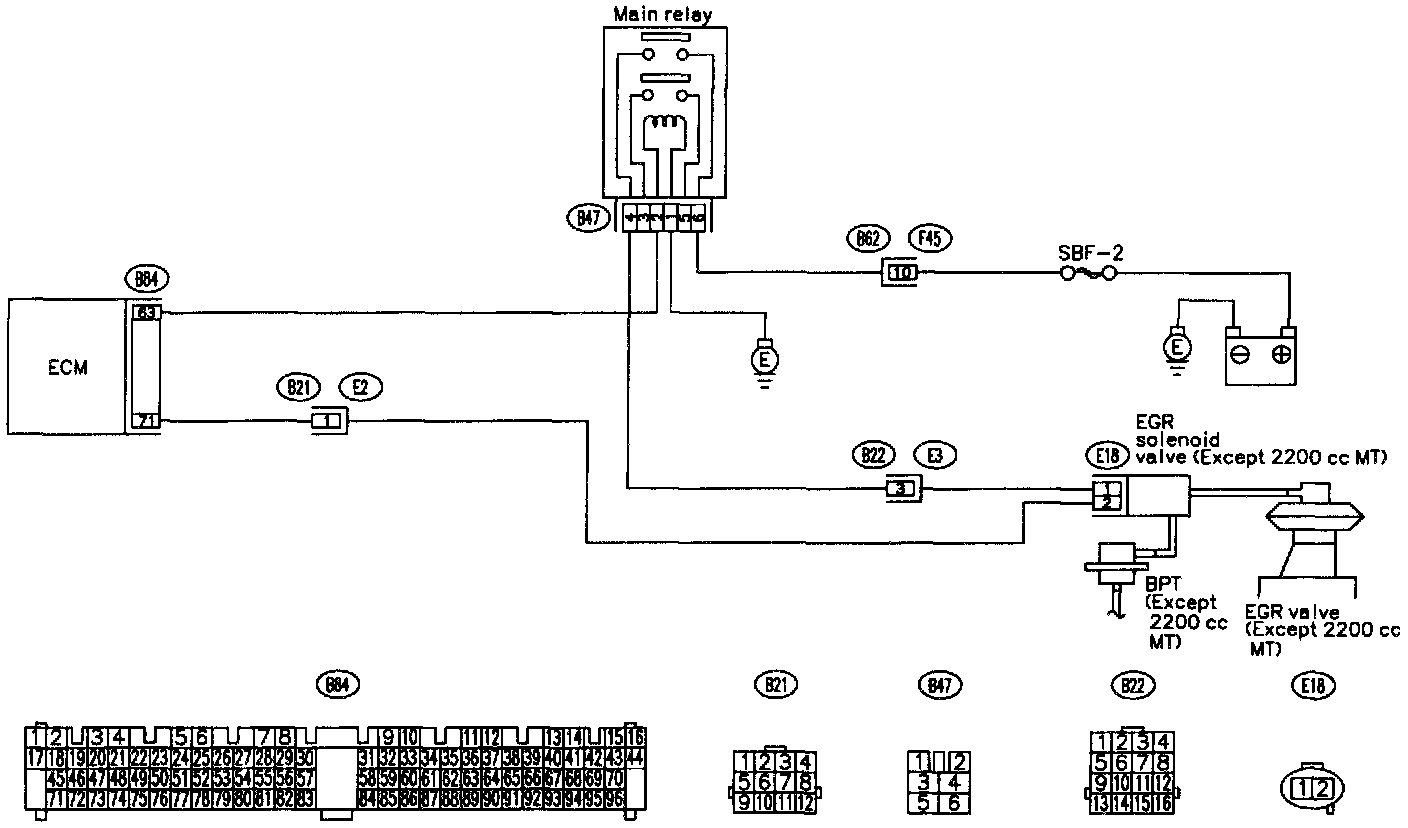

WIRING DIAGRAM (RHD)

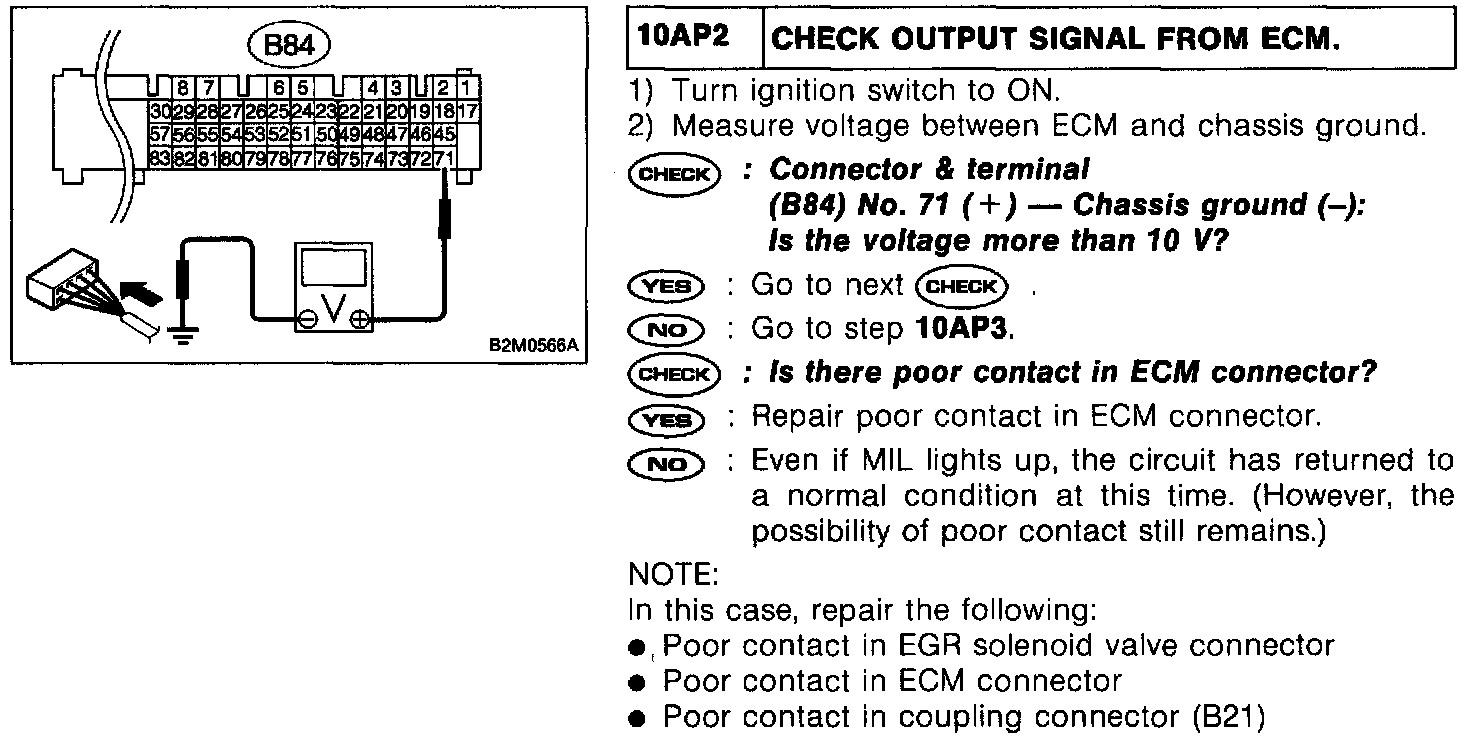

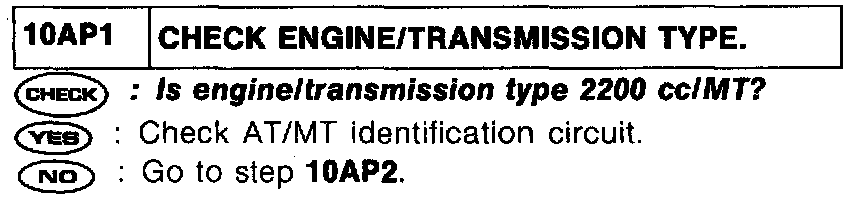

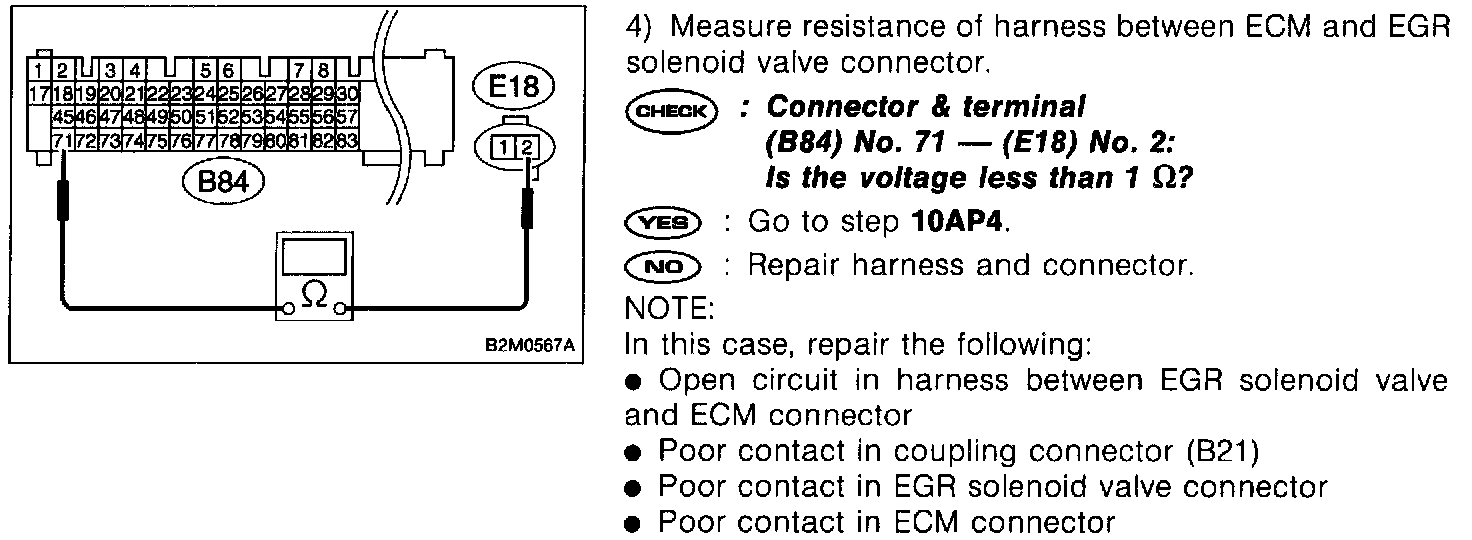

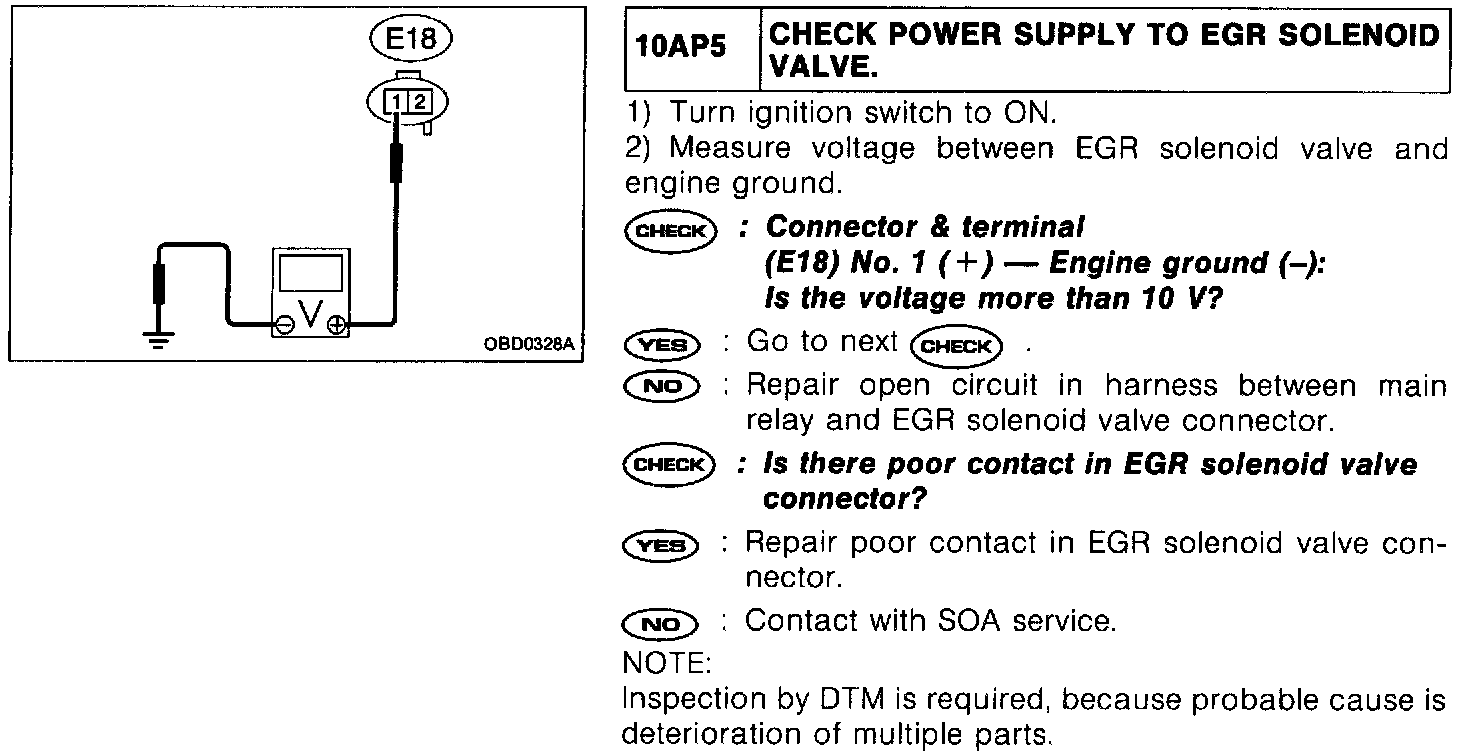

PROCEDURES
