P0340

DTC P0340: CAMSHAFT POSITION SENSOR CIRCUIT MALFUNCTION





SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Engine stalls.
- Failure of engine to start

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

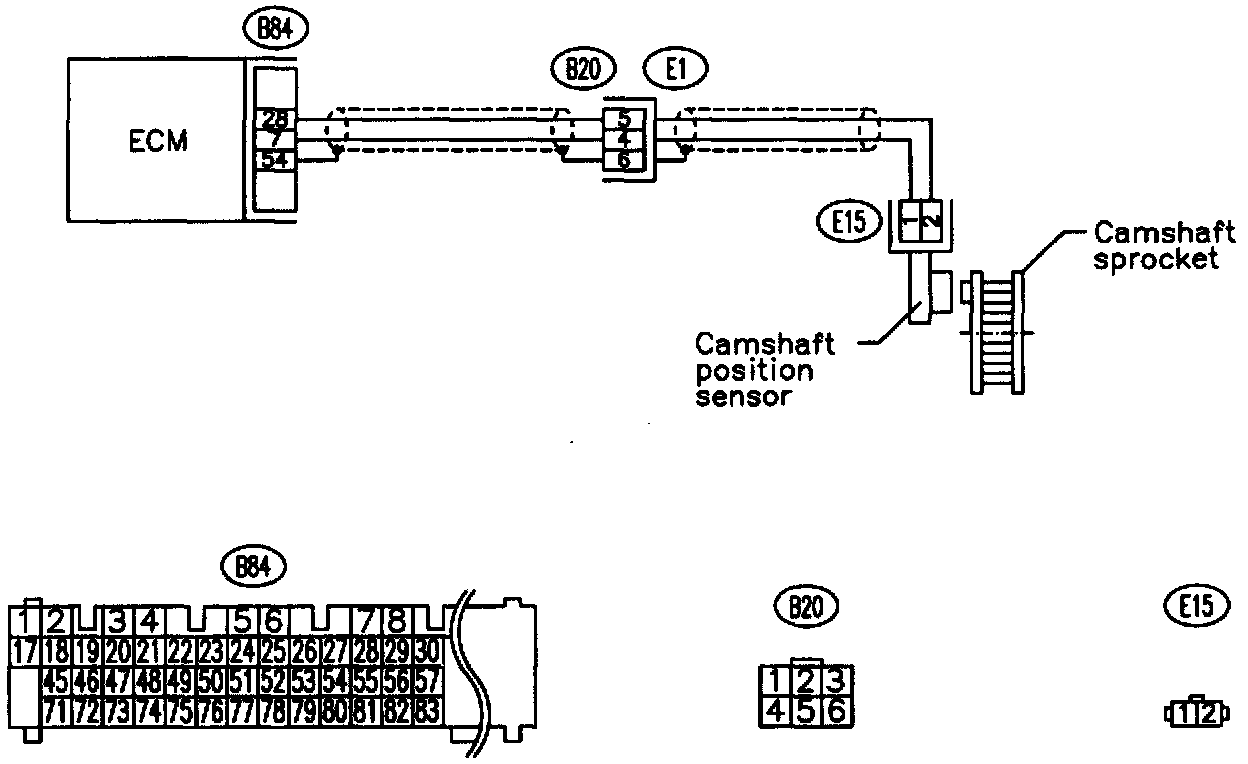

WIRING DIAGRAM (LHD)





WIRING DIAGRAM (RHD)

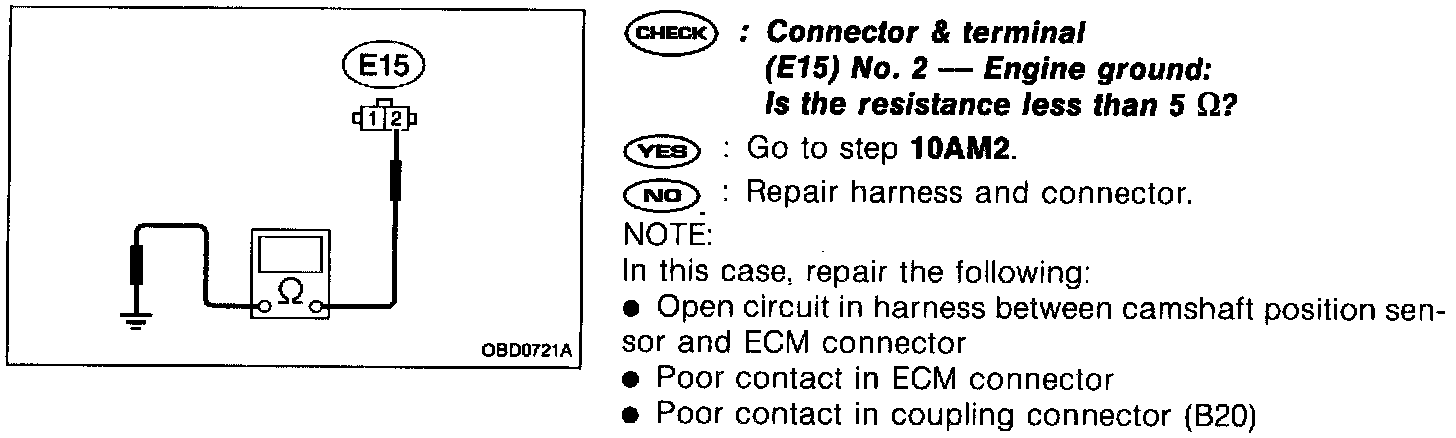

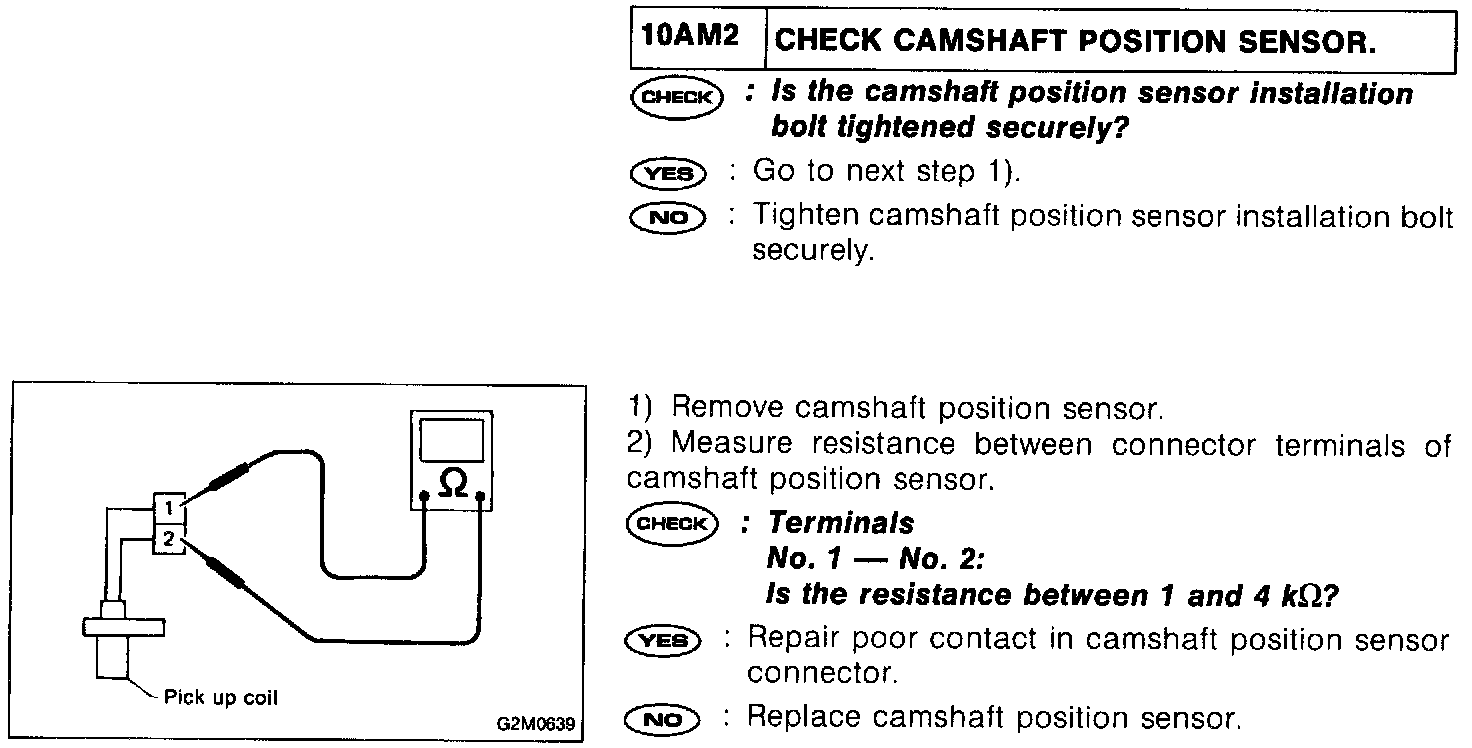

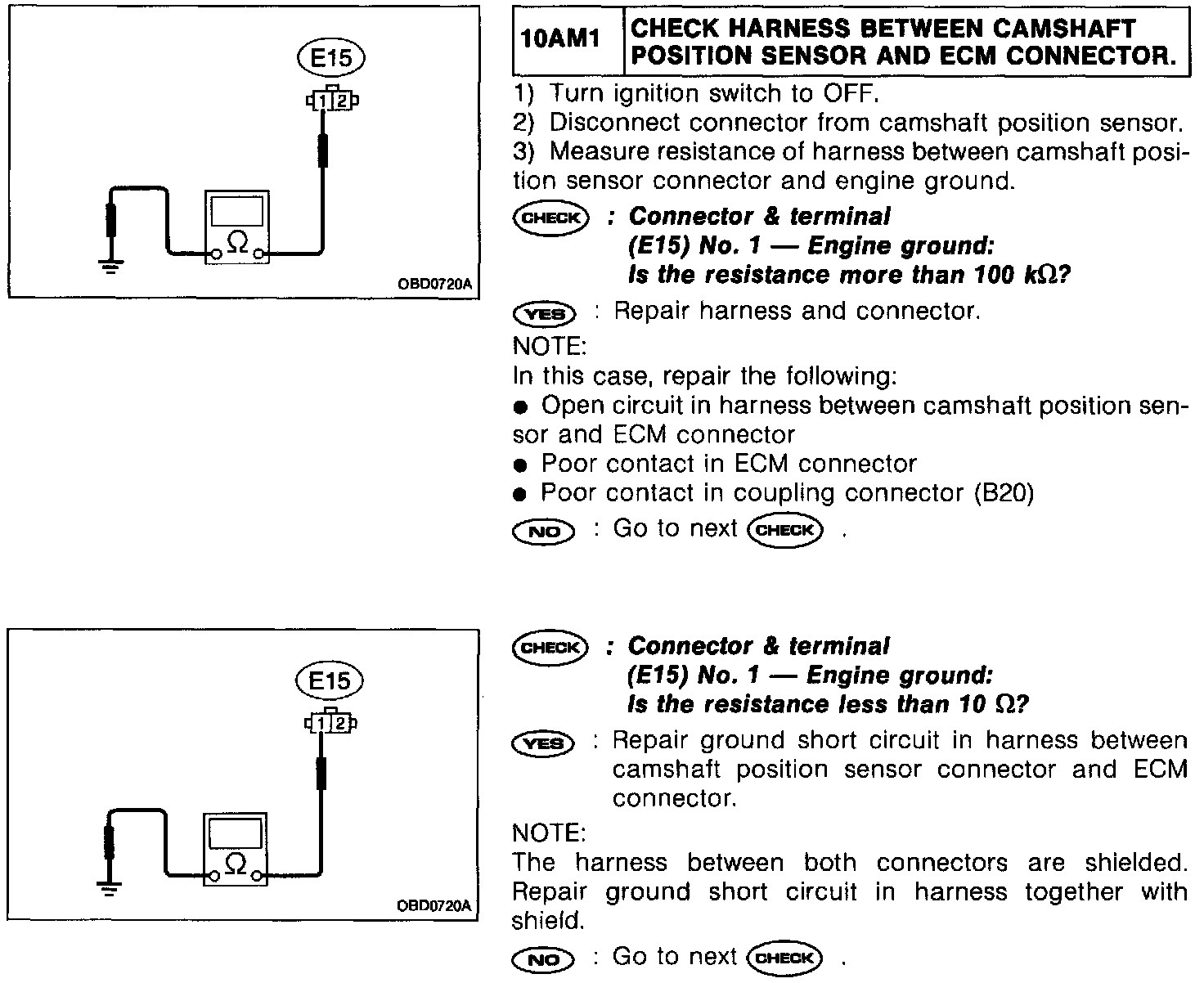

PROCEDURES
