P0182

DTC P0182: FUEL TEMPERATURE SENSOR A CIRCUIT LOW INPUT

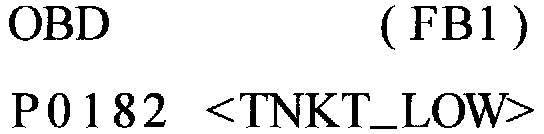

SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM (LHD)





WIRING DIAGRAM (RHD)

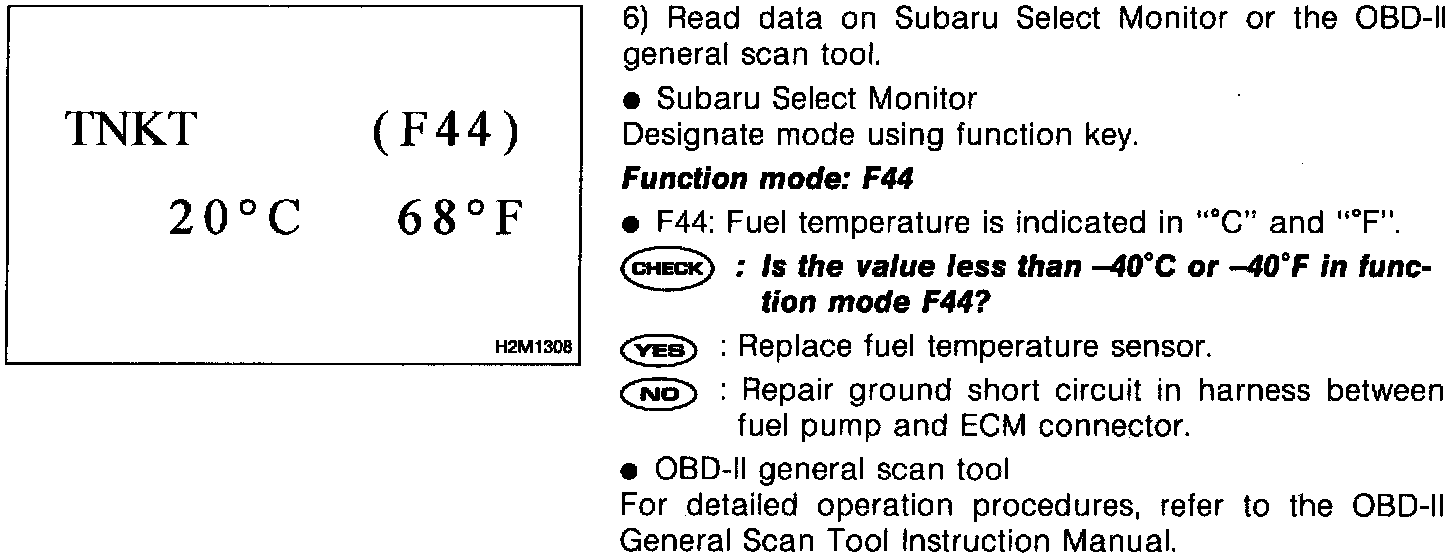

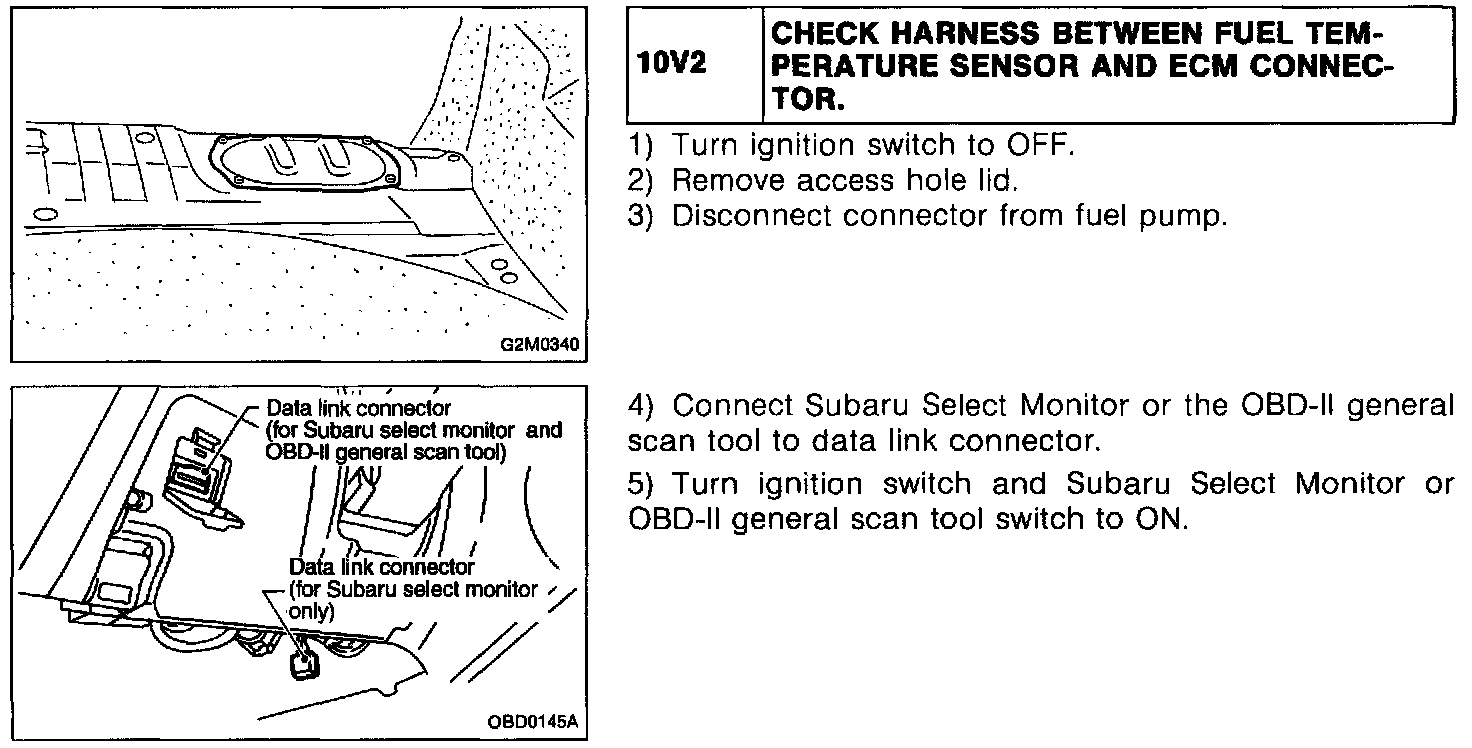

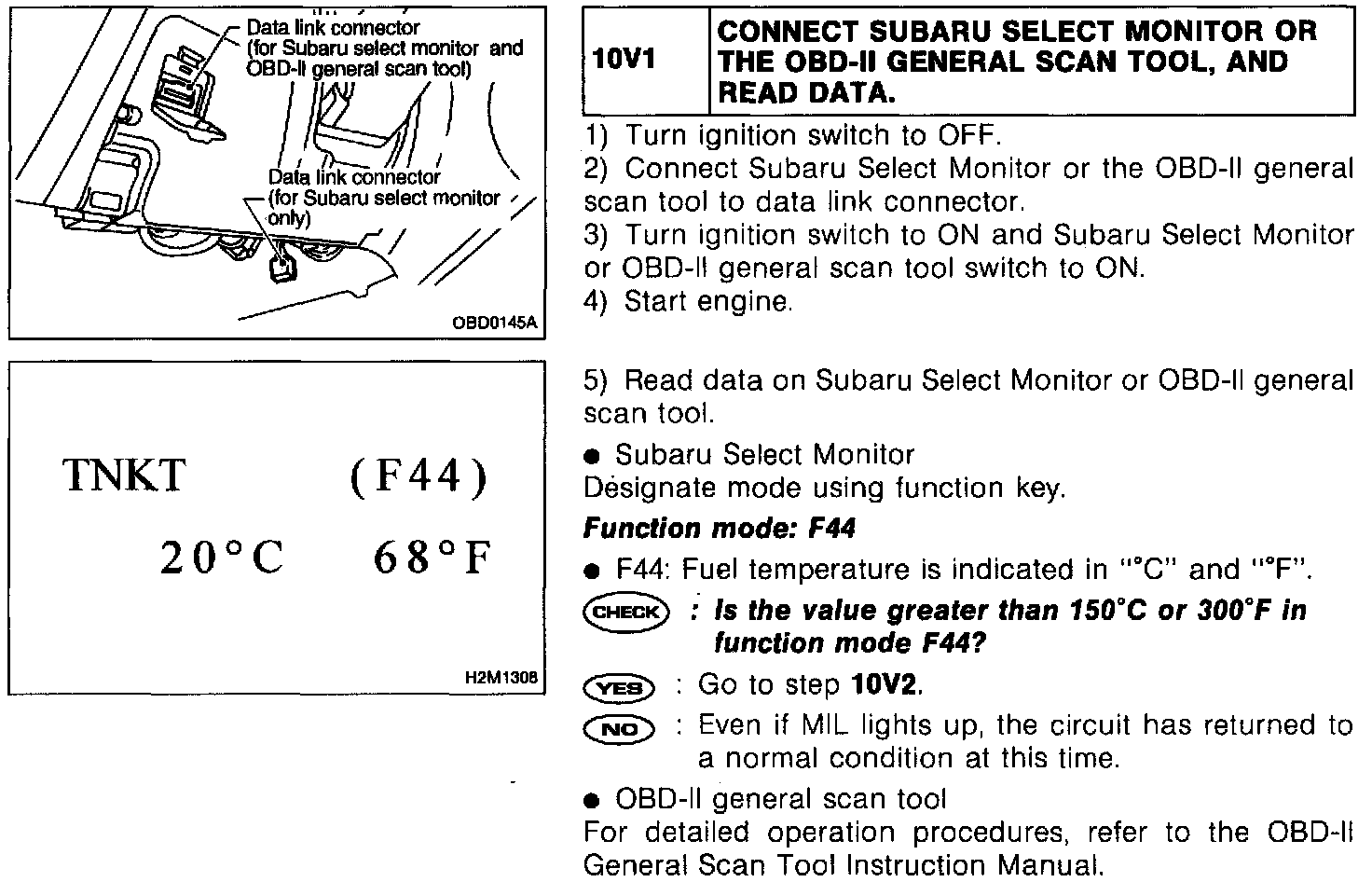

PROCEDURES (LHD)

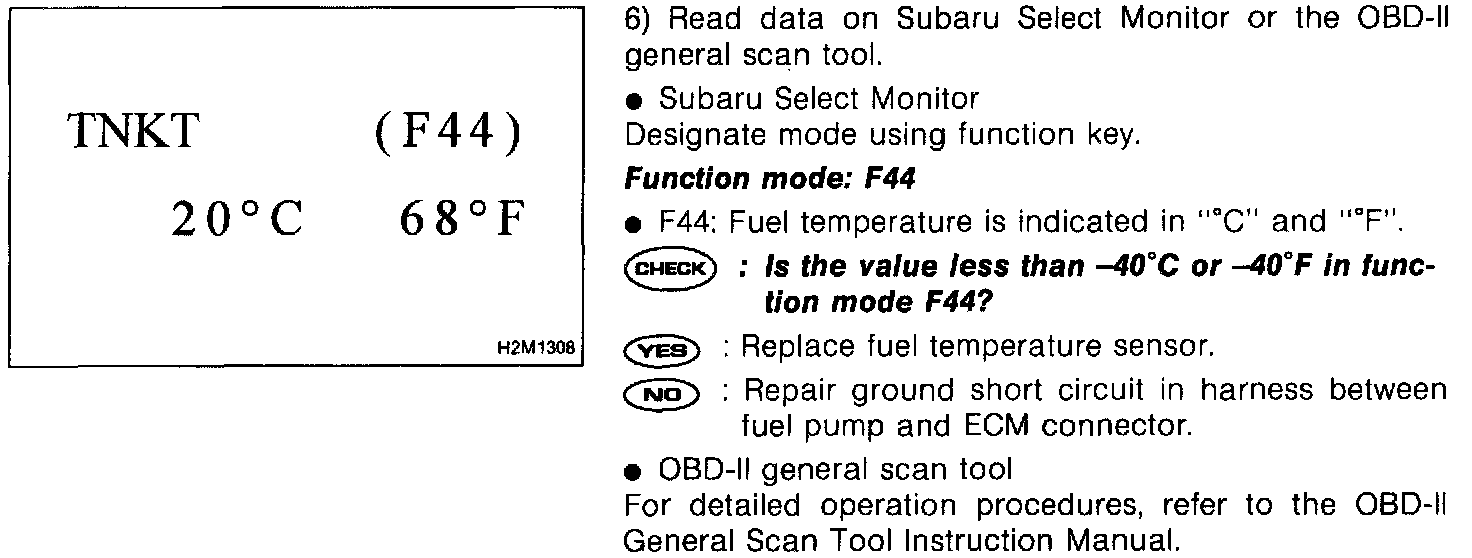

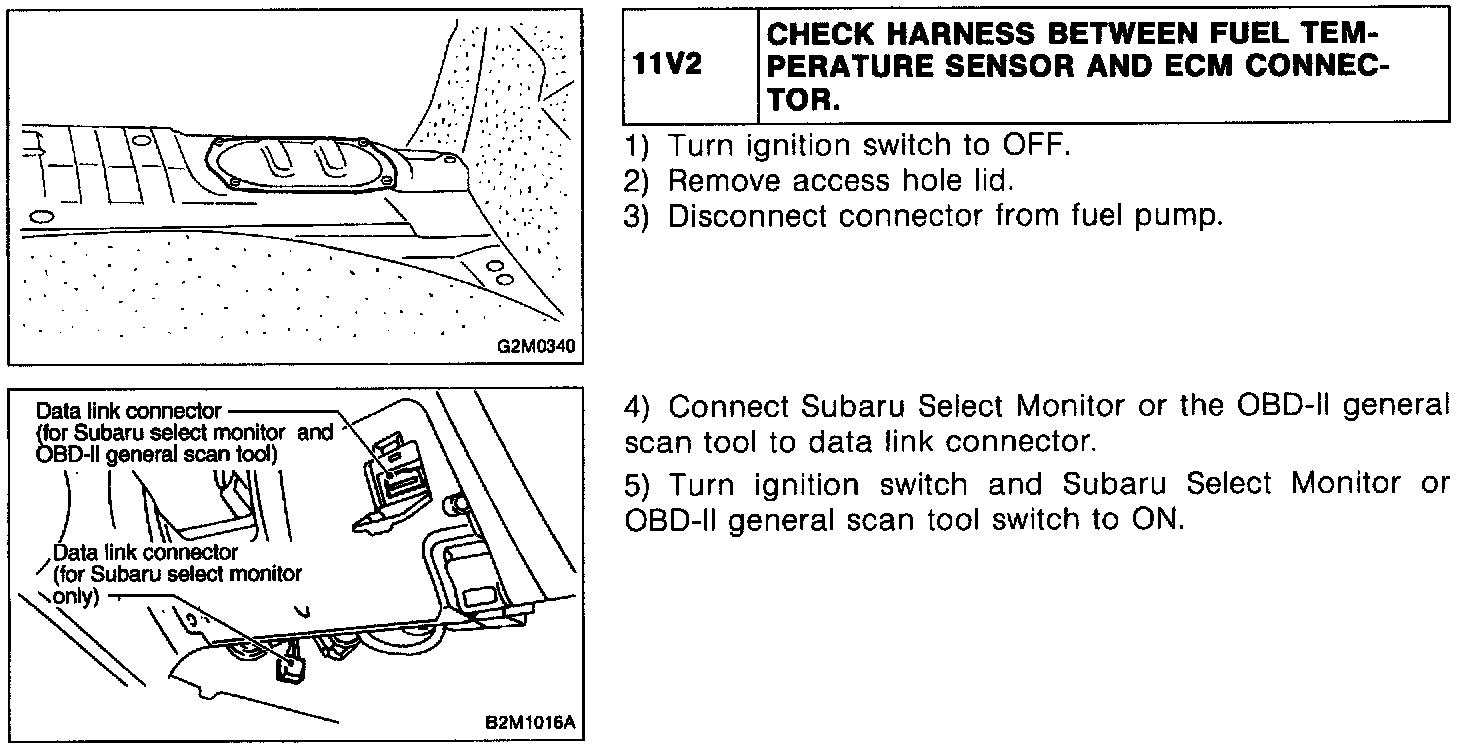

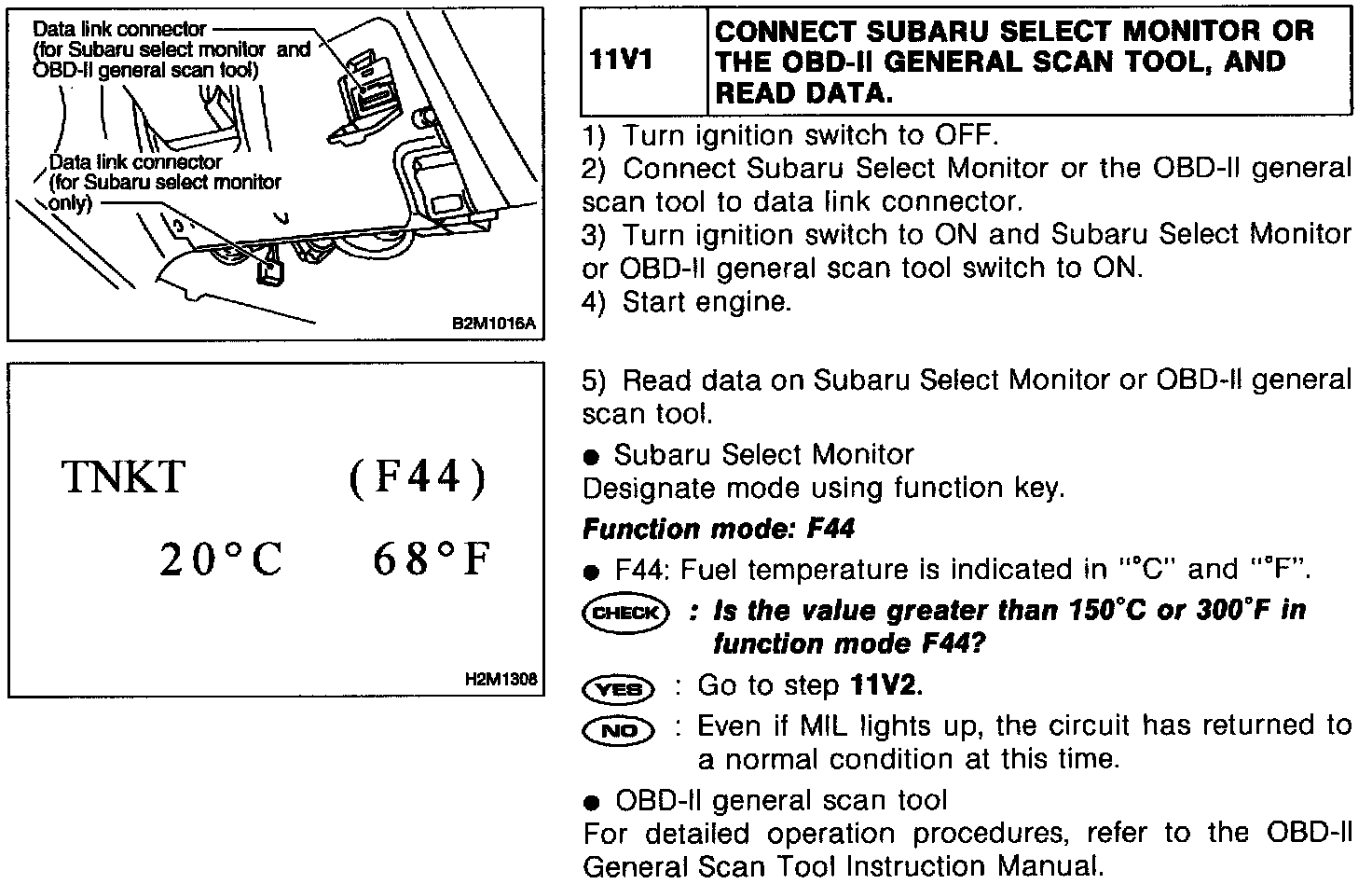

PROCEDURES (RHD)
