P0136

DTC PO136: REAR OXYGEN SENSOR CIRCUIT MALFUNCTION

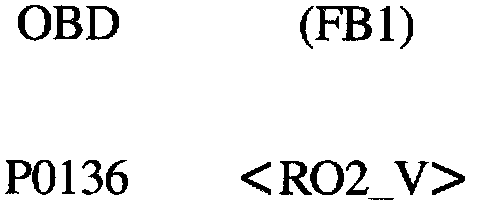

SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION:
- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

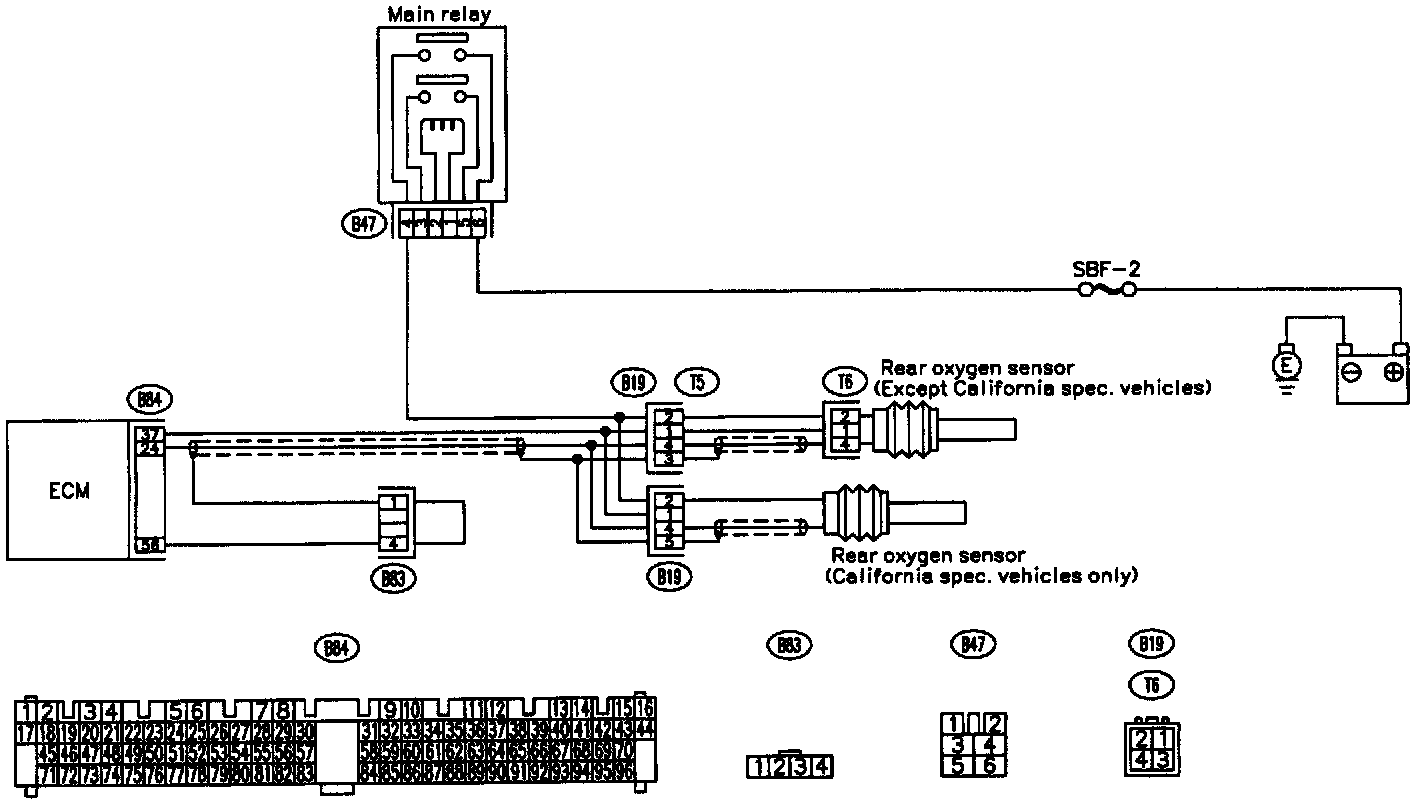

WIRING DIAGRAM (LHD)





WIRING DIAGRAM (RHD)

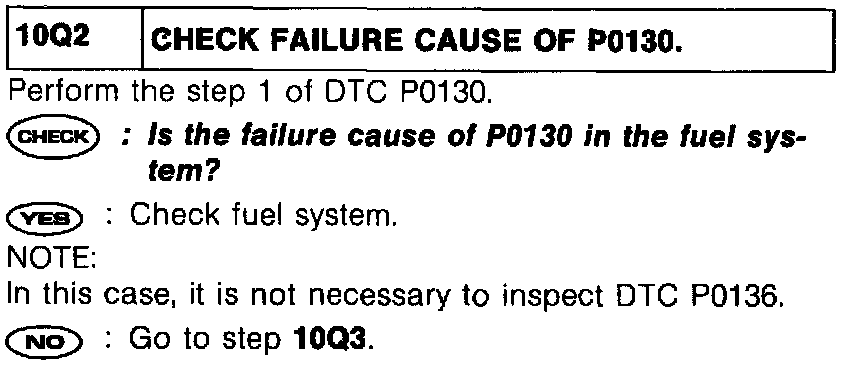

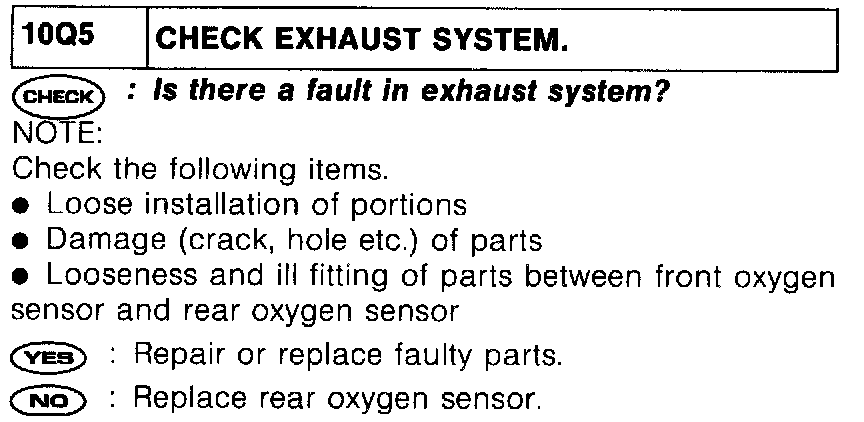

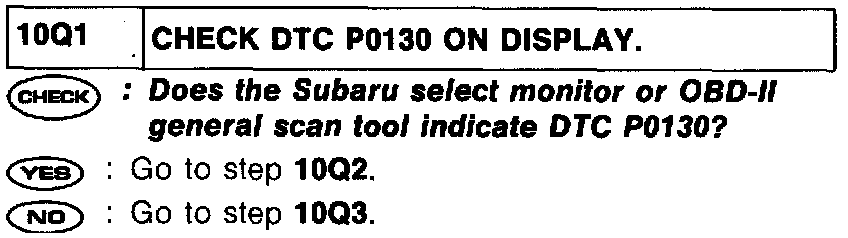

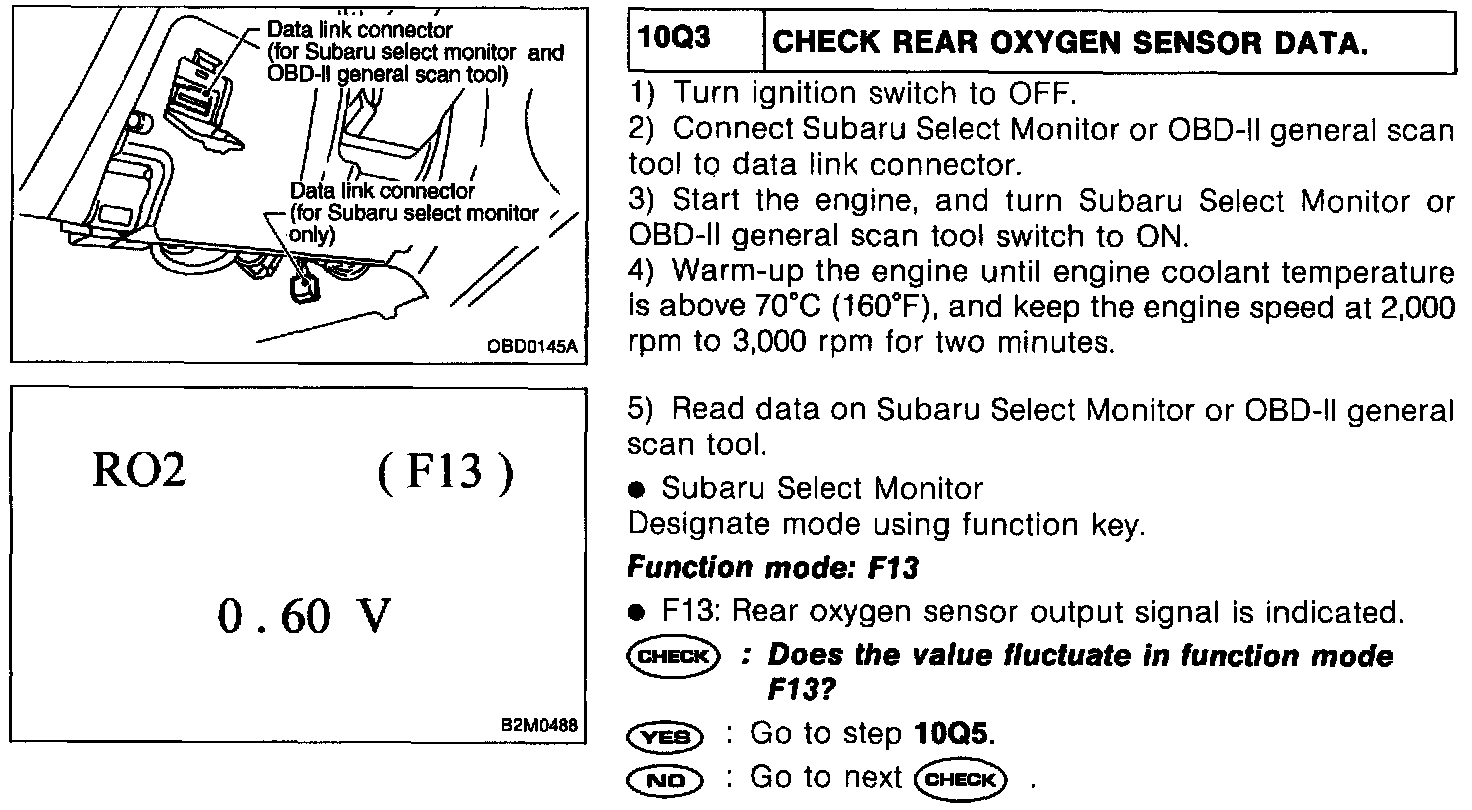

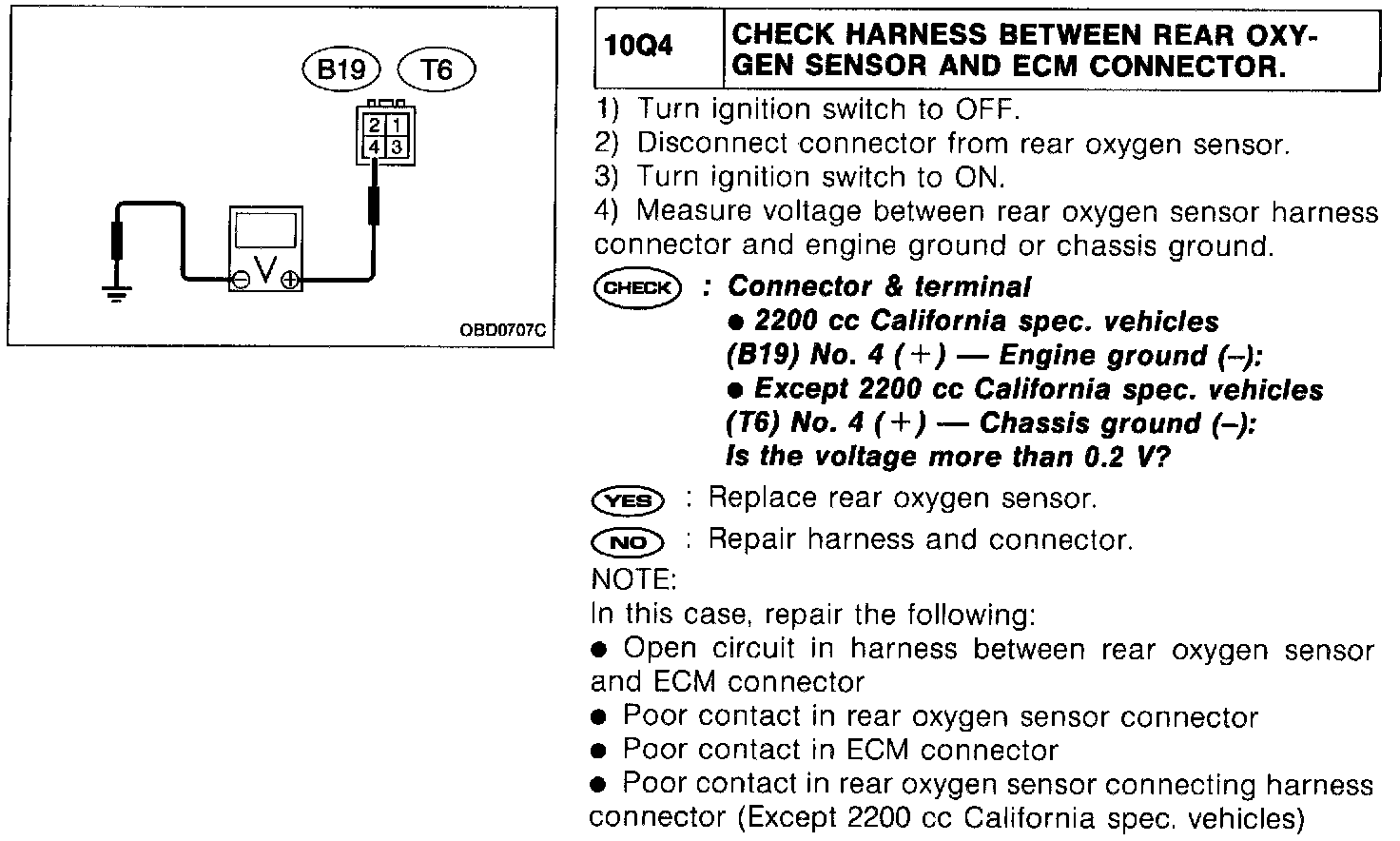

PROCEDURES
