P0133

DTC P0133: FRONT OXYGEN SENSOR CIRCUIT SLOW RESPONSE





SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION:
- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

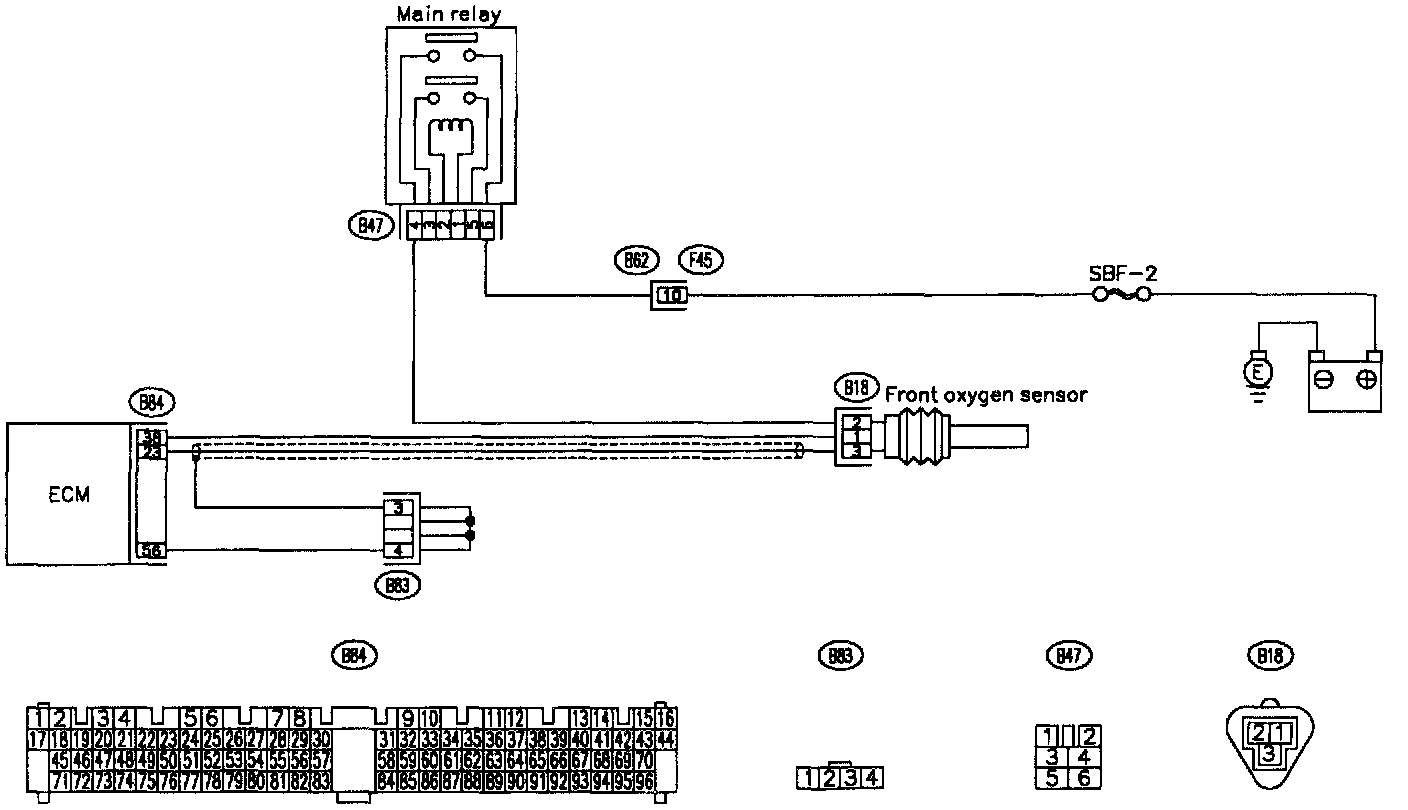

WIRING DIAGRAM (LHD)

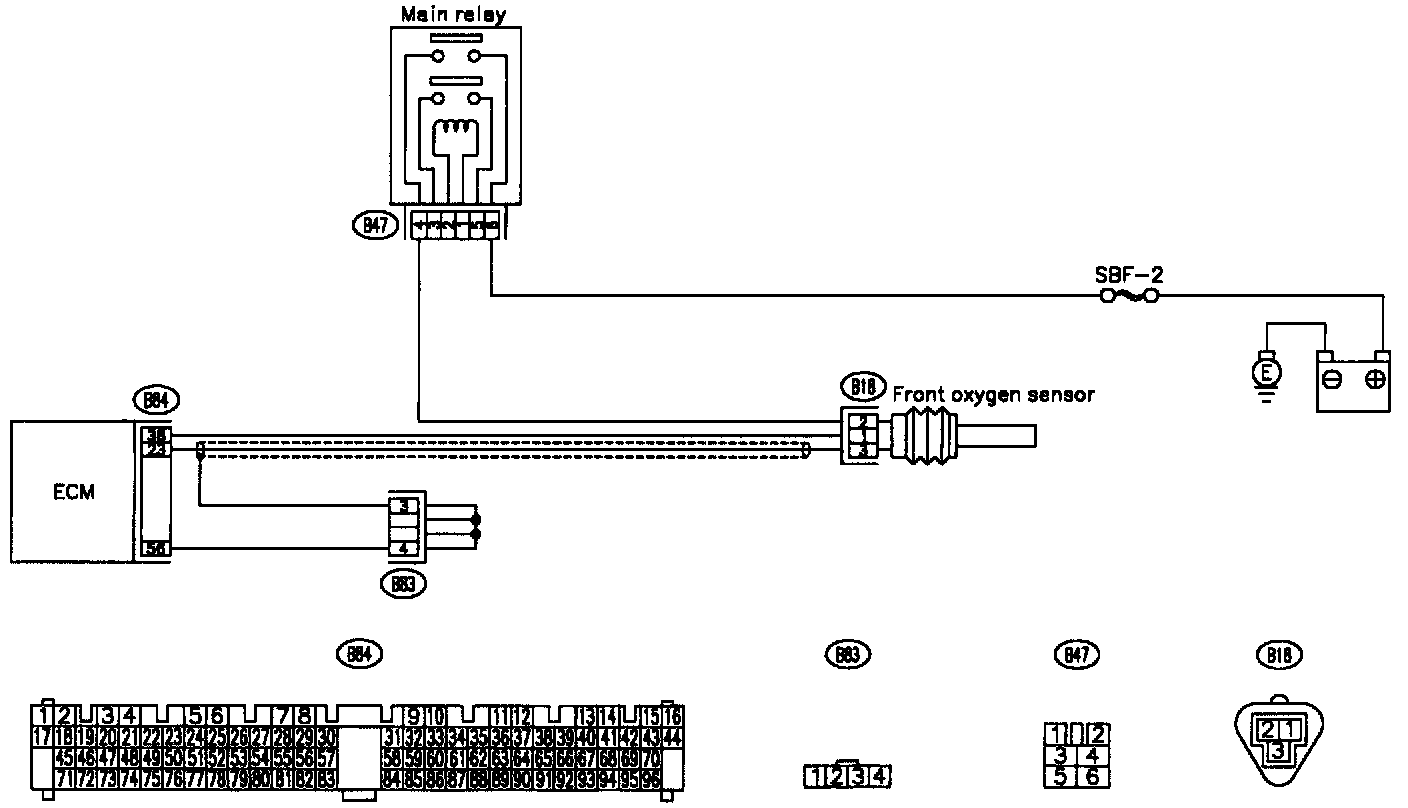

WIRING DIAGRAM (RHD)

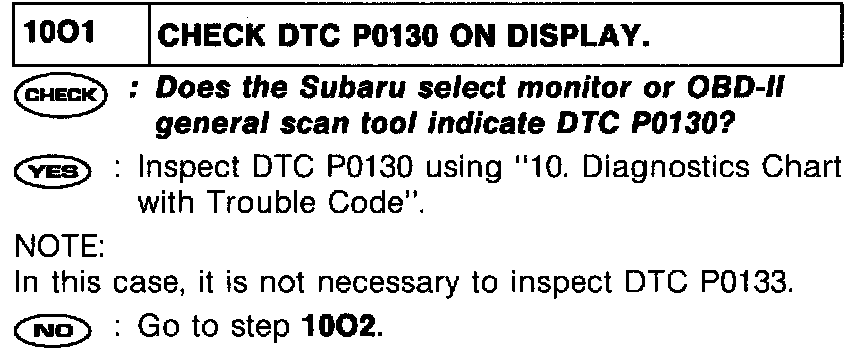

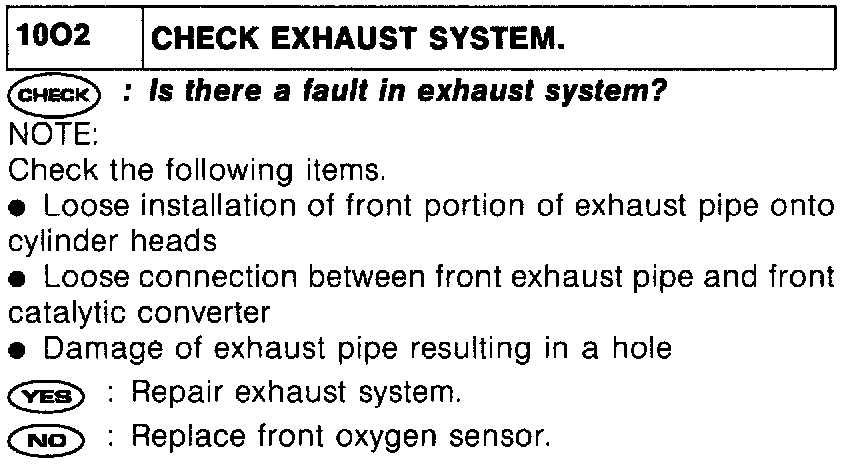

PROCEDURES
