P0106

DTC P0106: PRESSURE SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM (PS-R)

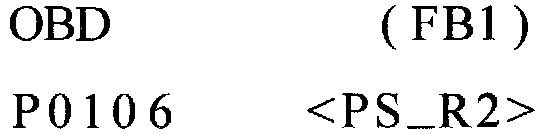

SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION:
- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

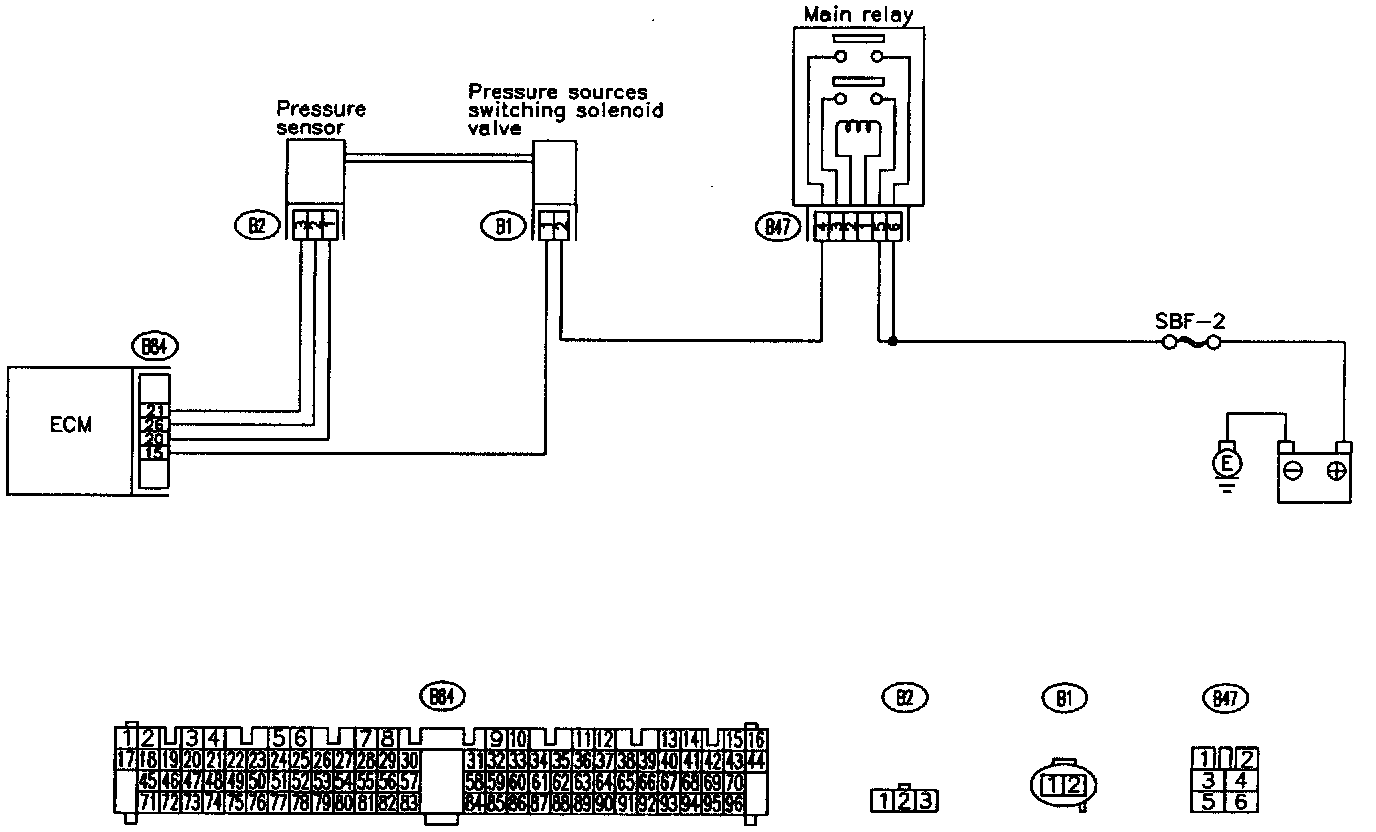

WIRING DIAGRAM (LHD)





WIRING DIAGRAM (RHD)

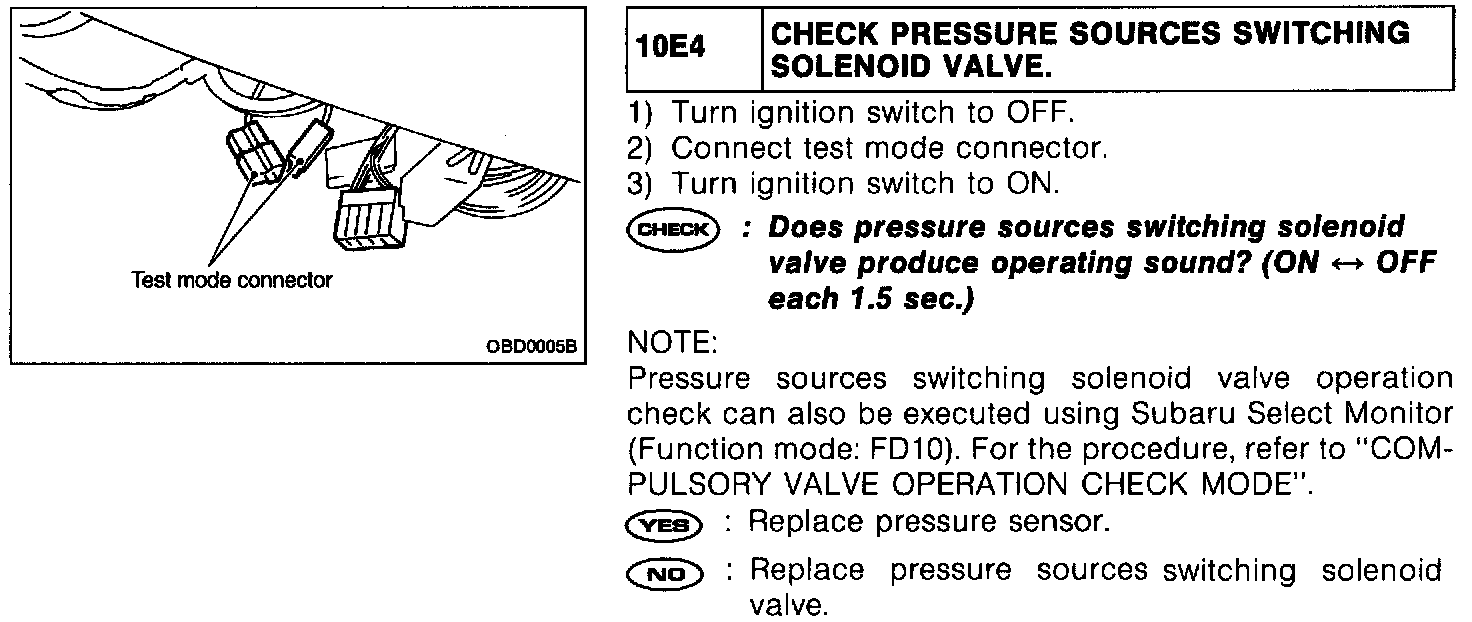

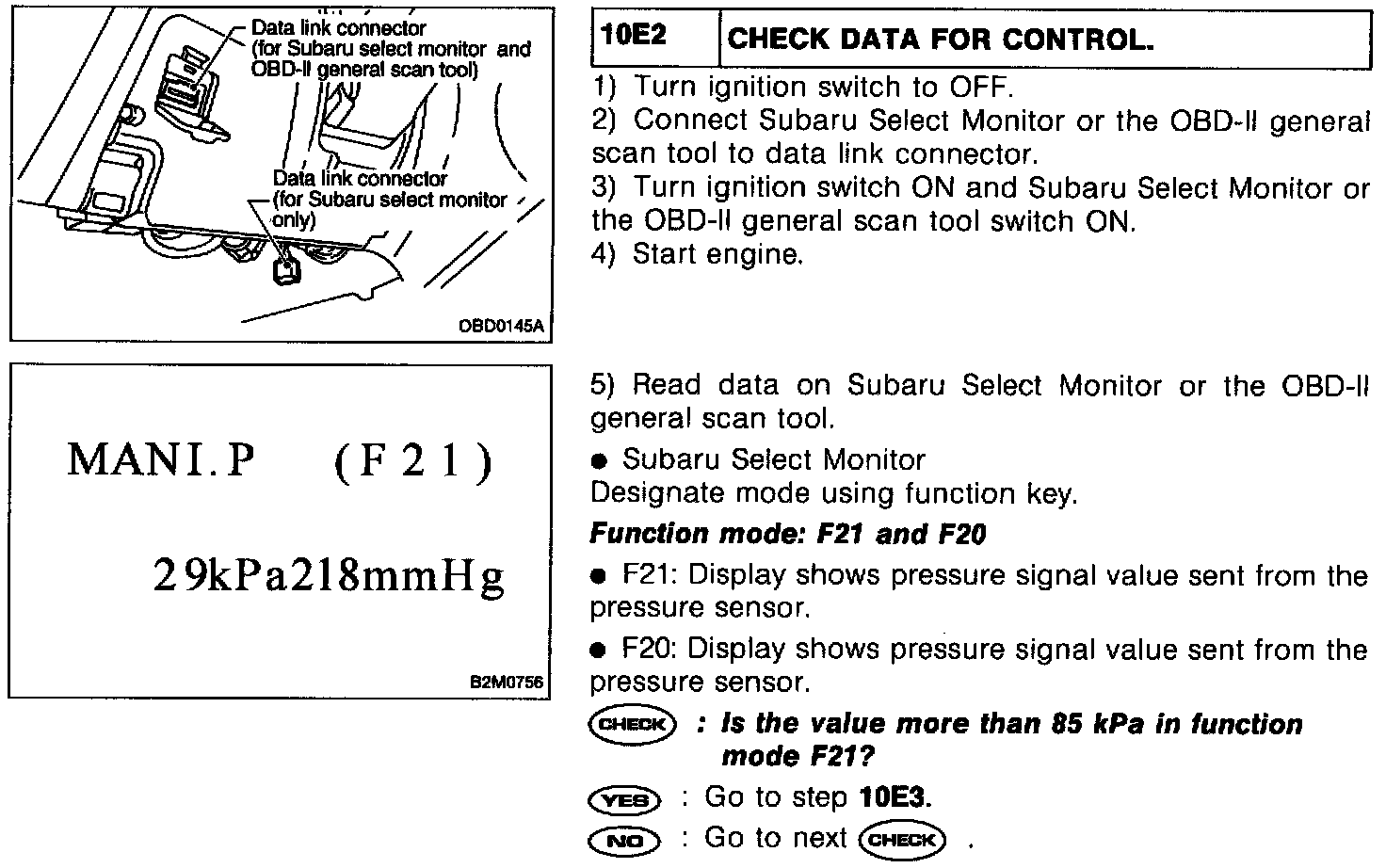

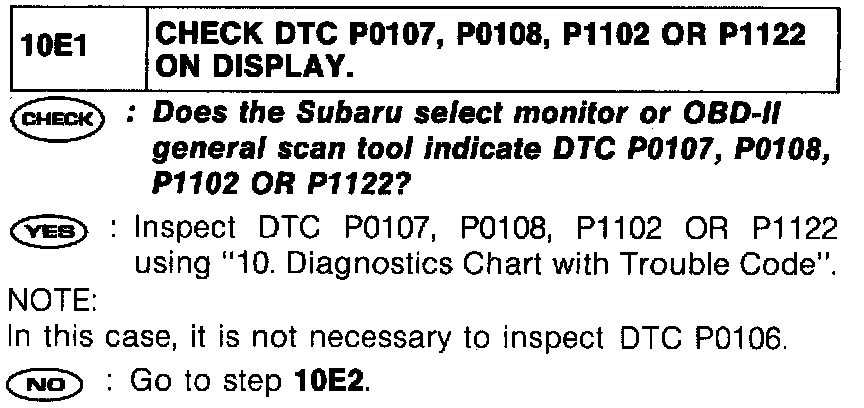

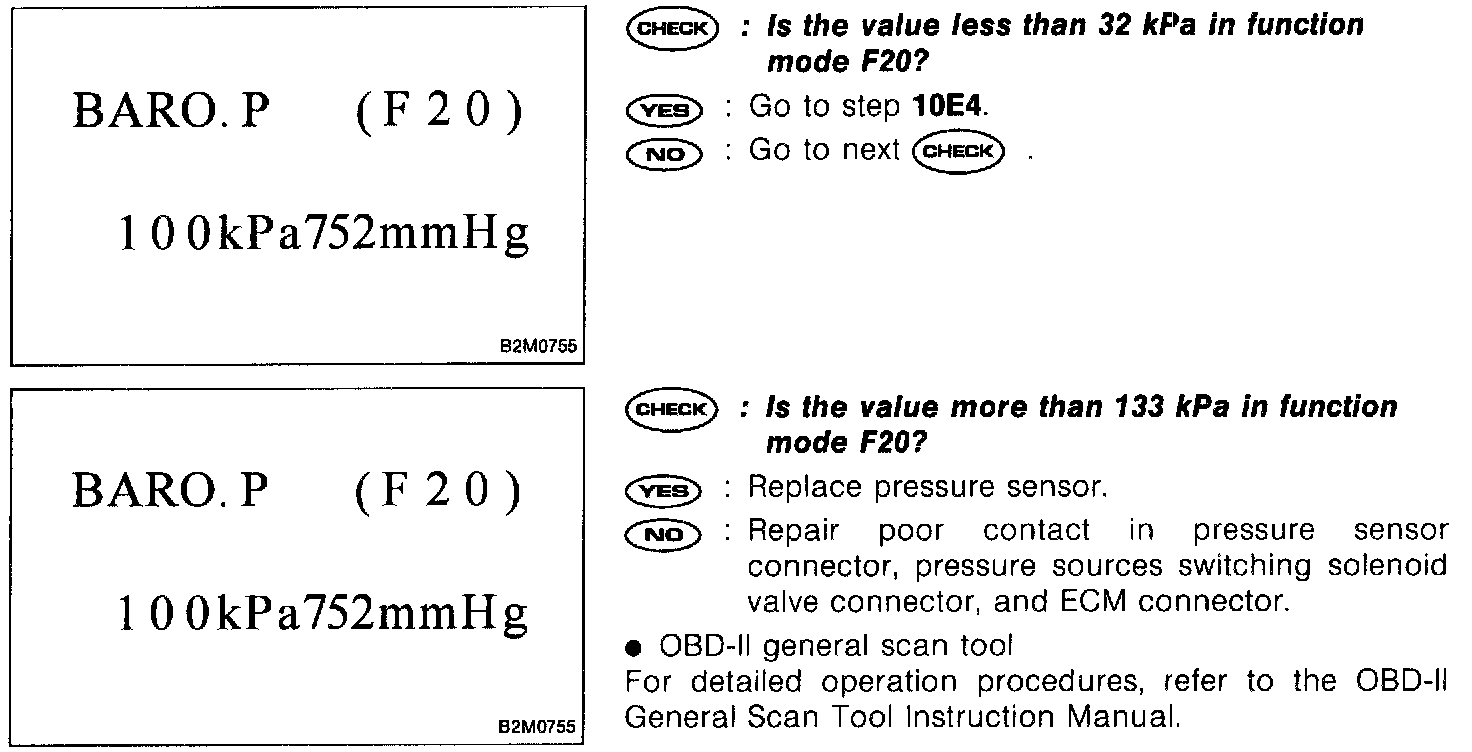

PROCEDURES
