ABS Trouble Code Charts For Select Monitor Results

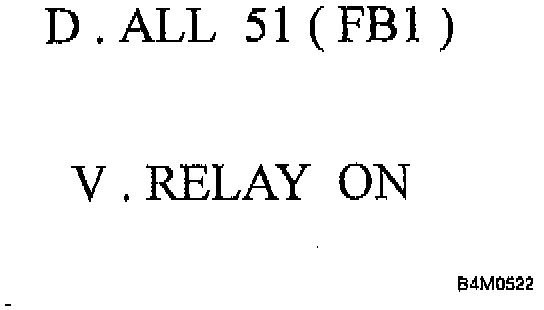

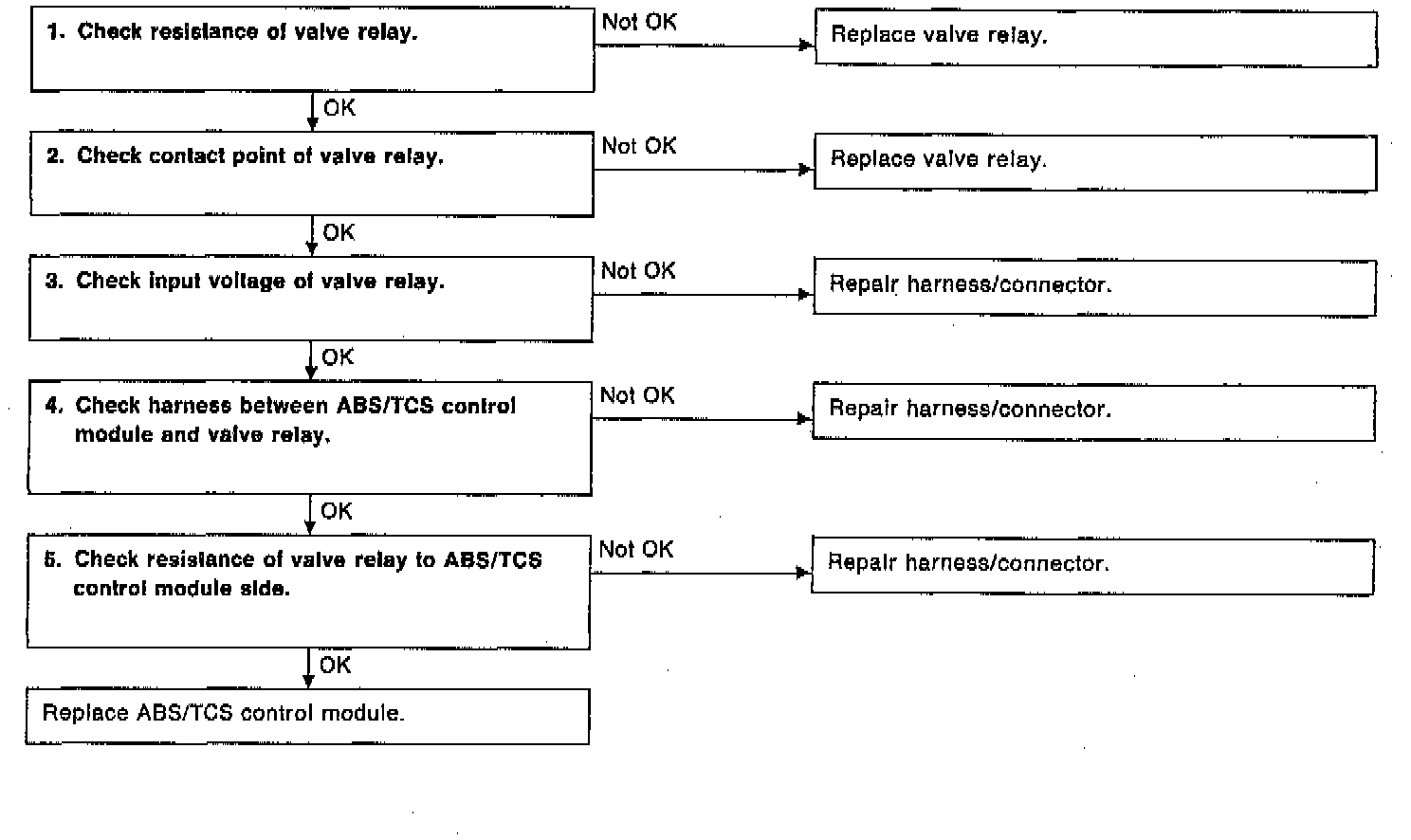

1. V.RELAY ON
Valve relay ON malfunction.

DIAGNOSIS:
^ Faulty valve relay.
^ Faulty harness.
^ Faulty ABS/Traction Control System (TCS) control module.

TROUBLE SYMPTOM:
^ ABS does not operate.
^ TCS does not operate.

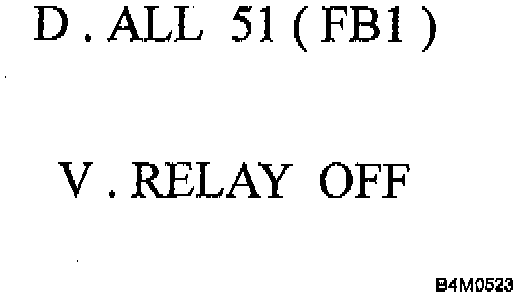

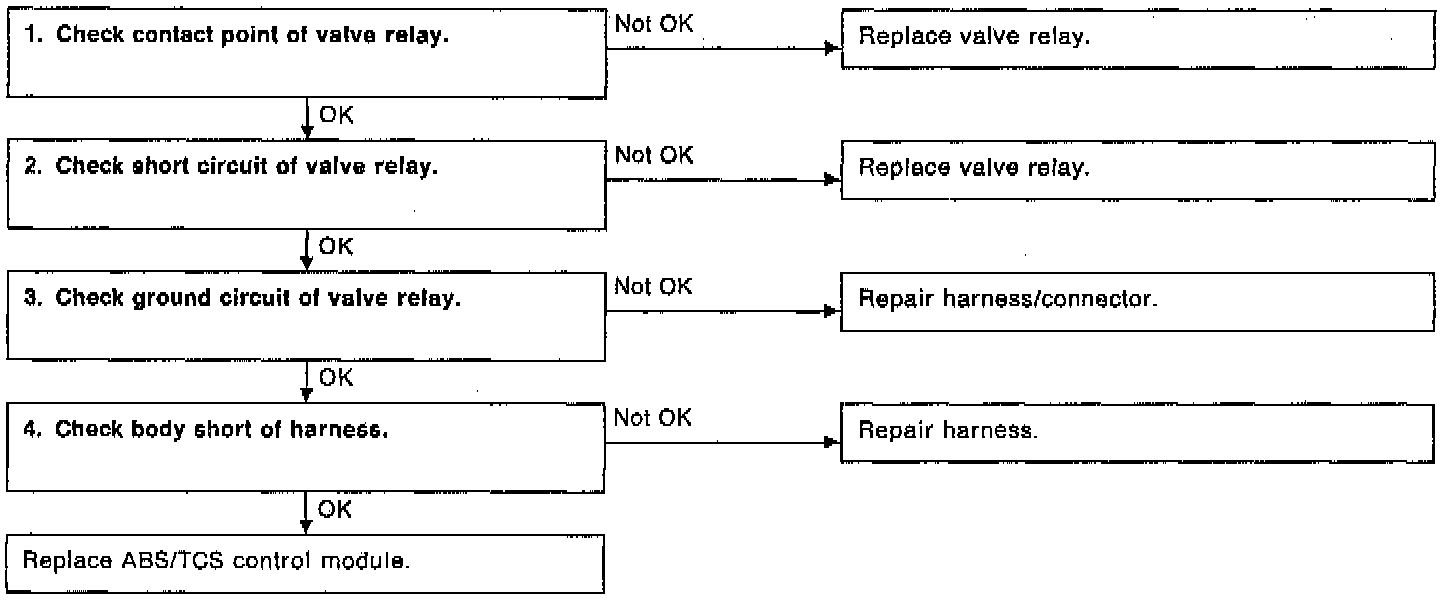

2. V.RELAY OFF
Valve relay OFF malfunction.

DIAGNOSIS:
^ Faulty valve relay.
^ Faulty harness.
^ Faulty ABS/Traction Control System (TCS) control module.

TROUBLE SYMPTOM:
^ ABS does not operate.
^ TCS does not operate.
