Test 8V6

TEST 8V6: CHECK BATTERY SHORT OF HARNESS
1) Turn ignition switch to OFF.

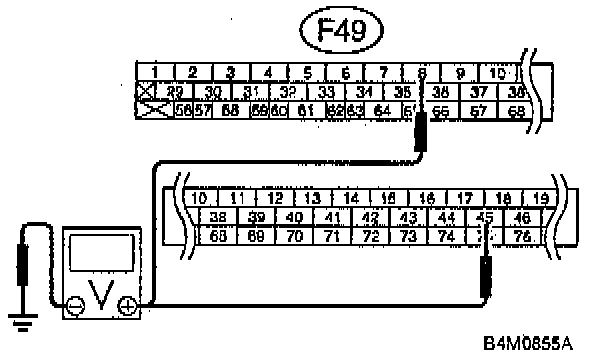

2) Measure voltage between ABS Control Module (ABSCM) and chassis ground
Connector & terminal:
(F49) No. 8 (+) & Chassis ground (-)
(F49) No. 45 (+) & Chassis ground (-)
CHECK: Is voltage 0 Volt?
YES: Test 8V7
NO: Repair harness between ABSCM and chassis ground.
