Test 8V5

TEST 8V5: CHECK BATTERY SHORT OF HARNESS
1) Turn ignition switch ON.

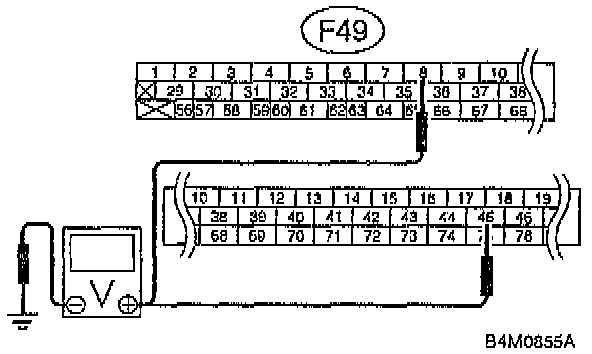

2) Measure voltage between ABS Control Module (ABSCM) connector and chassis ground.
Connector & terminal
(F49) No. 8 (+) & Chassis ground (-)
(F49) No. 45 (+) & Chassis ground (-)
CHECK: Is voltage 0 Volt?
YES: Test 8V6
NO: Repair harness between ABSCM and G sensor.
