Test 8V3

TEST 8V3: CHECK FOR SHORT IN HARNESS BETWEEN ABSCM AND G SENSOR
1) Disconnect connector from ABS Control Module (ABSCM).

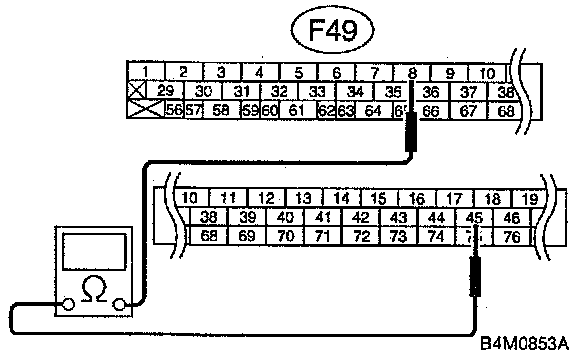

2) Measure resistance between ABSCM connector terminals.
Connector & terminal: (F49) No. 45 & No. 8
CHECK: Is the resistance more than 1 M ohm?
YES: Test 8V4
NO: Repair harness between ABSCM and G sensor.
