Test 8V2
TEST 8V2: CHECK GROUND SHORT OF G SENSOR

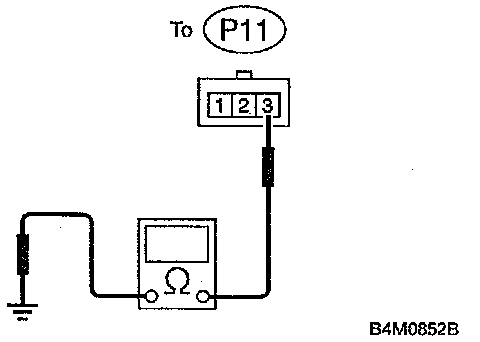

Measure resistance between G sensor and bracket.
Connector & terminal: To (P11) No. 3 & Bracket:
CHECK: Is the resistance more than 1 M ohm?
YES: Test 8V3
NO: Replace G sensor.
TEST 8V2: CHECK GROUND SHORT OF G SENSOR
Measure resistance between G sensor and bracket.
Connector & terminal: To (P11) No. 3 & Bracket:
CHECK: Is the resistance more than 1 M ohm?
YES: Test 8V3
NO: Replace G sensor.
