ABS Trouble Code Charts For Select Monitor Results

1. EGI LINE
Faulty engine control module communication cables.

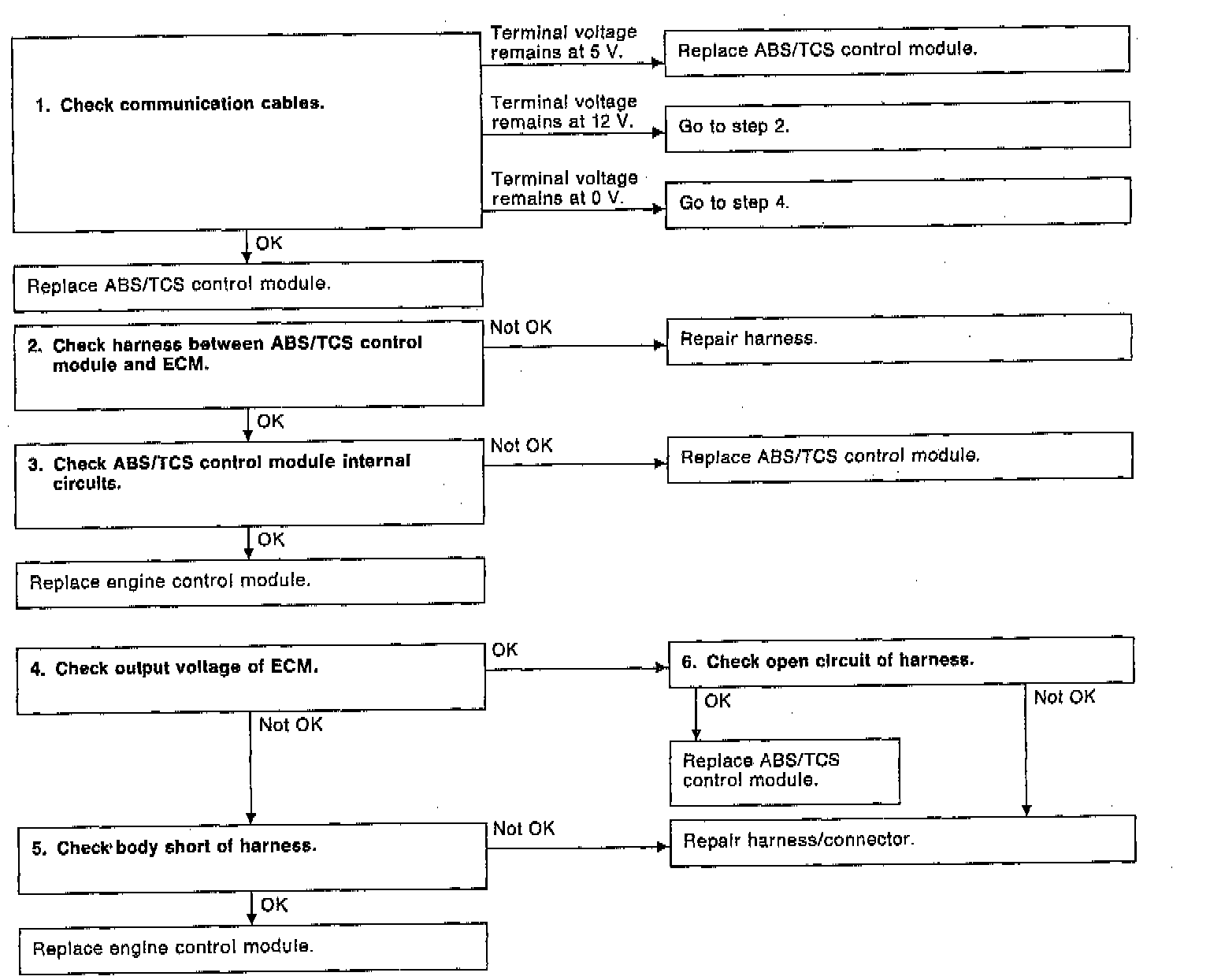

DIAGNOSIS:
^ AET communication cable is broken or short circuited.
^ AEB communication cable is broken or short circuited.
^ AEC communication cable is broken or short circuited.

TROUBLE SYMPTOM:
^ Traction Control System (TCS) does not operate.
