DTC 42
>>
ABS Trouble Code Charts For Select Monitor Results
ABS Trouble Code Charts For Select Monitor Results
1.
HIGH VOLTAGE
Source voltage is high.

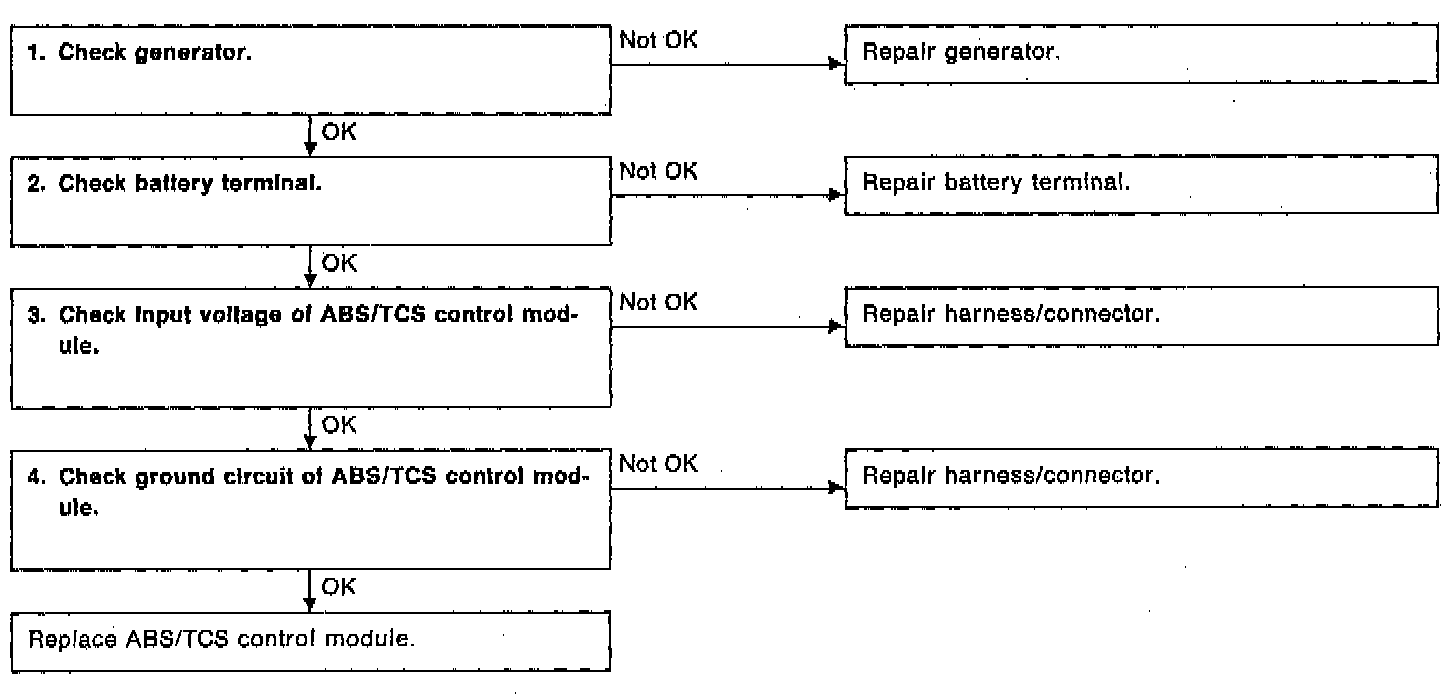

DIAGNOSIS:
TROUBLE SYMPTOM:
^
ABS does not operate.
