ABS Trouble Code Charts For Select Monitor Results

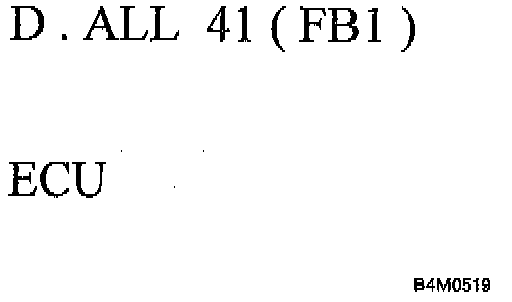

1. ECU
Faulty ABS/Traction Control System (TCS) control module.

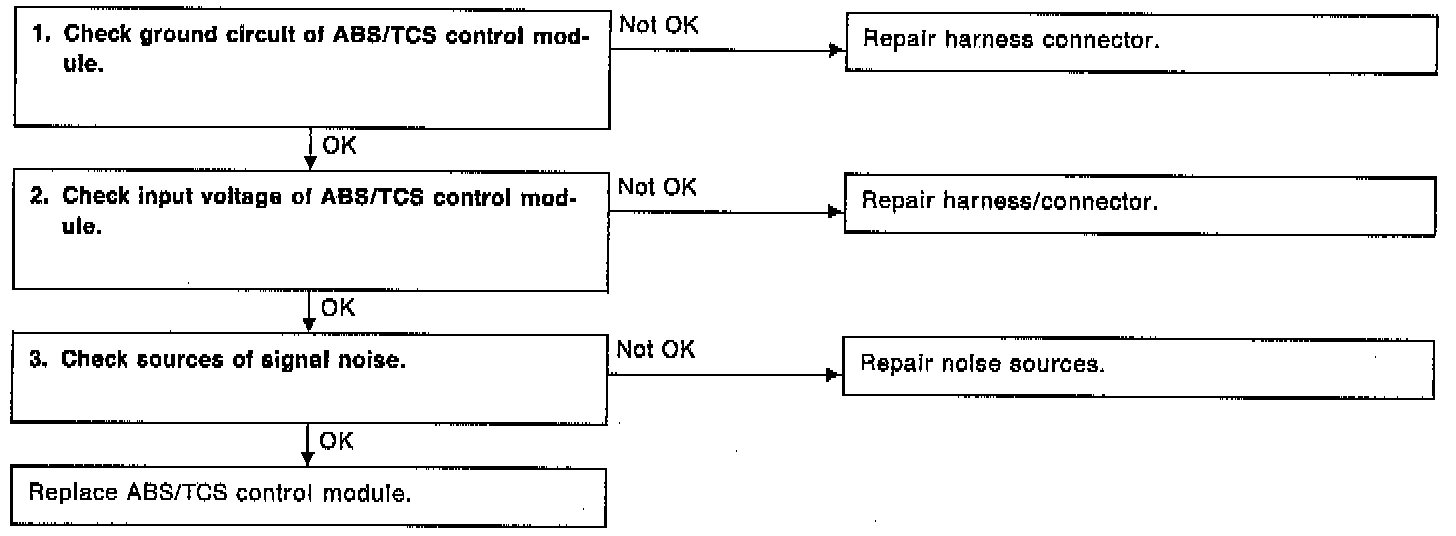

DIAGNOSIS:
^ Faulty ABS control module.

TROUBLE SYMPTOM:
^ ABS does not operate.
^ TCS does not operate.
