ABS With TCS Trouble Code Charts For Warning Light Codes

OVERVIEW
Faulty outlet solenoid valve circuit(s) in hydraulic unit are indicated.

DIAGNOSIS
^ Faulty harness/connector.
^ Faulty solenoid valve in hydraulic unit.
^ Faulty ABS/Traction Control System (TCS) control module.

TROUBLE SYMPTOMS
^ ABS does not operate.
^ TCS does not operate.
^ ABS sequence control does not operate.
^ TCS sequence control does not operate.

PROCEDURE

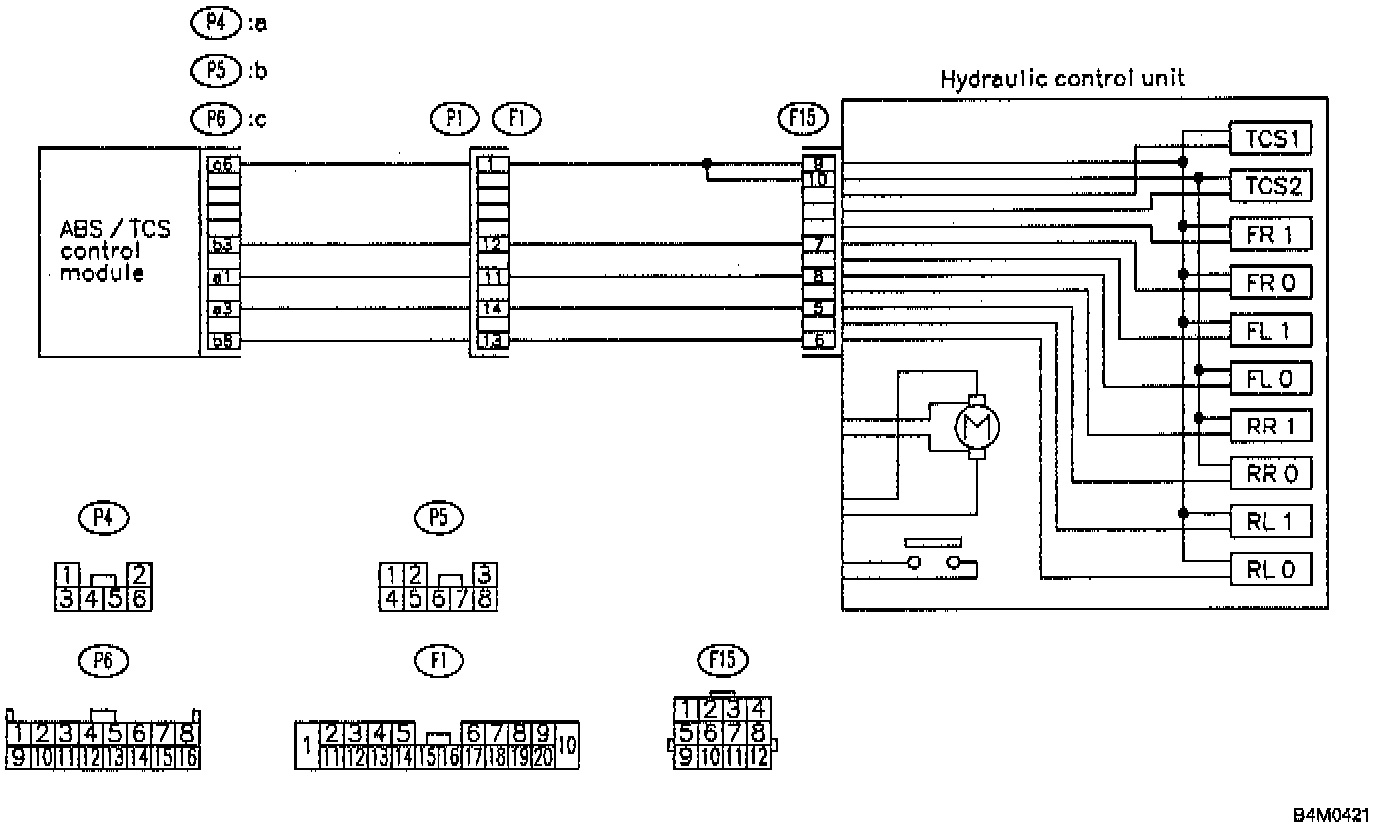

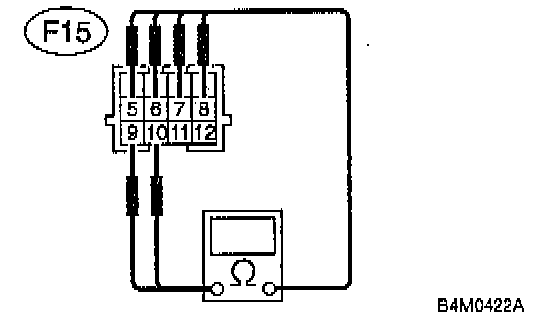

1. Check resistance of solenoid valve.
a) Turn ignition switch OFF.
b) Disconnect connector from hydraulic unit.





c) Measure resistance between hydraulic unit terminals.
TROUBLE CODE / Connector & terminal:
32 / (F15) No. 7 & No. 9
34 / (F15) No. 8 & No. 10
36 / (F15) No. 5 & No. 10
38 / (F15) No. 6 & No. 9
Specified resistance: approx. 3.5 ± 0.5 ohms

2. Check body short of solenoid valve.
a) Turn ignition switch OFF.
b) Disconnect connector from hydraulic unit.





c) Measure resistance between hydraulic unit terminals.
TROUBLE CODE / Connector & terminal:
32 / (F15) No. 7 & body
34 / (F15) No. 8 & body
36 / (F15) No. 5 & body
38 / (F15) No. 6 & body
Specified resistance: approx. 1 M ohm

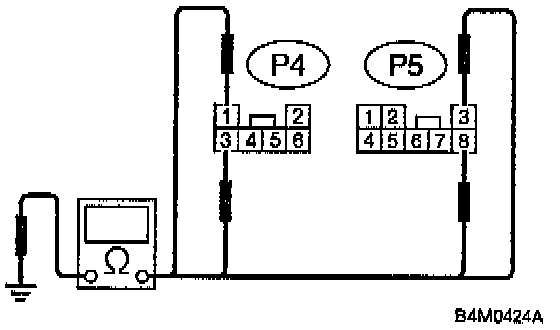

3. Check body short of harness.
a) Turn ignition switch OFF.
b) Disconnect connector from hydraulic unit.
c) Disconnect connector from ABS/TCS control module.





d) Measure resistance between ABS/TCS control module connector terminals.
TROUBLE CODE / Connector & terminal:
32 / (P5) No. 3 & body
34 / (P4) No. 1 & body
36 / (P4) No. 3 & body
38 / (P5) No. 8 & body
Specified resistance: 1 M ohm

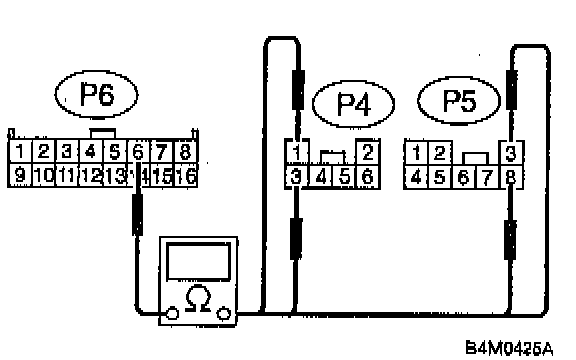

4. Check Harness Between ABS/TCS Control Module And Hydraulic Unit.
a) Turn ignition switch OFF.
b) Connect connector from hydraulic unit.
c) Disconnect connector from ABS/TCS control module.





d) Measure resistance between ABS/TCS control module connector terminals.
TROUBLE CODE / Connector & terminal:
32 / (P5) No. 3 & (P6) No. 6
34 / (P4) No. 1 & (P6) No. 6
36 / (P4) No. 3 & (P6) No. 6
38 / (P5) No. 8 & (P6) No. 6
Specified resistance: 3.7 ± 0.5 ohms
