Test 8J7

TEST 8J7: CHECK ABS SENSOR GAP

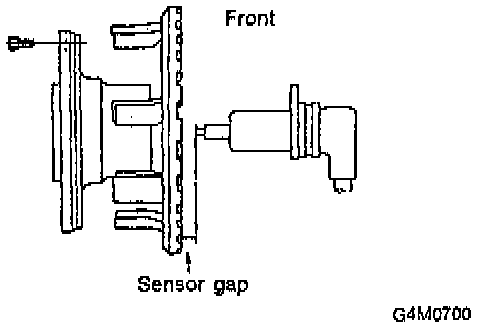

Measure tone wheel to pole piece gap over entire perimeter of the wheel.





CHECK: Is the gap within the specifications shown in the table?
YES:
NO: Adjust the gap.

NOTE: Adjust the gap using spacer (Part No. 26755AA000) or equivalent. If spacers cannot correct the gap, replace worn sensor or worn tone wheel.
