ABS Trouble Code Charts For Select Monitor Results

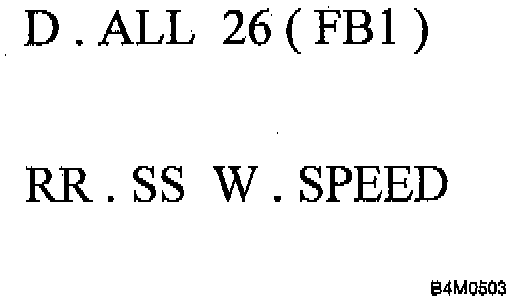

1. RR.SS W.SPEED
Irregular signals from rear right ABS sensor.

DIAGNOSIS:
^ Faulty ABS sensor signal (noise, irregular signal, etc.).
^ Faulty harness/connector.

TROUBLE SYMPTOM:
^ ABS and Traction Control System (TCS) do not operate.

NOTE: The procedures used are the same as those for FR:SS W.SPEED.

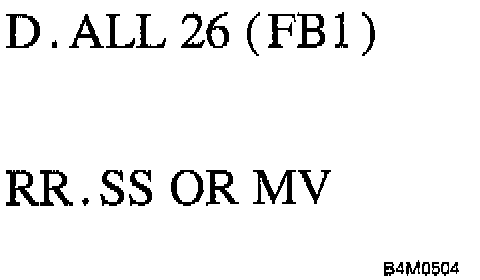

2. RR.SS OR MV
Irregular signals from rear right ABS sensor in decompressing mode.

DIAGNOSIS:
^ Faulty ABS sensor signal (noise, irregular signal, etc.).
^ Faulty hydraulic unit.
^ Faulty harness/connector.

TROUBLE SYMPTOM:
^ ABS and Traction Control System (TCS) do not operate.

NOTE: The procedures used are the same as those for FR.SS OR MV.

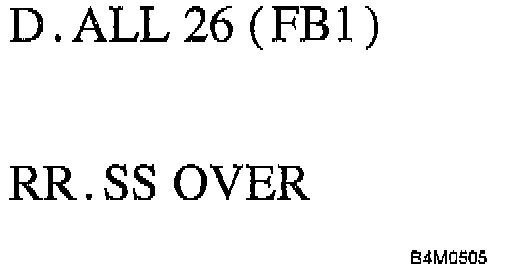

3. RR.SS OVER
Excessive speed of rear right ABS sensor signal.

DIAGNOSIS:
^ Faulty ABS sensor signal (noise, irregular signal, etc.).
^ Faulty harness/connector.

TROUBLE SYMPTOM:
^ ABS and Traction Control System (TCS) do not operate.

NOTE: The procedures used are the same as those for FR.SS OVER.
