ABS Trouble Code Charts For Select Monitor Results

TROUBLE CODE 25:

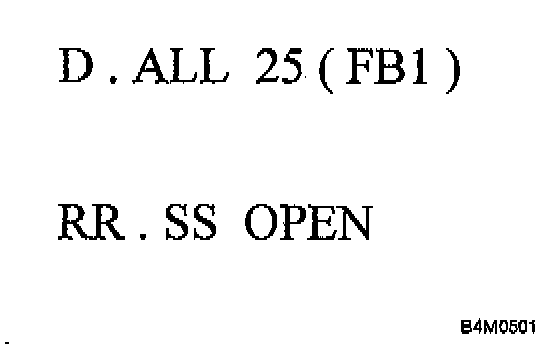

1. RR.SS OPEN
Faulty rear right ABS sensor (Open circuit).

DIAGNOSIS:
^ Faulty ABS sensor.
^ Faulty harness and connector.
^ Faulty ABS/Traction Control System (TCS) control module.

TROUBLE SYMPTOM:
^ ABS and TCS do not operate.

NOTE: The procedures used are the same as those for FR.SS OPEN.

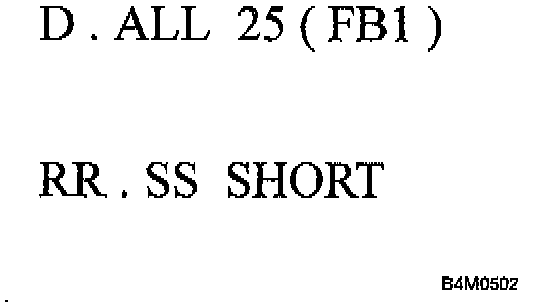

2. RR.SS SHORT
Faulty rear right ABS sensor (Short circuit).

DIAGNOSIS:
^ Faulty ABS sensor.
^ Faulty harness and connector.
^ Faulty ABS/TCS control module.

TROUBLE SYMPTOM:
^ ABS and TCS do not operate.

NOTE: The procedures used are the same as those for FR.SS SHORT.
