ABS Trouble Code Charts For Select Monitor Results

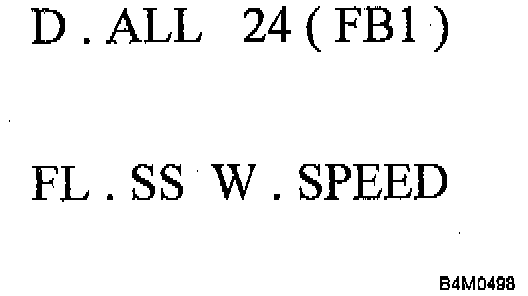

1. FL.SS W.SPEED
Irregular signals from front left ABS sensor.

DIAGNOSIS:
^ Faulty ABS sensor signal (noise, irregular signal, etc.).
^ Faulty harness/connector.

TROUBLE SYMPTOM:
^ ABS and Traction Control System (TCS) do not operate.

NOTE: The procedures used are the same as those for FR.SS W.SPEED.





2. FL.SS OR MV
Irregular signals from front left ABS sensor in decompressing mode.

DIAGNOSIS:
^ Faulty ABS sensor signal (noise, irregular signal, etc.).
^ Faulty hydraulic unit.
^ Faulty harness/connector.

TROUBLE SYMPTOM:
^ ABS and TCS do not operate.

NOTE: The procedures used are the same as those for FR.SS OR MV.

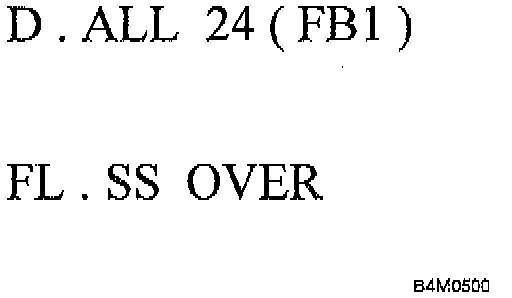

3. FL.SS OVER
Excessive speed of front left ABS sensor signal.

DIAGNOSIS:
^ Faulty ABS sensor signal(noise, irregular signal, etc.).
^ Faulty harness/connector.

TROUBLE SYMPTOM:
^ ABS and TCS do not operate.

NOTE: The procedures used are the same as those for FR.SS OVER.
