ABS Trouble Code Charts For Select Monitor Results

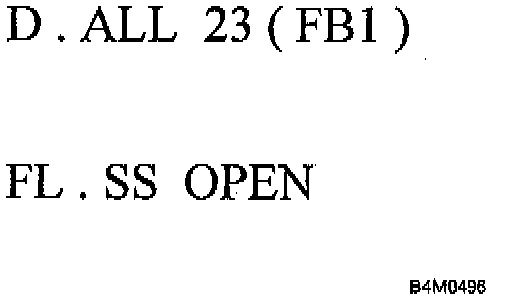

1. FL. SS OPEN
Faulty front left ABS sensor (Open circuit).

DIAGNOSIS:
^ Faulty ABS sensor.
^ Faulty harness and connector.
^ Faulty ABS/Traction Control System (TCS) control module.

TROUBLE SYMPTOM:
^ ABS and TCS do not operate.

NOTE: The procedures used are the same as those for FR.SS OPEN.





2. FL. SS SHORT
Faulty front left ABS sensor (Short circuit).

DIAGNOSIS:
^ Faulty ABS sensor.
^ Faulty harness and connector.
^ Faulty ABS/Traction Control System (TCS) control module.

TROUBLE SYMPTOM:
^ ABS and TCS do not operate.

NOTE: The procedures used are the same as those for FR. SS SHORT.
