ABS Trouble Code Charts For Select Monitor Results

1. FR.SS OPEN
Faulty front right ABS sensor (Open circuit).

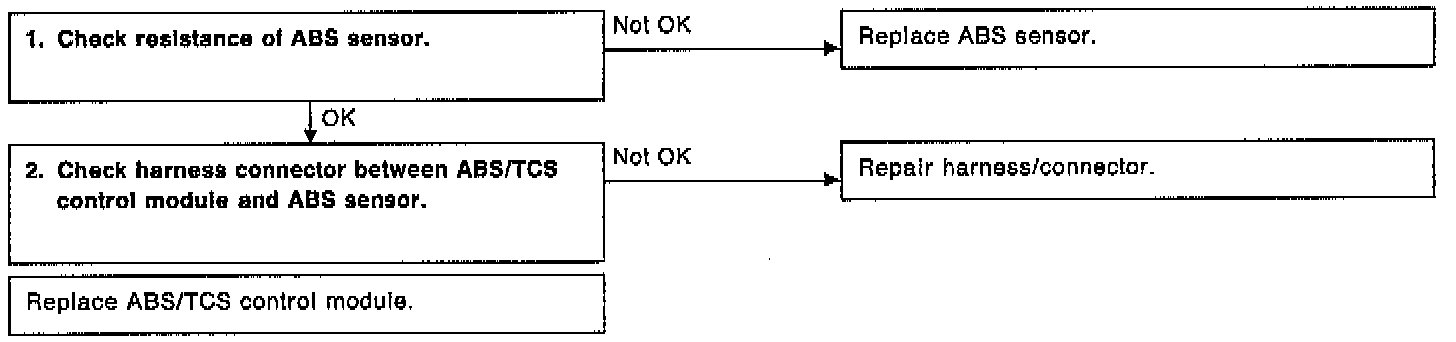

DIAGNOSIS:
^ Faulty ABS sensor.
^ Faulty harness and connector.
^ Faulty ABS/Traction Control System (TCS) control module.

TROUBLE SYMPTOM:
^ ABS does not operate.
^ TCS does not operate.





NOTE: When checking ABS sensor, carefully bend or swing connector and harness to check for improper contacts or open circuits.

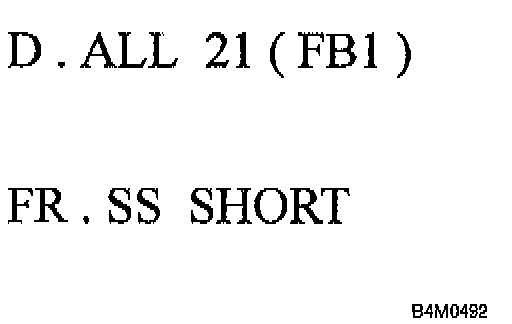

2. FR.SS SHORT
Faulty front right ABS sensor (Short circuit).

DIAGNOSIS:
^ Faulty ABS sensor.
^ Faulty harness and connector.
^ Faulty ABS/TCS control module.

TROUBLE SYMPTOM:
^ ABS does not operate.
^ TCS does not operate.





NOTE: When checking ABS sensor, carefully bend or swing connector and harness to check for improper contacts or open circuits.
