Test 1OD3
TEST 1OD3: CHECK ABSCM & H/U

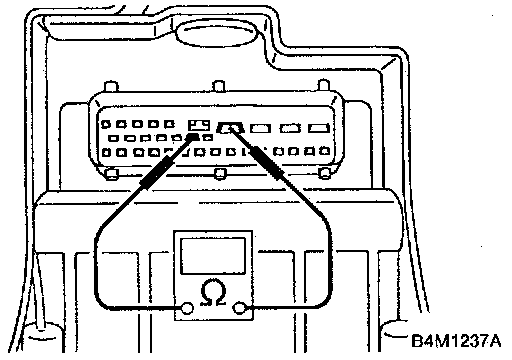

Measure resistance between ABS Control Module (ABSCM) & Hydraulic Unit (H/U) terminals.
Terminals: No. 21 & No. 23
CHECK: Is the resistance more than 1 M ohm?
YES: Test 10D4
NO: Replace valve relay.
TEST 1OD3: CHECK ABSCM & H/U
Measure resistance between ABS Control Module (ABSCM) & Hydraulic Unit (H/U) terminals.
Terminals: No. 21 & No. 23
CHECK: Is the resistance more than 1 M ohm?
YES: Test 10D4
NO: Replace valve relay.
