Extension Section

1. Take out the transfer clutch by lightly tapping the end of the rear drive shaft
- Be careful not to damage the oil seal in the extension.

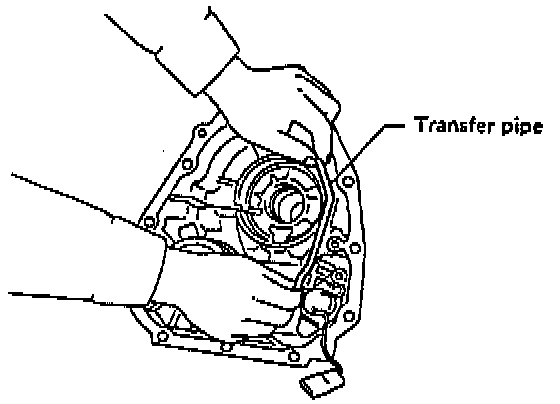

2. Remove the transfer pipe. Be careful not to bend the pipe.

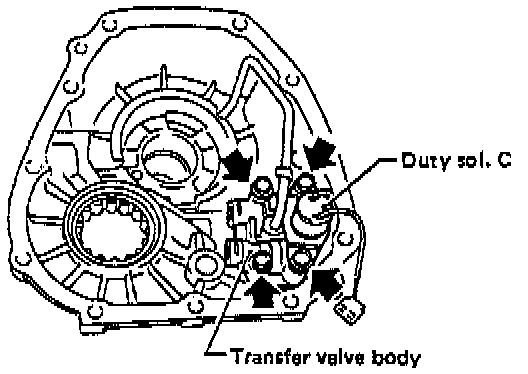

3. Remove duty solenoid C and the transfer valve body.
a. Take out the inlet filter.
b. Do not damage the O-ring.





4. Take out the roller bearing.
