A/T Technical Data
>>
Service
Service

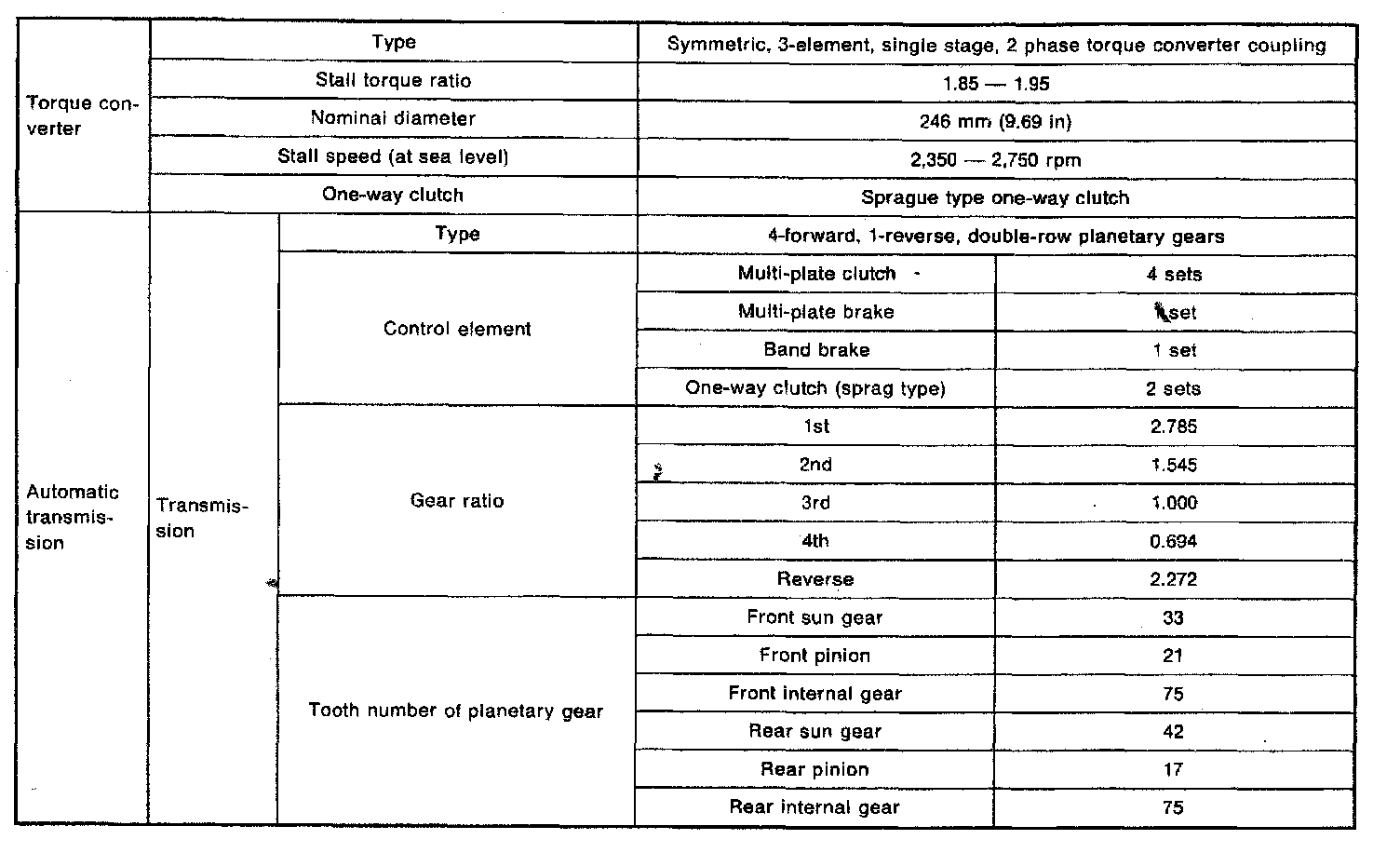

4-spd A/T, Transmission Gear Ratios:

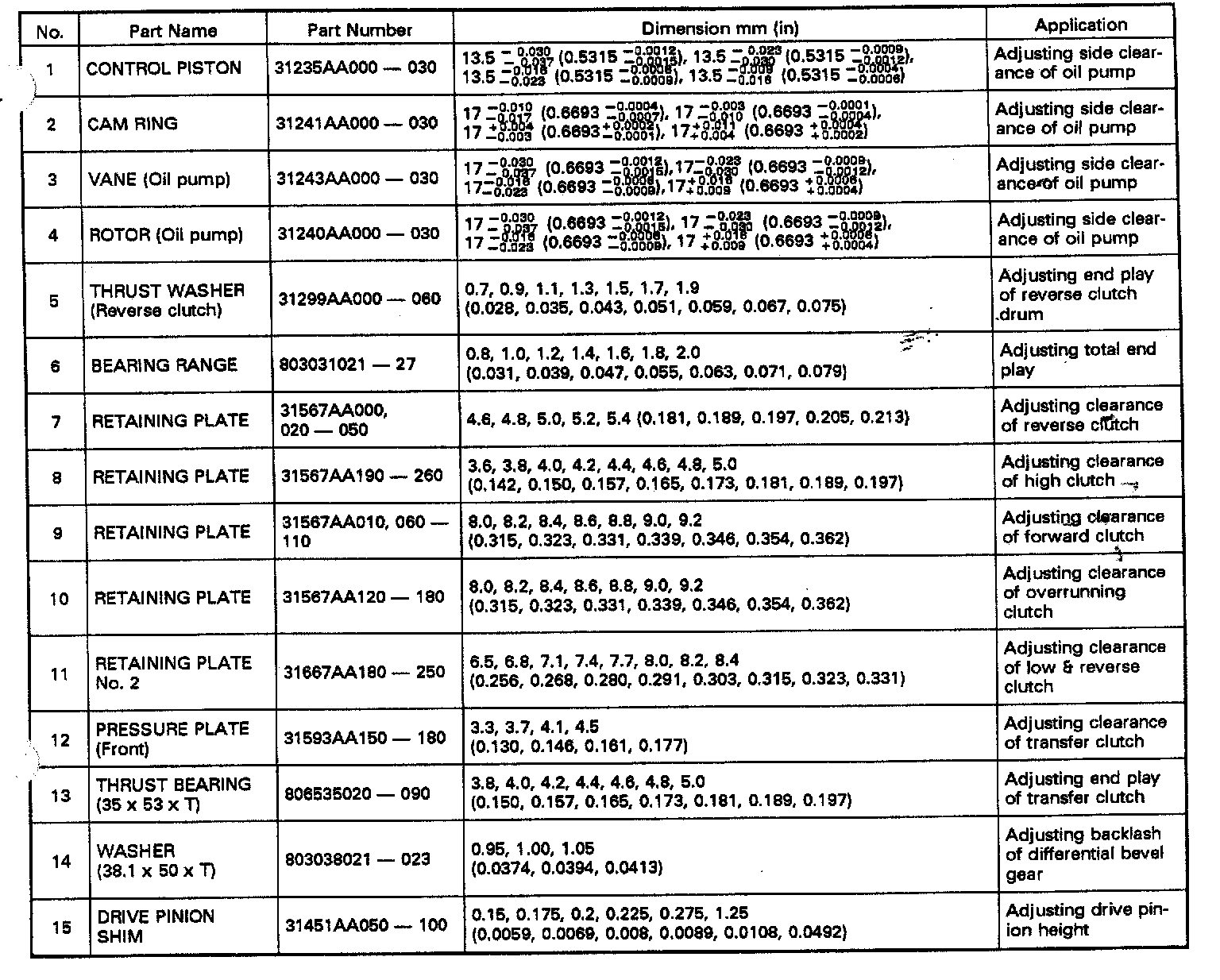

4-spd A/T, Transmission & Final Reduction Service Data:

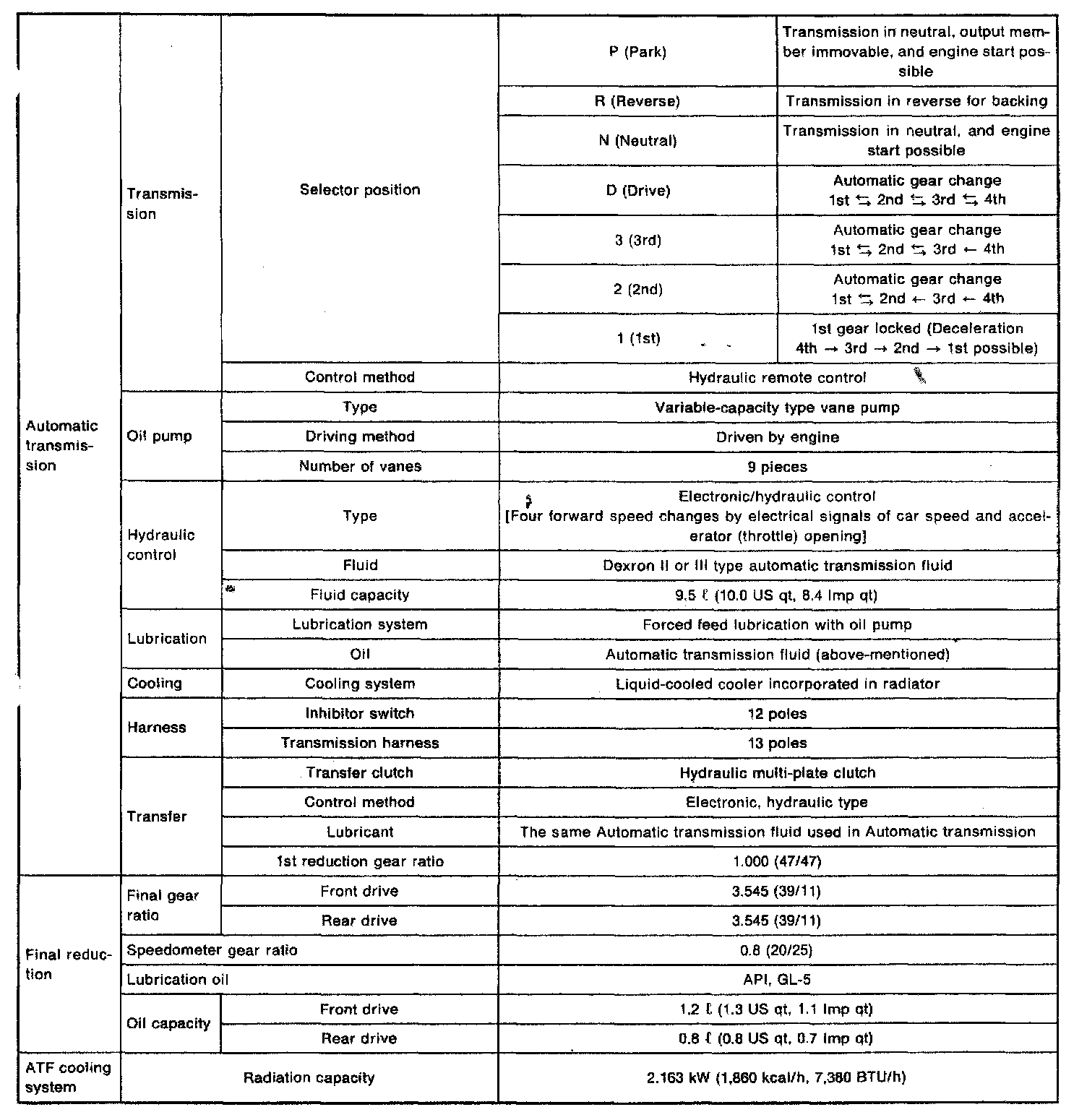

4-spd A/T, Transmission Dimension & Application:
