Harness Locations

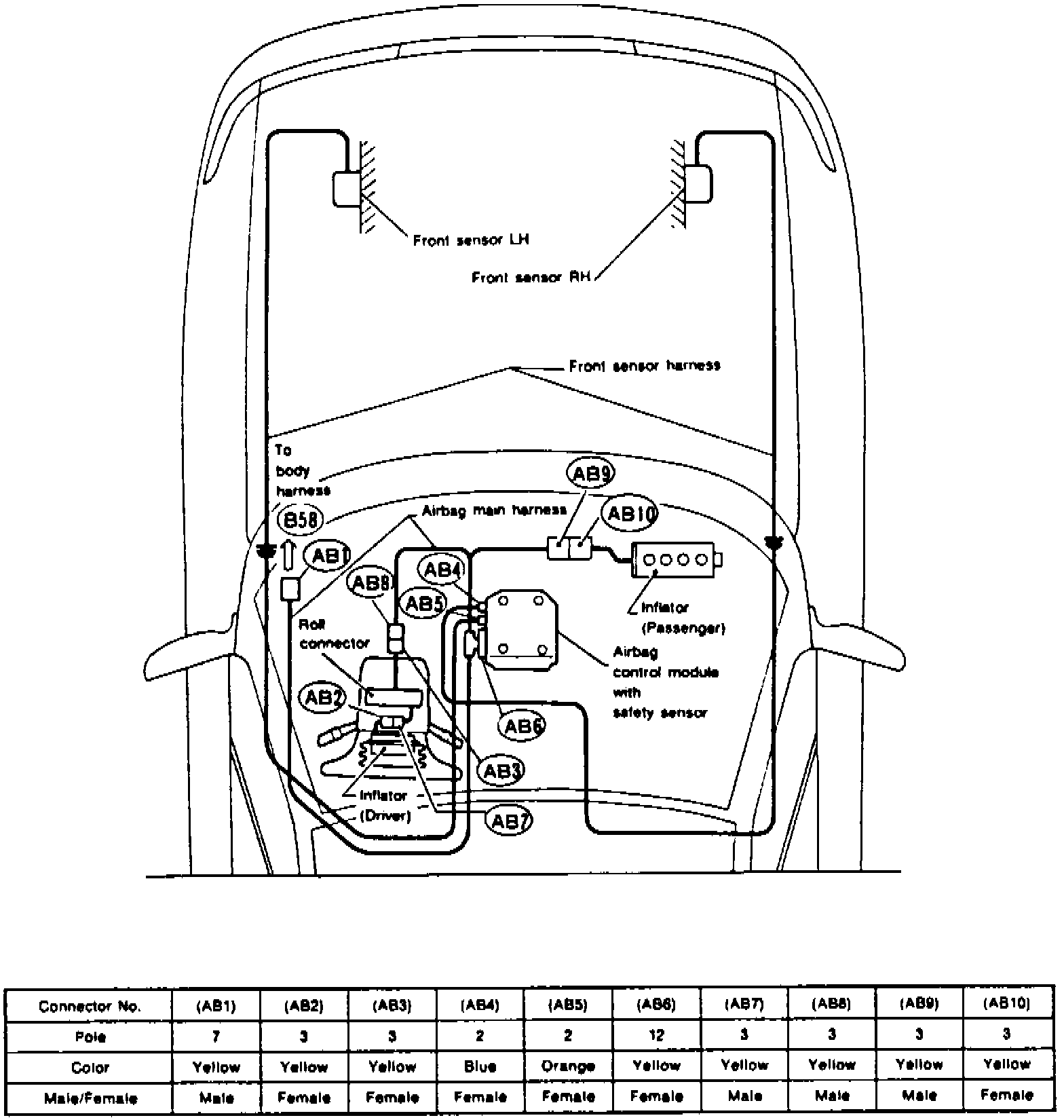

Fig. 23 SRS Wiring Harness Connector Locations:




Refer to Fig. 23, for system wiring harness locations.
