Home >> Subaru >> 1996 >> SVX AWD L6-3.3L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Mode Tests >> Mode 02 - Speed Sensor 1 (VSP 1)

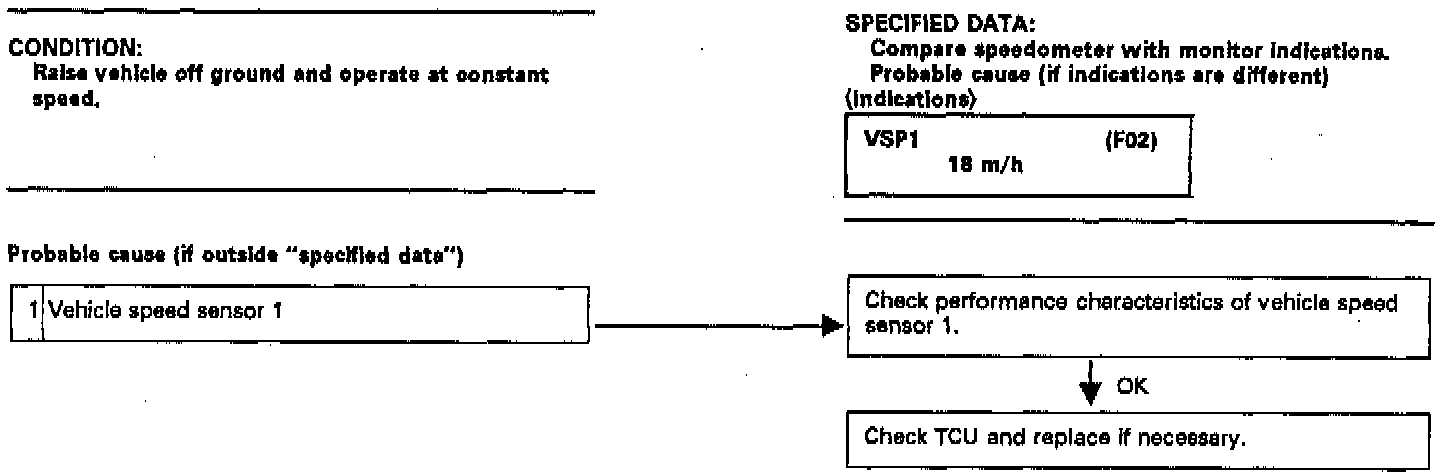

Mode 02 - Speed Sensor 1 (VSP 1)
