Home >> Subaru >> 1996 >> SVX AWD L6-3.3L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Mode Tests >> FA1 Mode - Switch 2 (SW2)

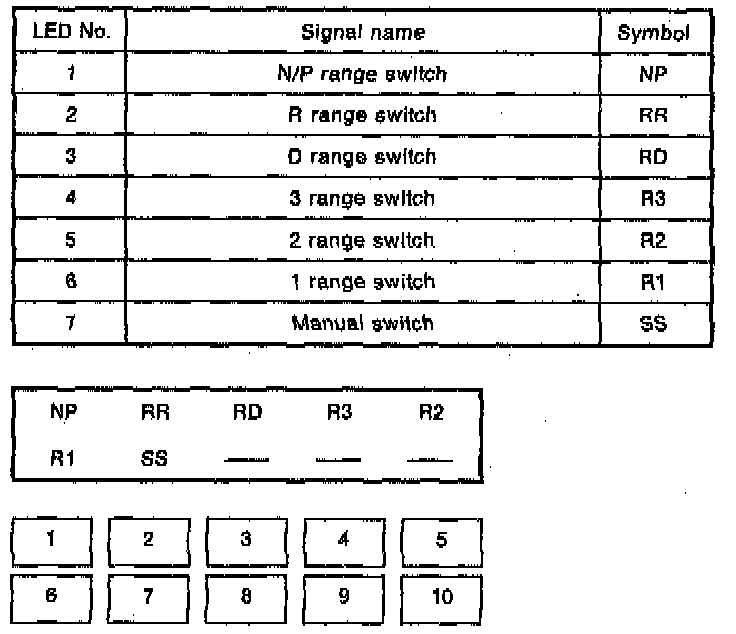

FA1 Mode - Switch 2 (SW2)
