Throttle Body: Service and Repair

REMOVAL AND INSTALLATION

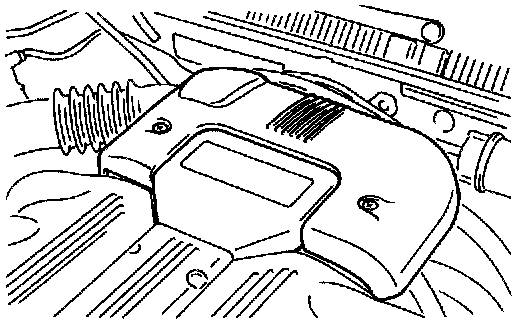

1) Remove collector cover.

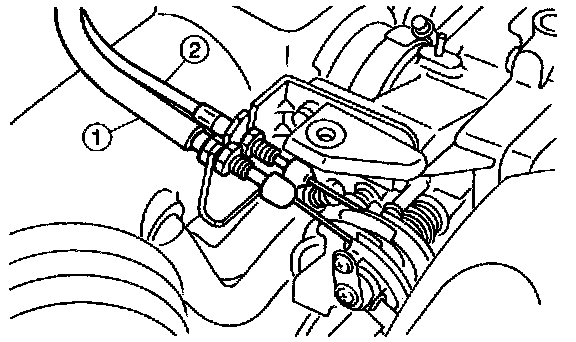

2) Disconnect cruise control cable (1).
3) Disconnect accelerator cable (2).
4) Loosen clamps which connect air intake duct to throttle body and mass air flow sensor.

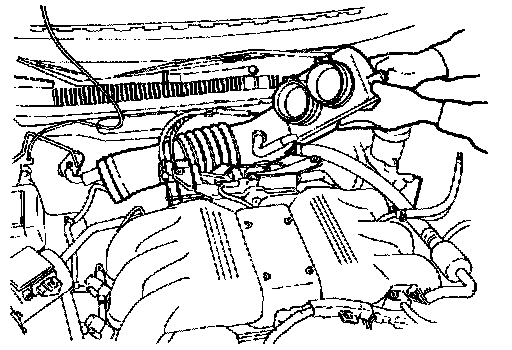

5) Remove air intake duct.

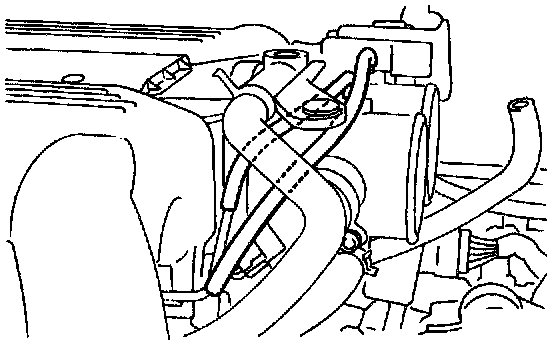

6) Disconnect vacuum hoses from throttle body.

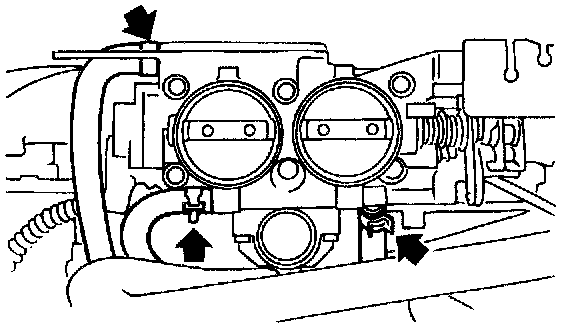

7) Disconnect engine coolant hoses and air hose from throttle body.








8) Disconnect connectors from throttle position sensor and idle air control solenoid valve.

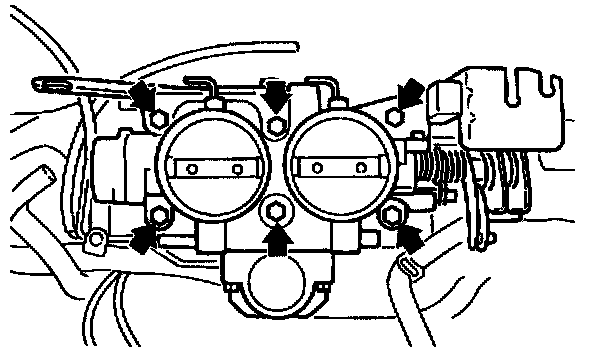

9) Remove bolts which install throttle body to collector chamber.
10) Installation is in the reverse order of removal.

CAUTION: Replace gasket with a new one.

Tightening torque: 22 ± 2 N.m (15.9 ± 1.4 ft-lb)
