Removal and Installation

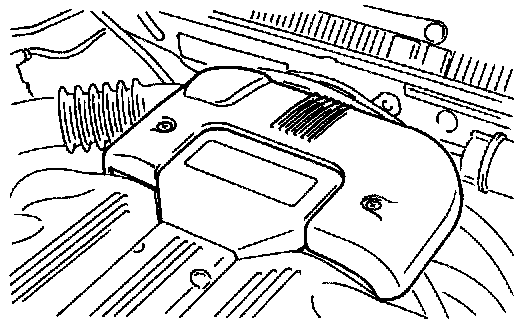

1) Remove collector cover.

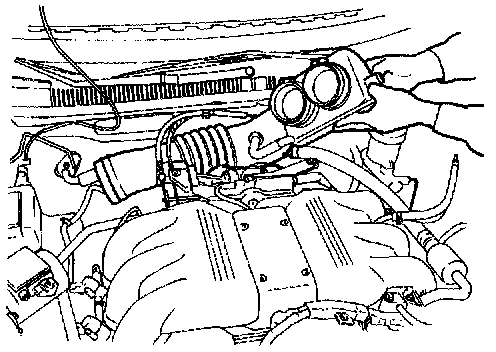

2) Remove air intake duct.

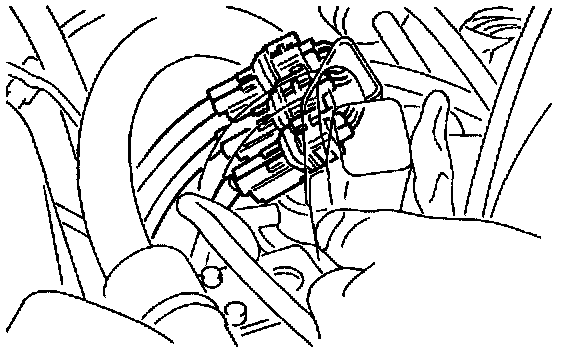

3) Disconnect engine harness connectors.
4) Remove bolt from engine harness connector bracket, then position the bracket away from its original position.

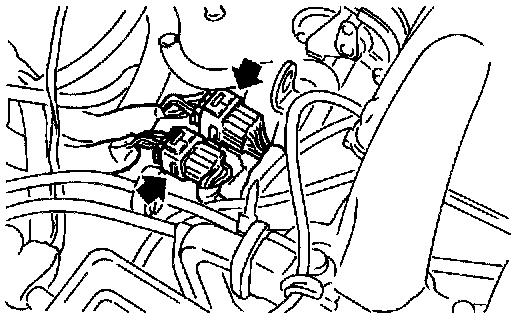

5) Disconnect ignition coil connectors (engine RH).

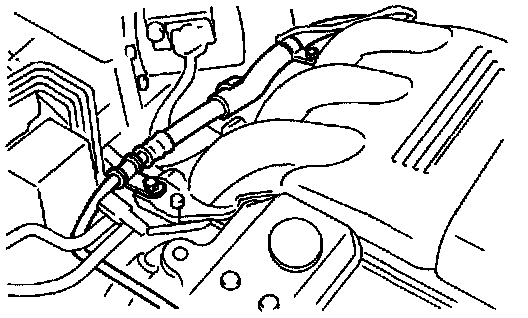

6) Remove bolts which install power steering hose bracket to engine, and position the hose away from engine.

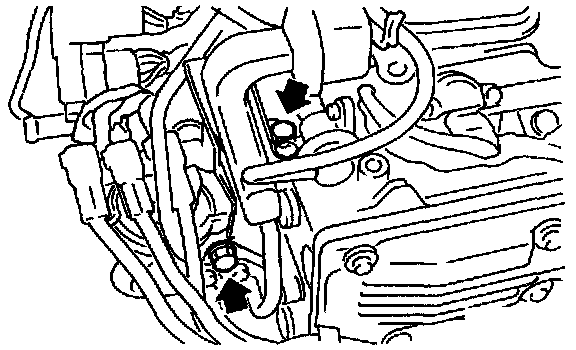

7) Remove bolts which install BPT bracket to cylinder block.

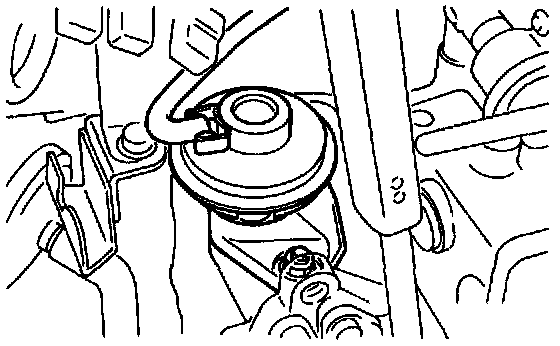

8) Disconnect vacuum hose from EGR valve.
9) Remove nuts which install EGR valve, then remove EGR valve and gasket.
10) Installation is in the reverse order of removal.

CAUTION: Replace gasket with a new one.

Torque: 19 ± 1.5 N.m (13.7 ± 1.1 ft-lb)
