P1702

DTC P1702 - AUTOMATIC TRANSMISSION DIAGNOSIS INPUT SIGNAL (ATDIAG) CIRCUIT MALFUNCTION


DTC DETECTING CONDITION: Two consecutive trips with fault

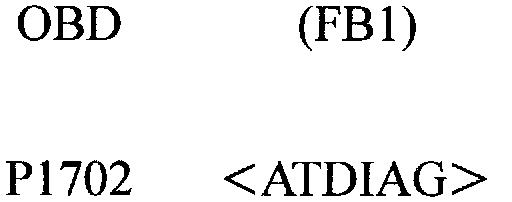

SUBARU SELECT MONITOR DISPLAY

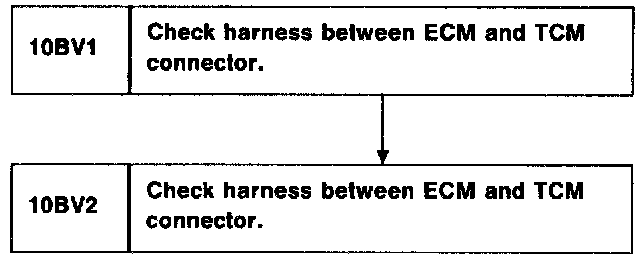

FLOW CHART

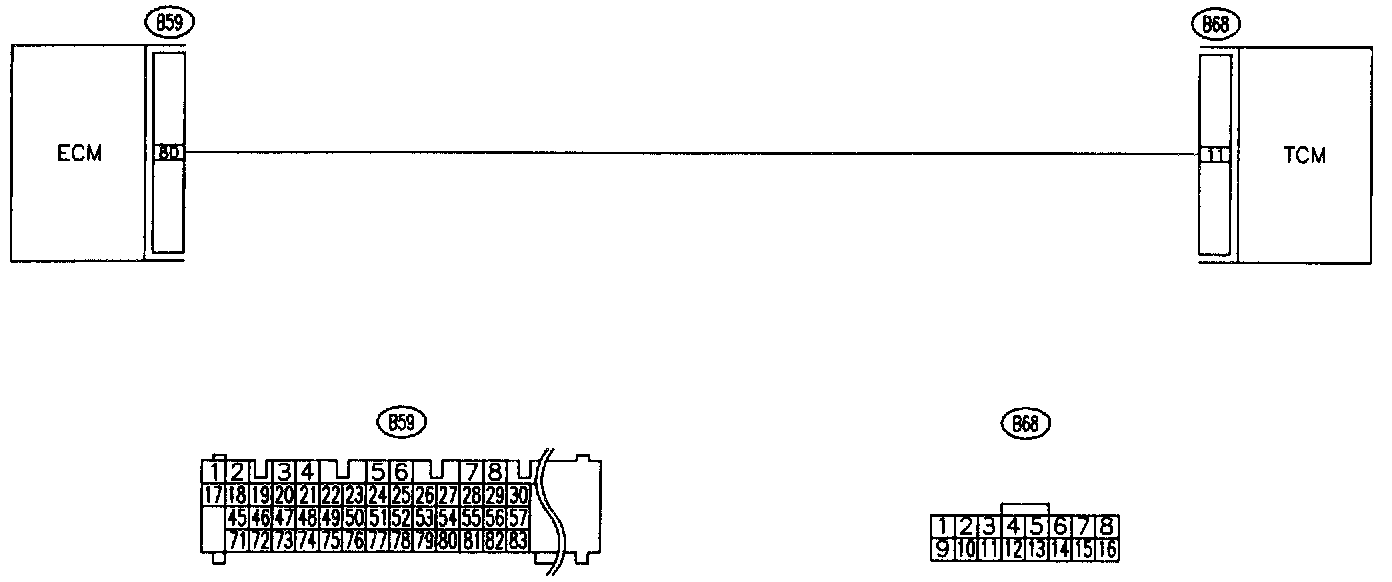

WIRING DIAGRAM

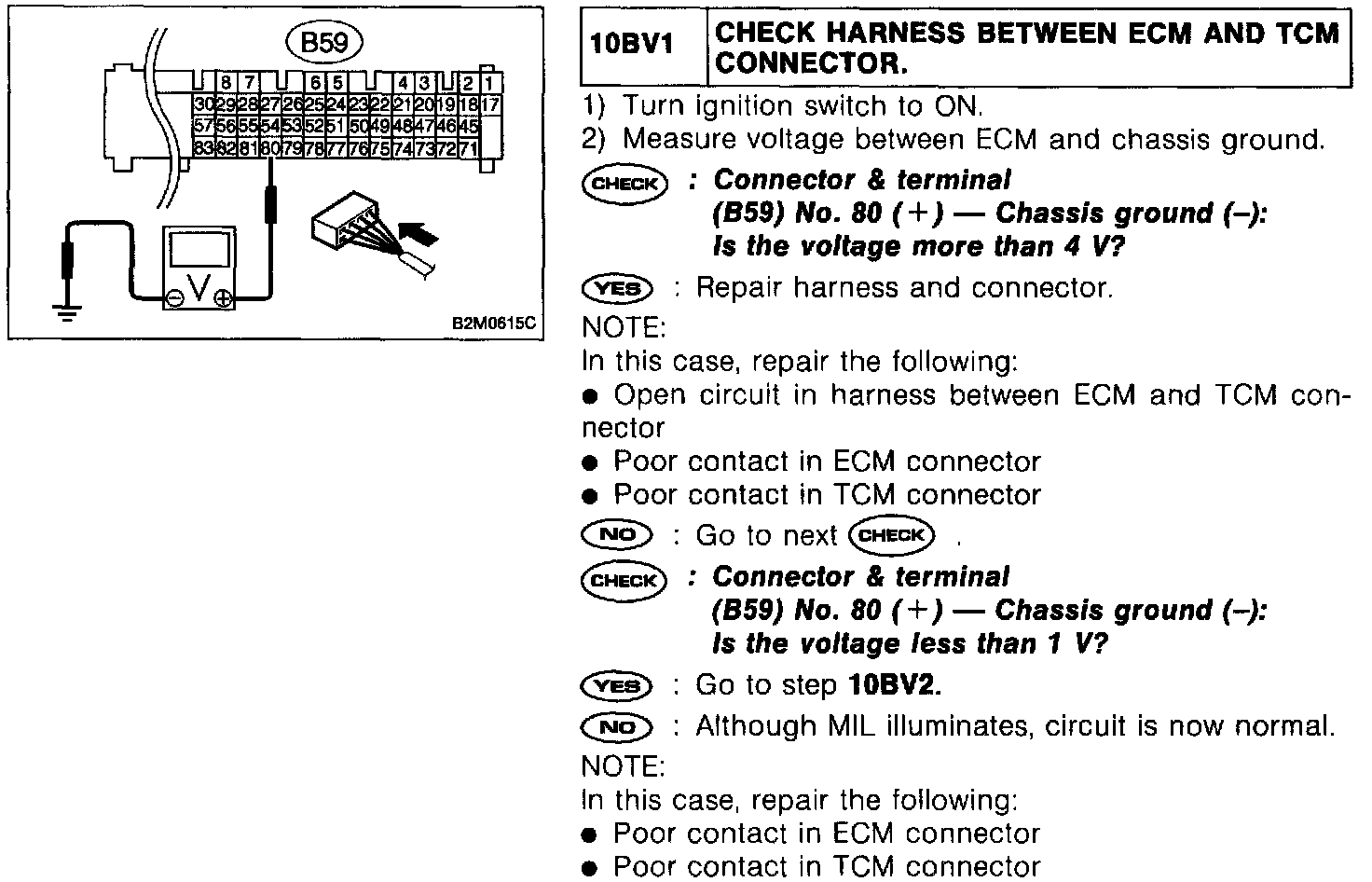

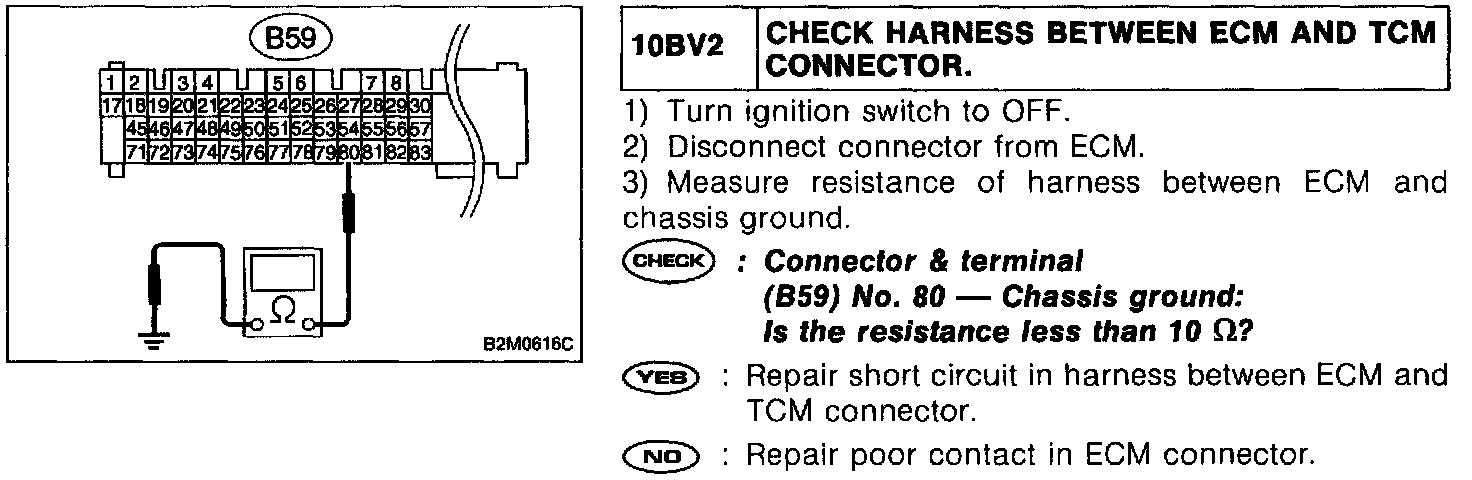

PROCEDURES









CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.
