P1300

DTC P1300 - CRANKSHAFT POSITION SENSOR 2 CIRCUIT MALFUNCTION (CRANK2)

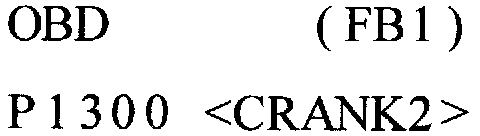

SUBARU SELECT MONITOR DISPLAY

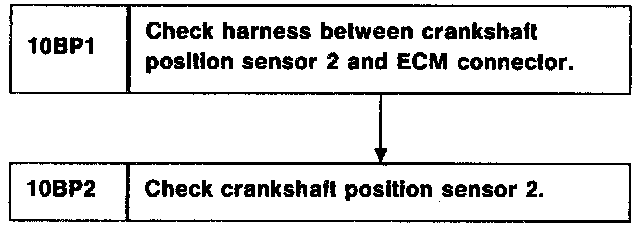

FLOW CHART

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Engine stalls.
- Failure of engine to start

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM

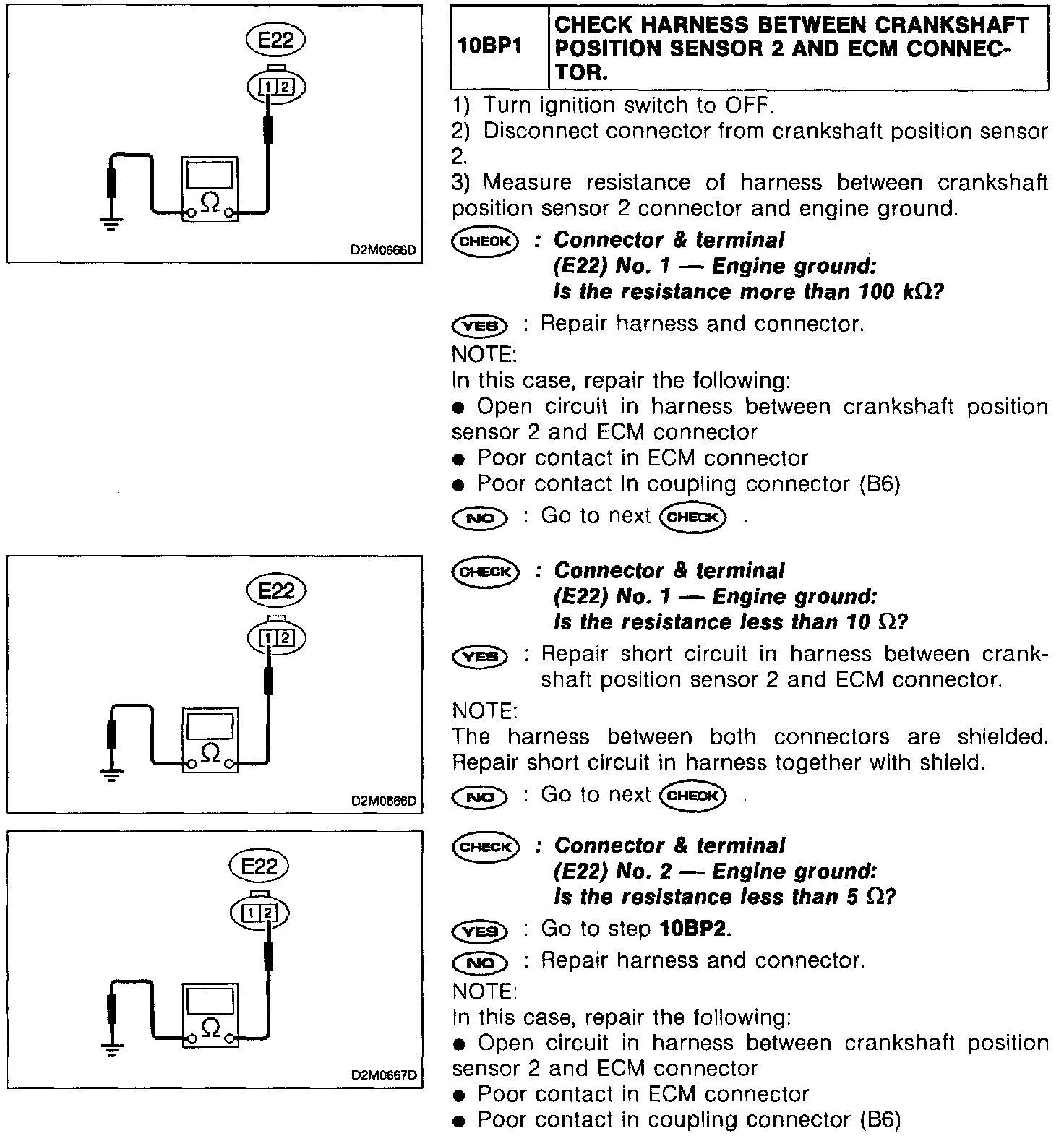

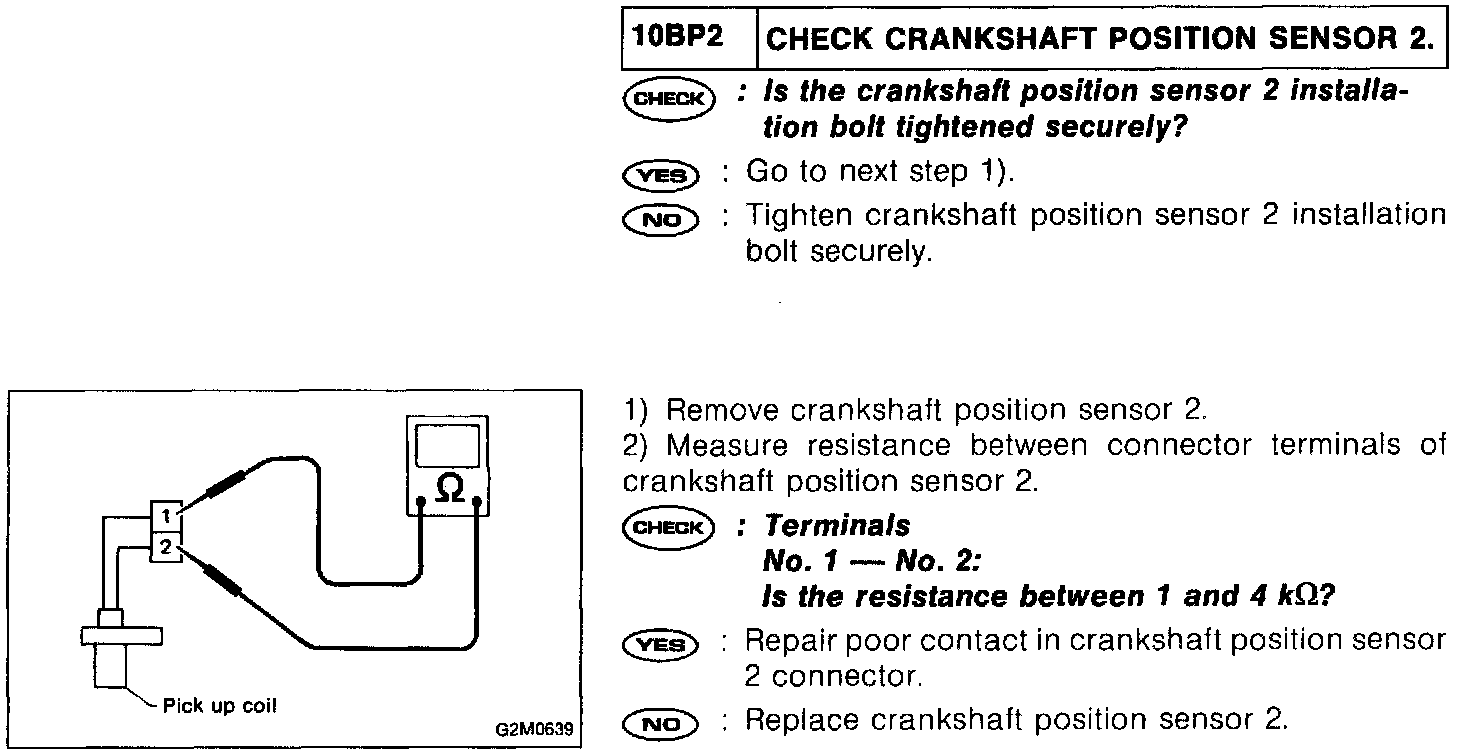

PROCEDURES
