P0710

DTC P0710b - TRANSMISSION FLUID TEMPERATURE SENSOR CIRCUIT MALFUNCTION (ATF)

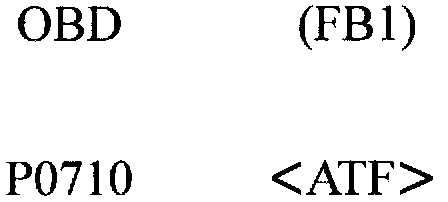

SUBARU SELECT MONITOR DISPLAY

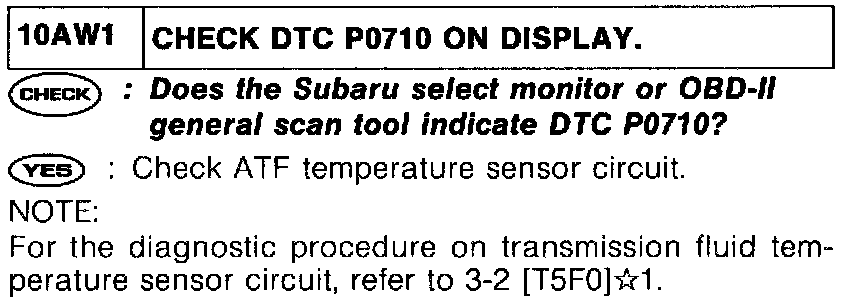

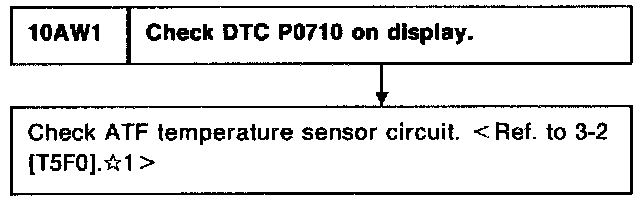

FLOW CHART

DTC DETECTING CONDITION:
- Two consecutive trips with fault

TROUBLE SYMPTOM:
- No shift up to 4th speed (after engine warm-up)
- No lock-up (after engine warm-up)
- Excessive shift shock

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

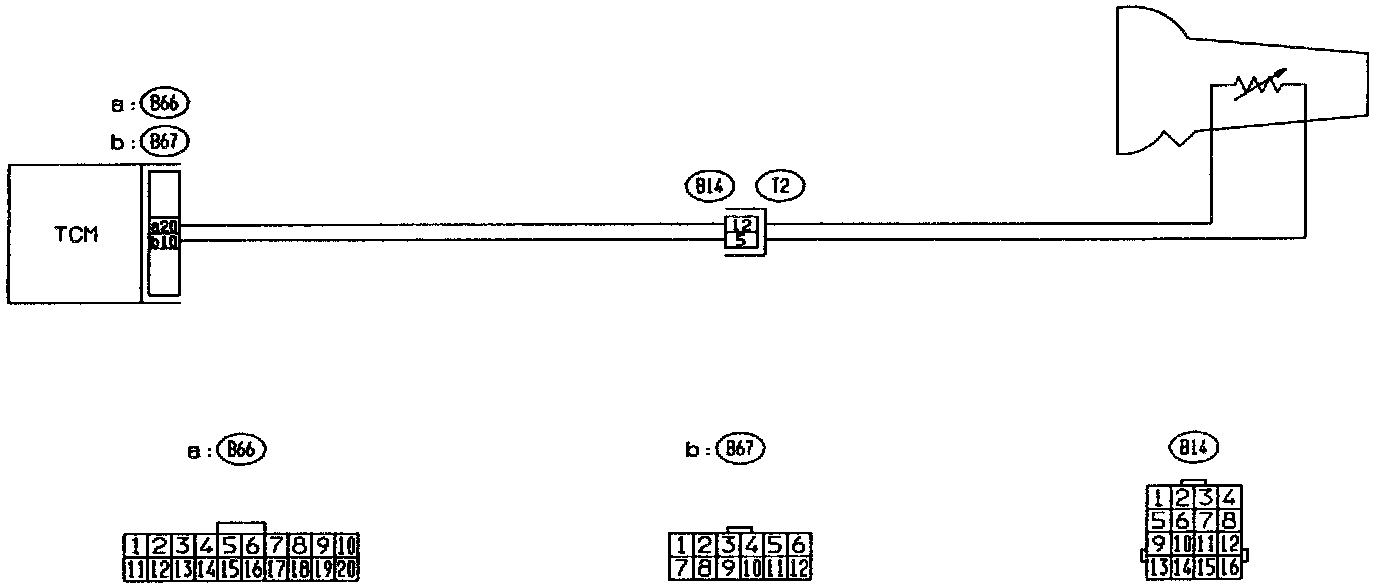

WIRING DIAGRAM:
