P0507

DTC P0507 - IDLE CONTROL SYSTEM RPM HIGHER THAN EXPECTED (ISC-HI)

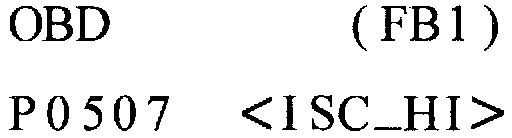

SUBARU SELECT MONITOR DISPLAY

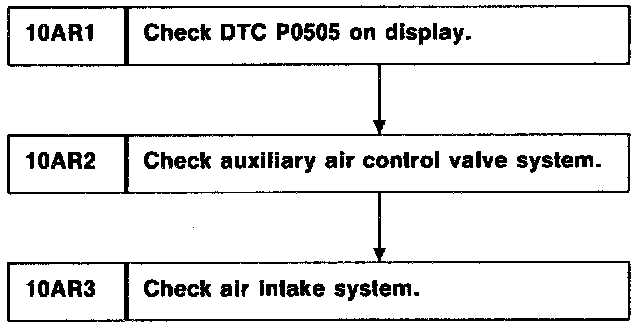

FLOW CHART

DTC DETECTING CONDITION:
- Two consecutive trips with fault

TROUBLE SYMPTOM:
- Engine keeps running at higher revolution than specified idling revolution.

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES

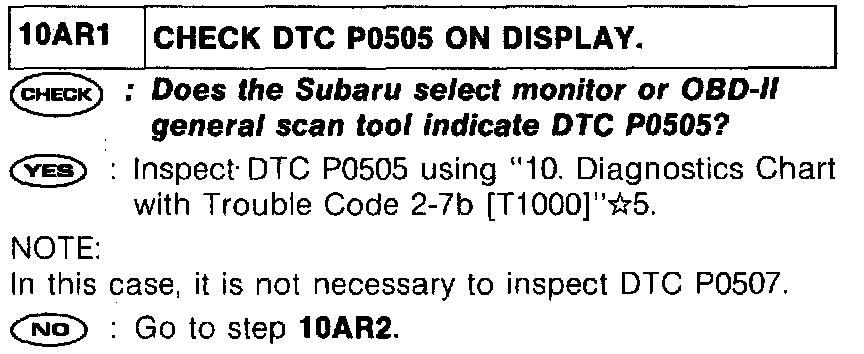

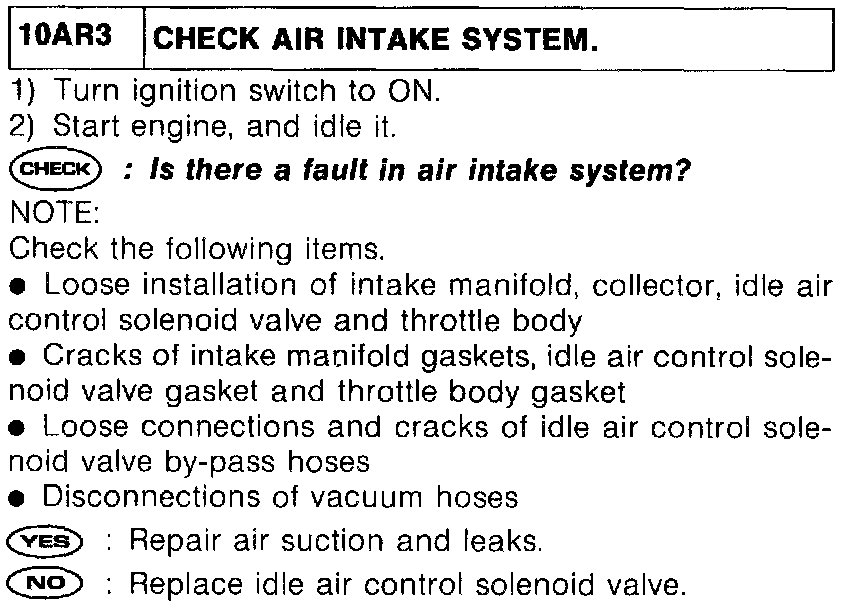

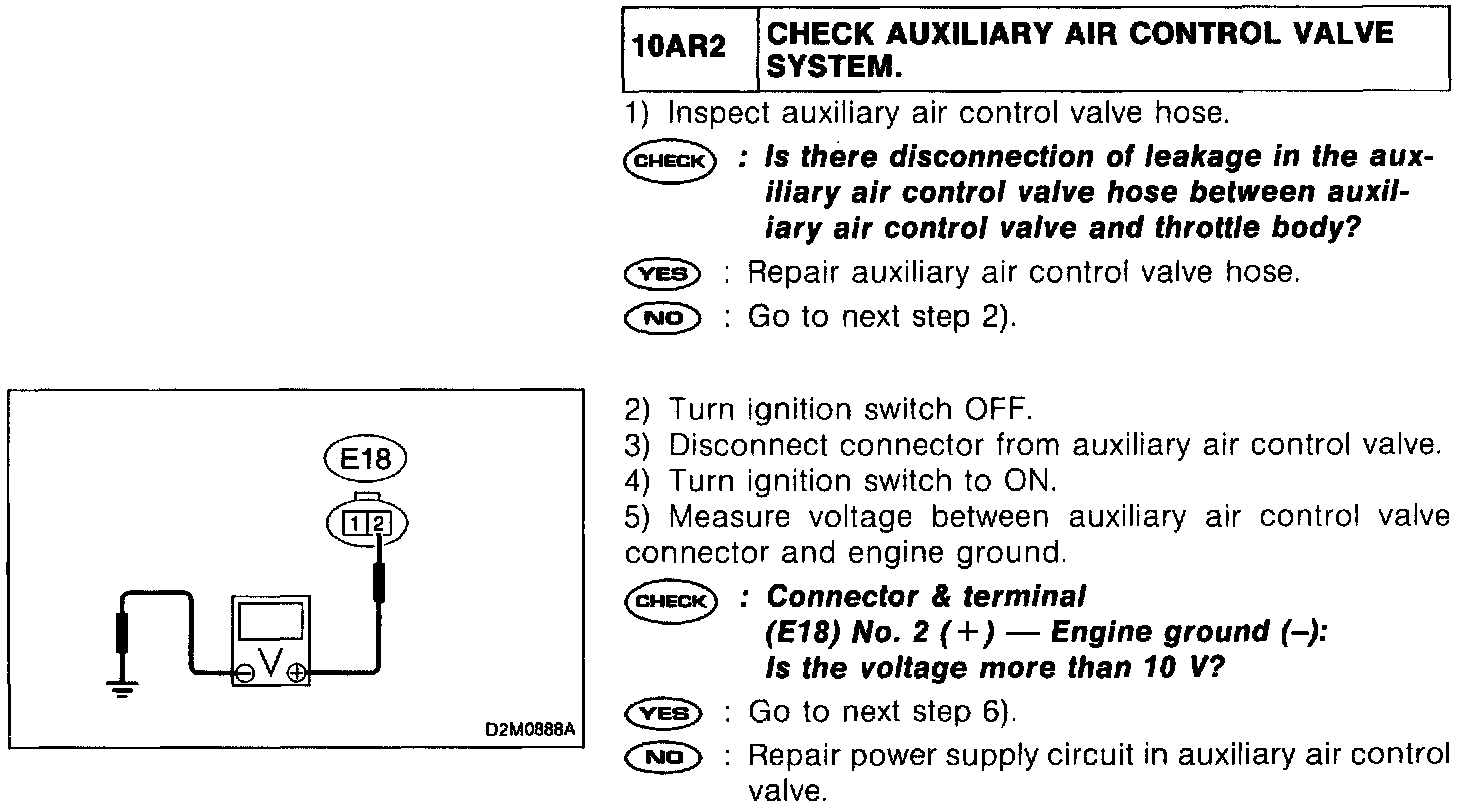

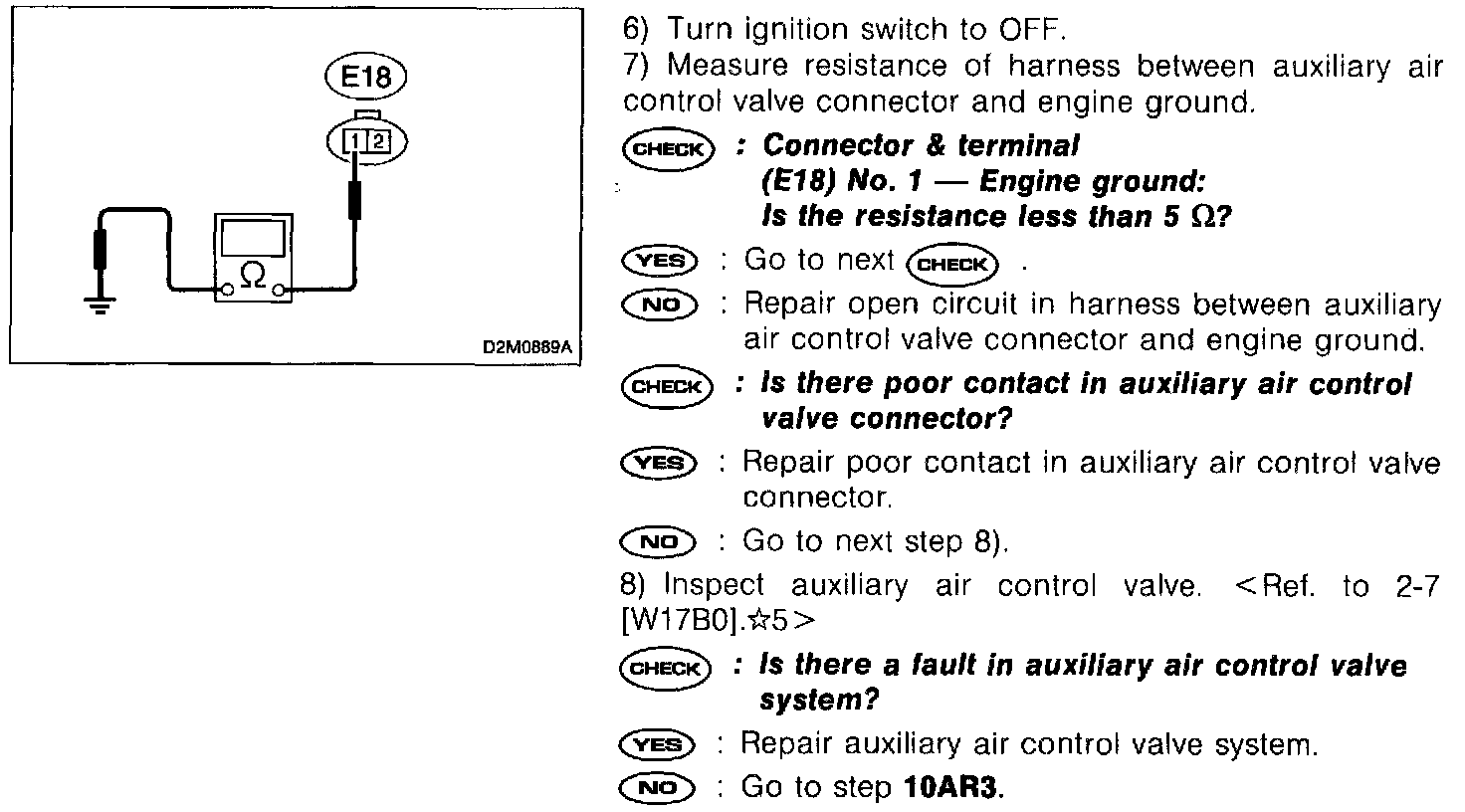

PROCEDURES
