P0330

DTC P0330 - KNOCK SENSOR 2 CIRCUIT MALFUNCTION (KNOCK2)

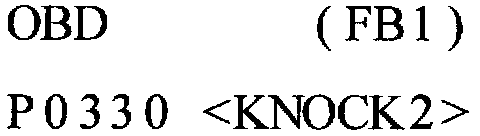

SUBARU SELECT MONITOR DISPLAY





FLOW CHART

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Poor driving performance
- Knocking occurs.

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM

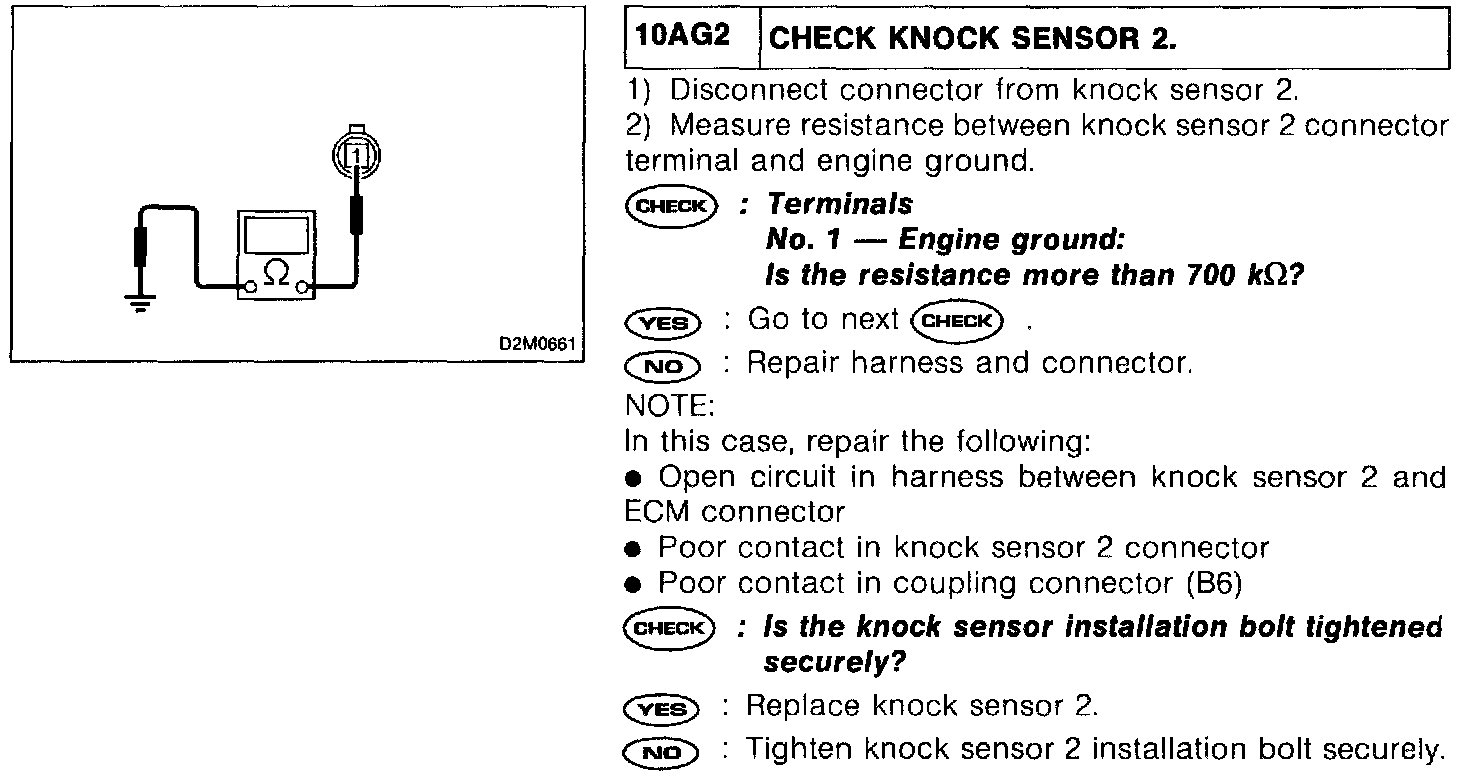

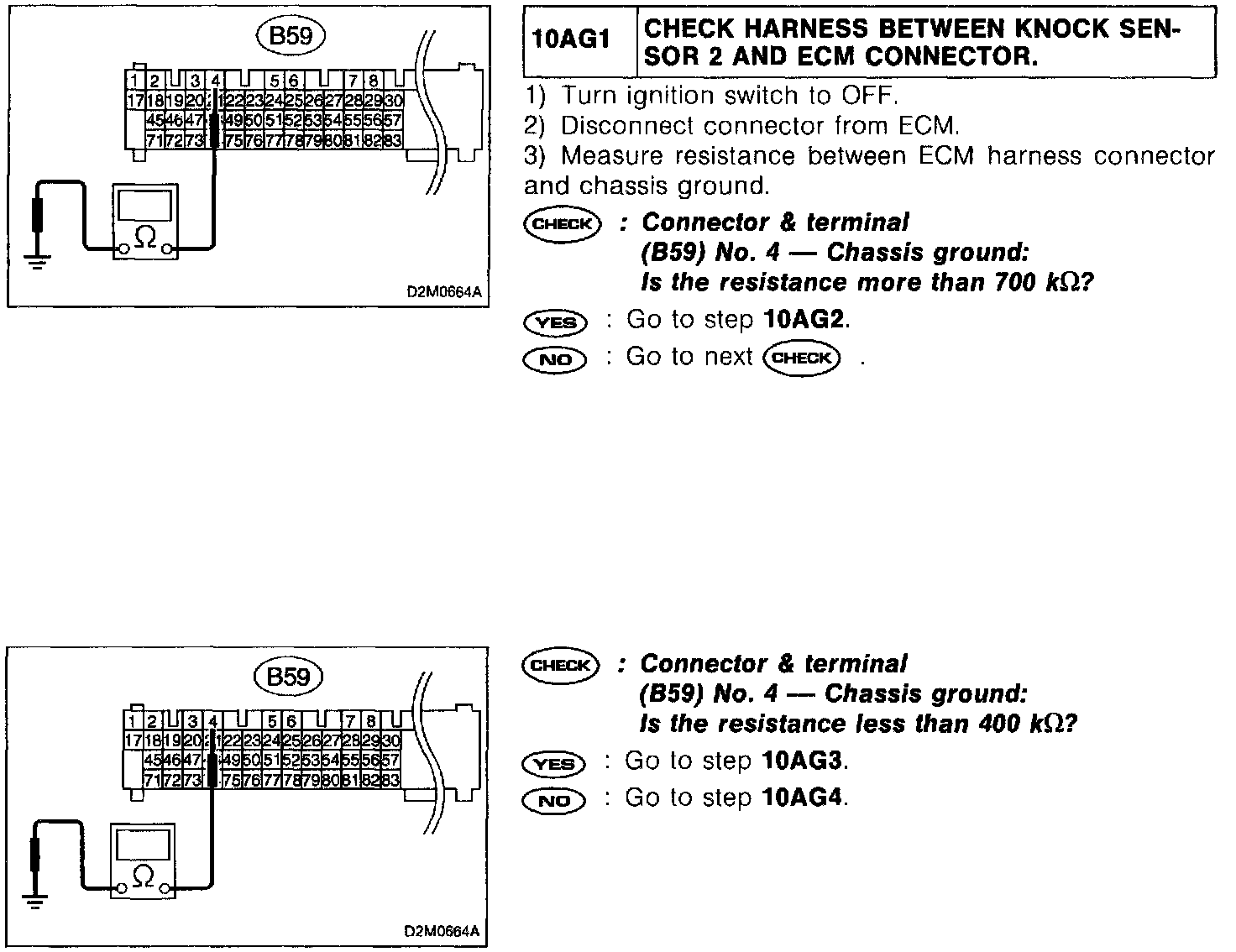

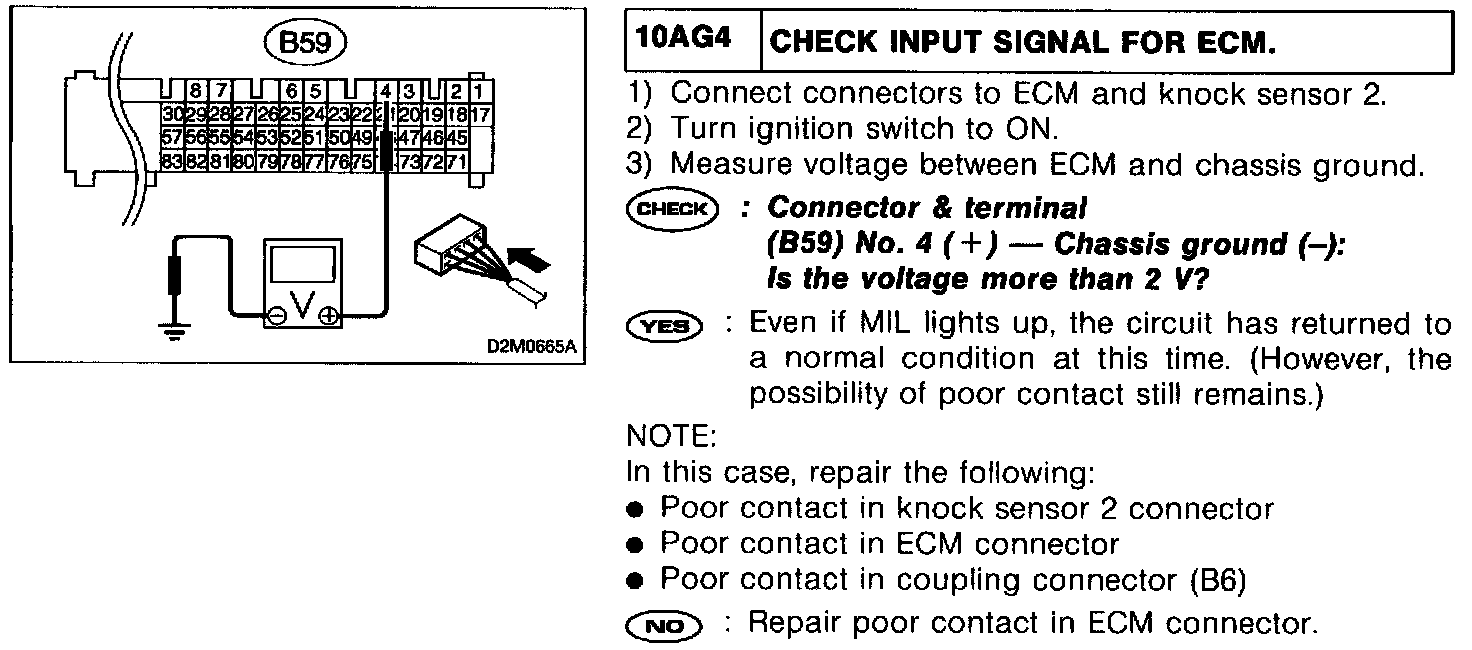

PROCEDURES
