P0301

DTC P0301 - CYLINDER 1 MISFIRE DETECTED (MIS-I)

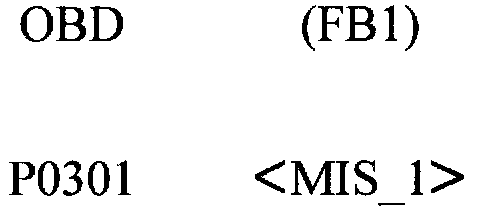

SUBARU SELECT MONITOR DISPLAY





FLOW CHART

DTC DETECTING CONDITION:
- Two consecutive trips with fault
- Immediately at fault recognition (A misfire which could damage catalyst occurs.)

TROUBLE SYMPTOM:
- Engine stalls.
- Erroneous idling
- Rough driving

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM



































PROCEDURES
