P0141

DTC P0141 REAR OXYGEN SENSOR HEATER CIRCUIT MALFUNCTION (RO2H)

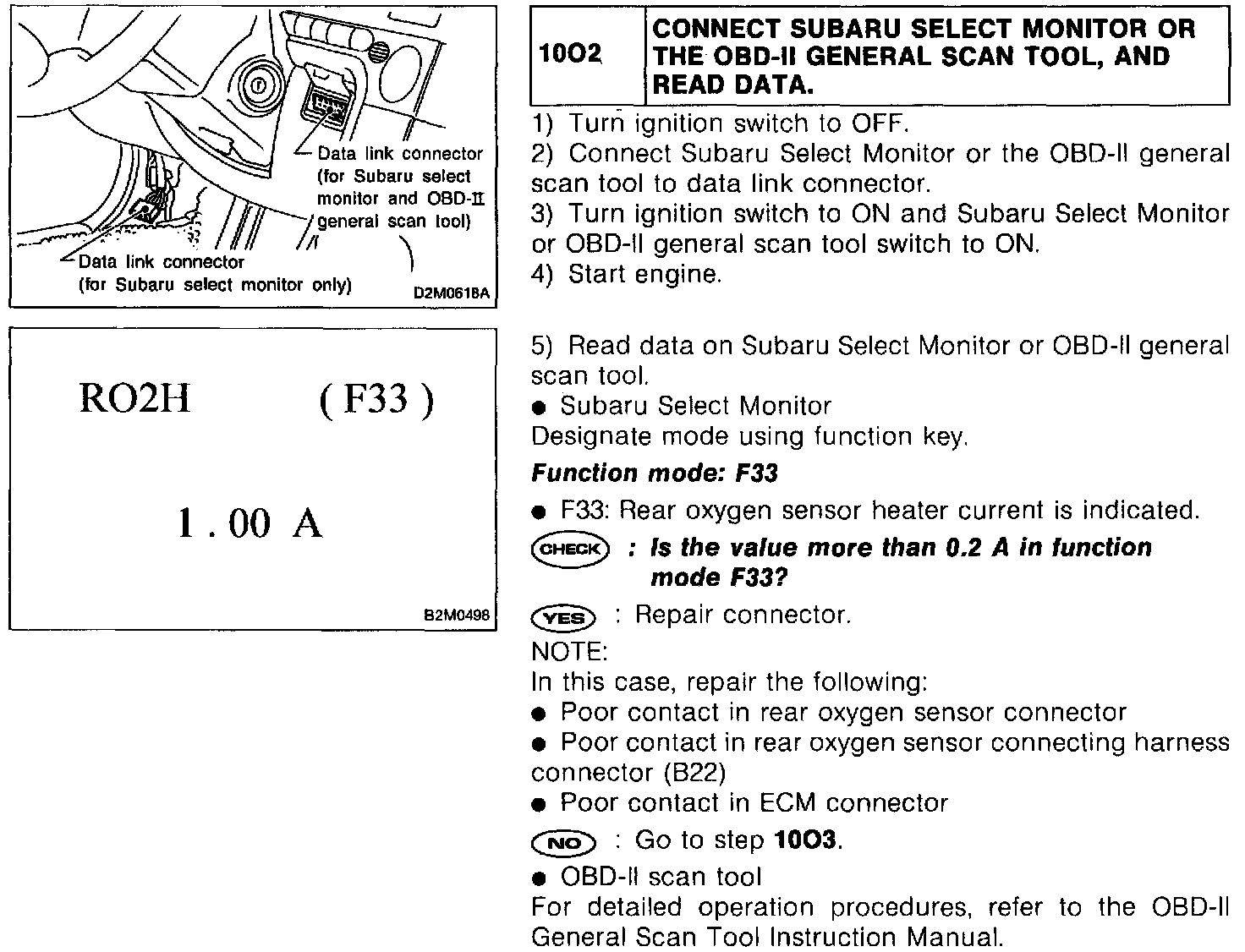

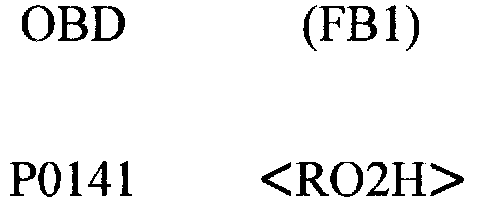

SUBARU SELECT MONITOR DISPLAY

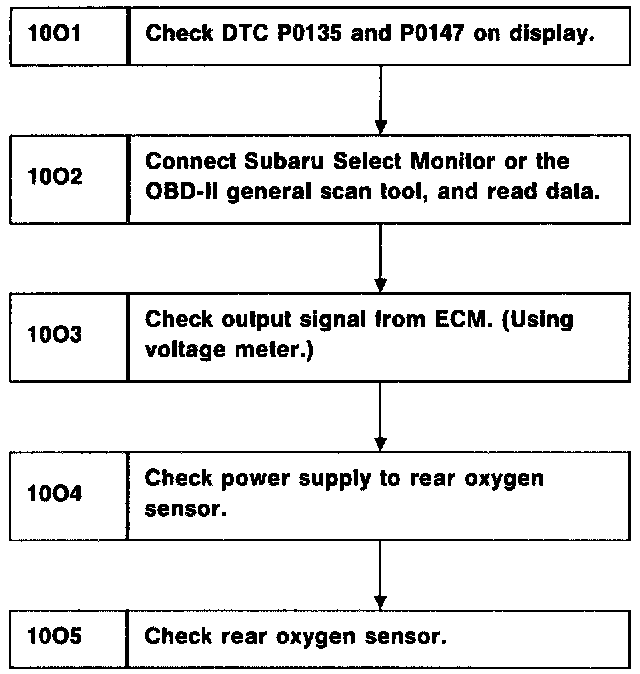

FLOW CHART

DTC DETECTING CONDITION:
- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

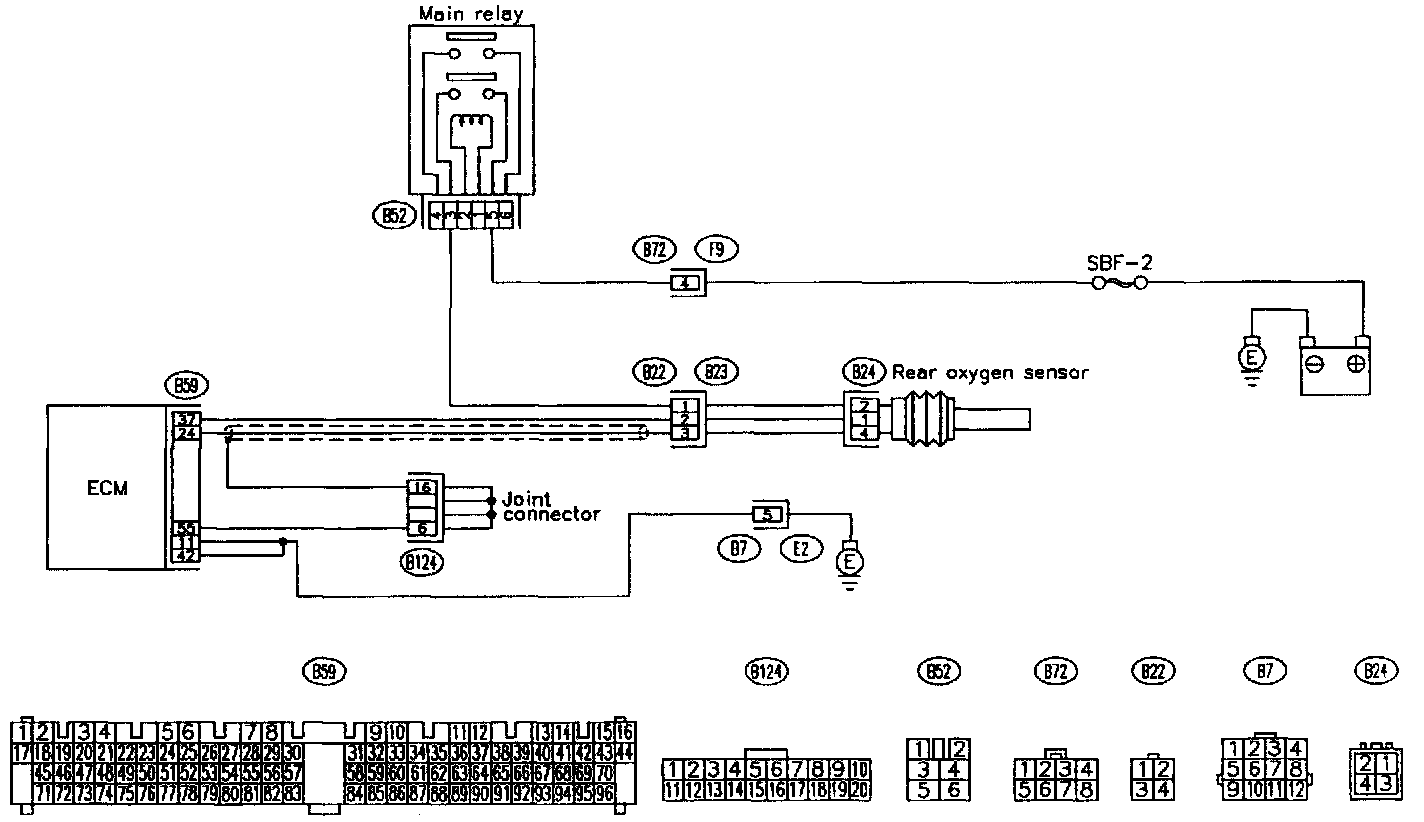

WIRING DIAGRAM

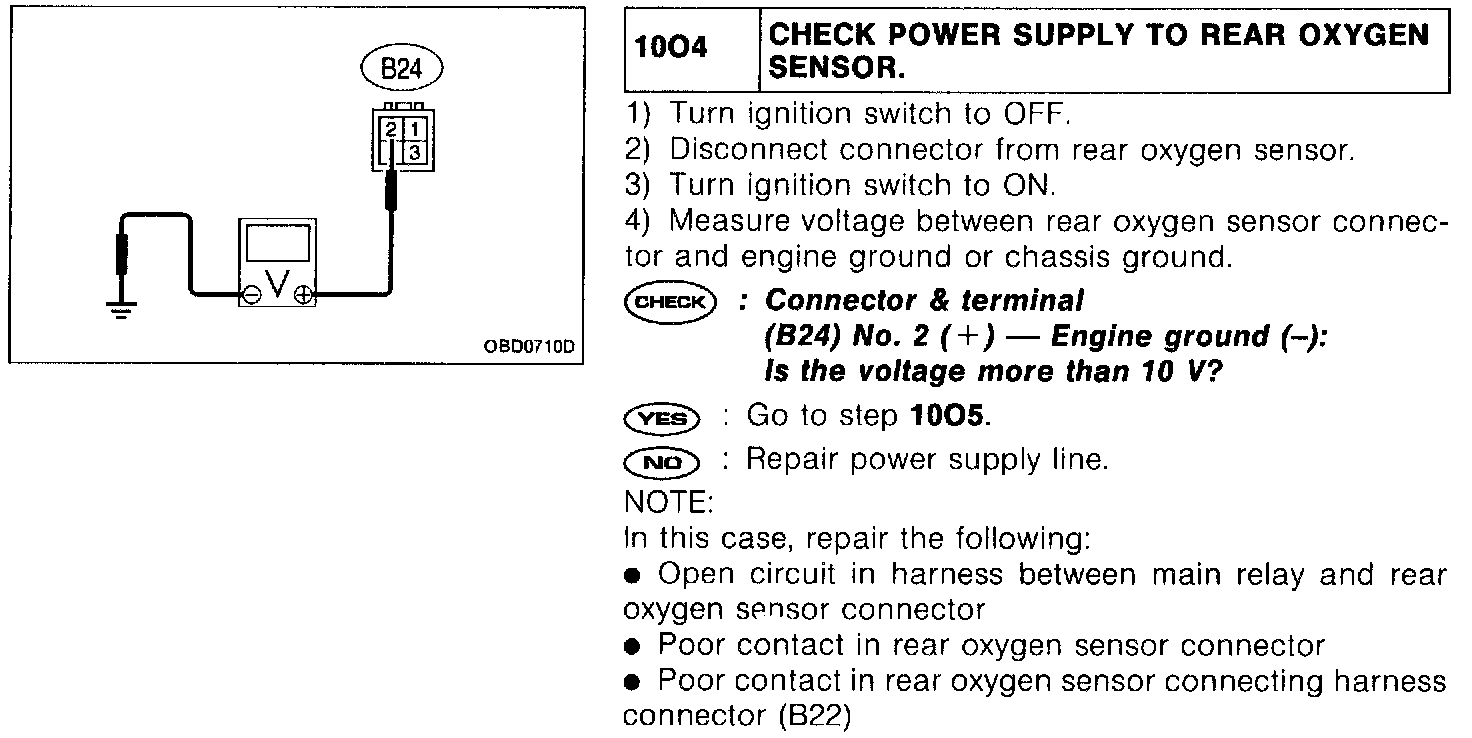

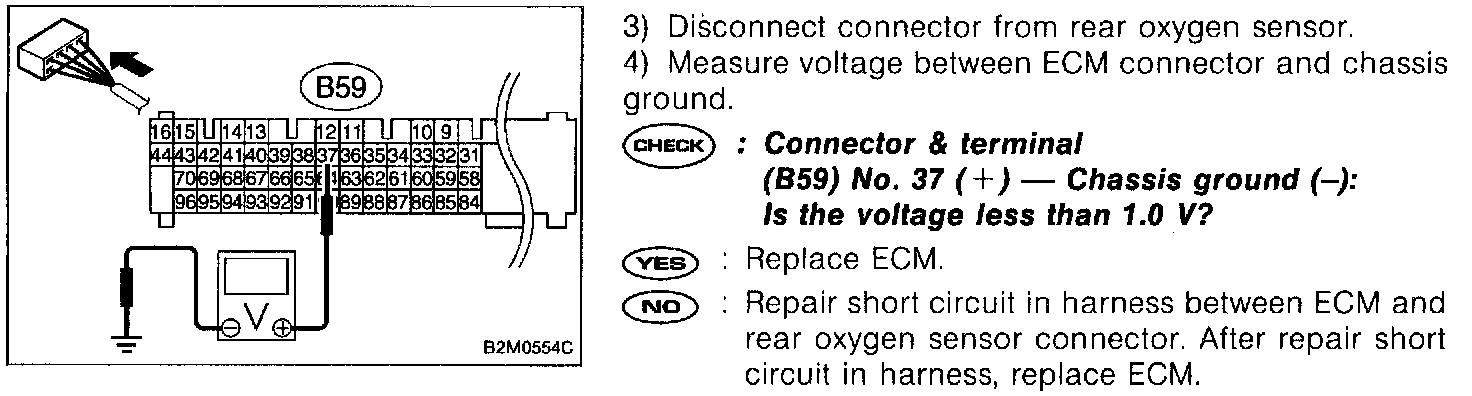

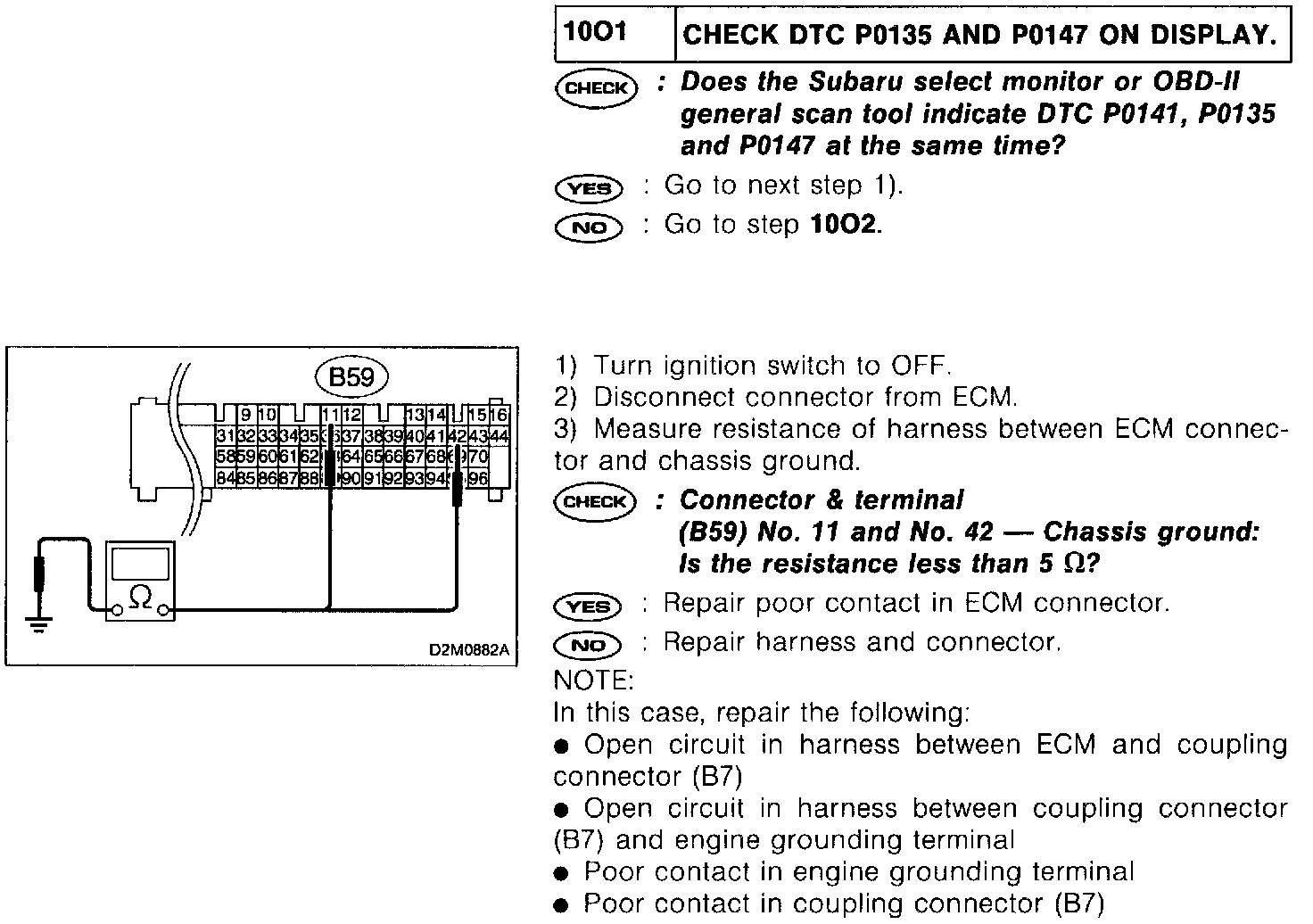

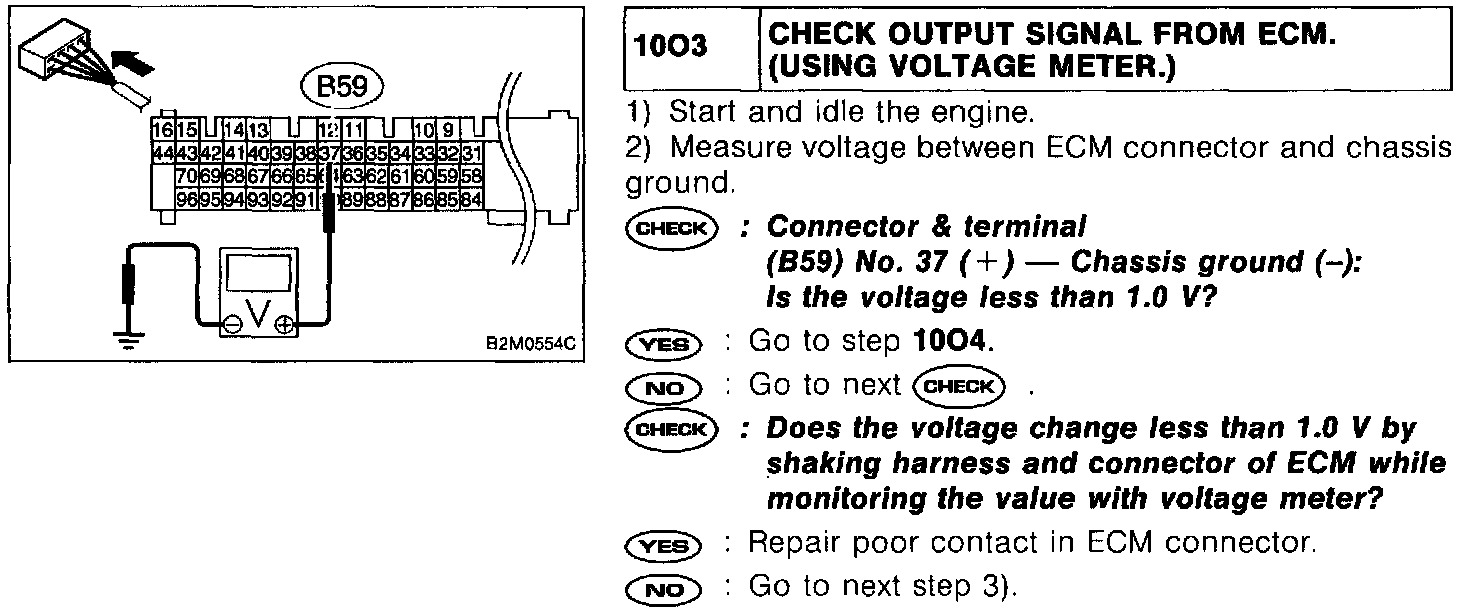

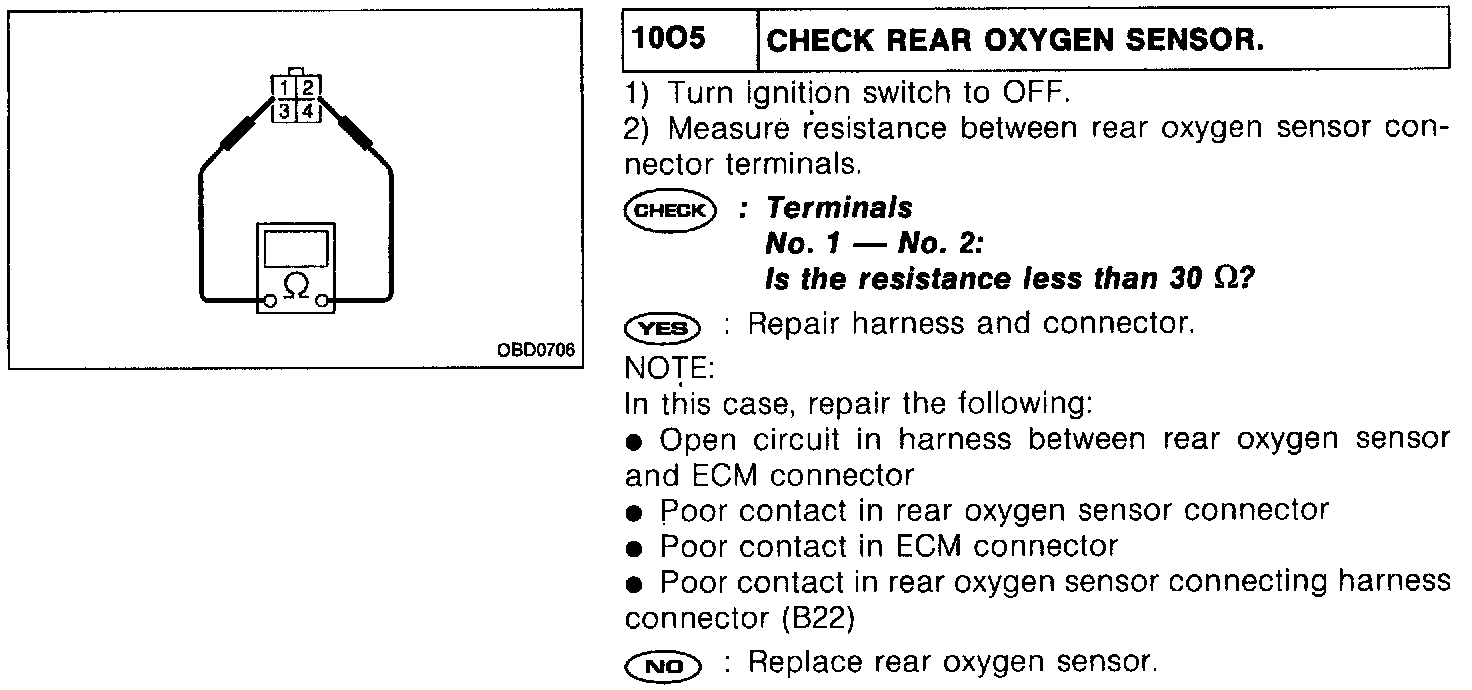

PROCEDURES
