P0136

DTC P0136 - REAR OXYGEN SENSOR CIRCUIT MALFUNCTION (R02-V)

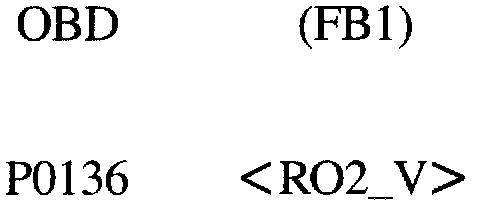

SUBARU SELECT MONITOR DISPLAY

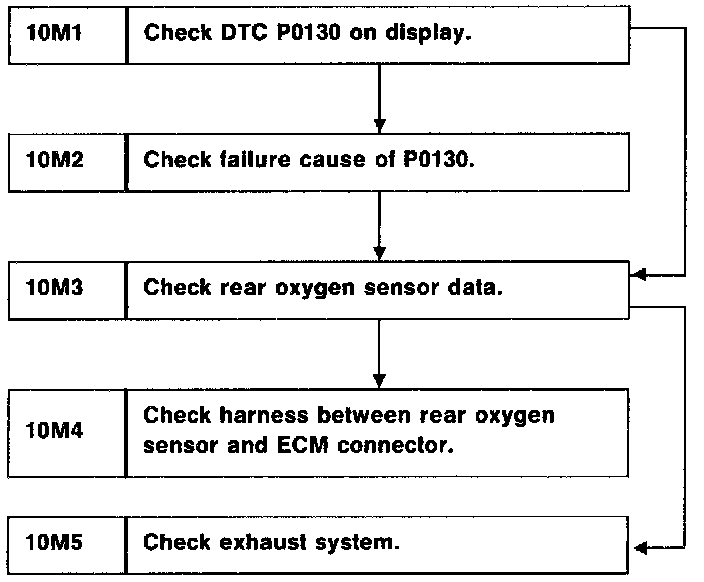

FLOW CHART

DTC DETECTING CONDITION:
- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM

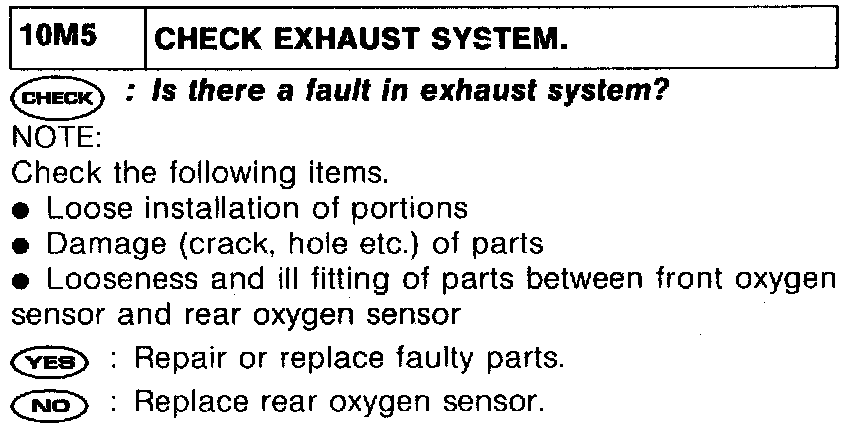

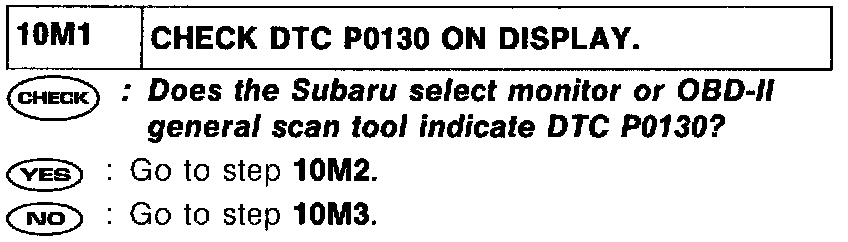

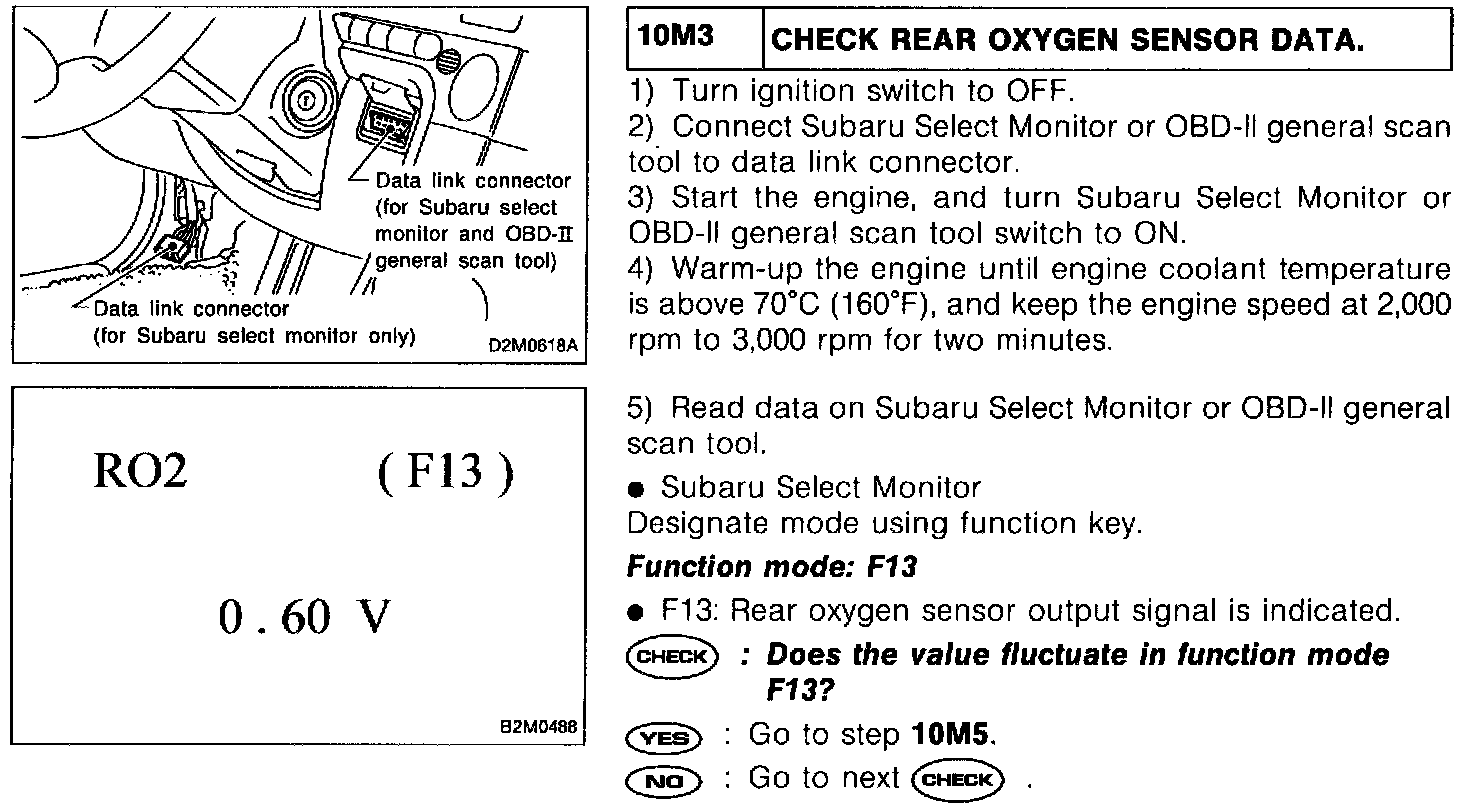

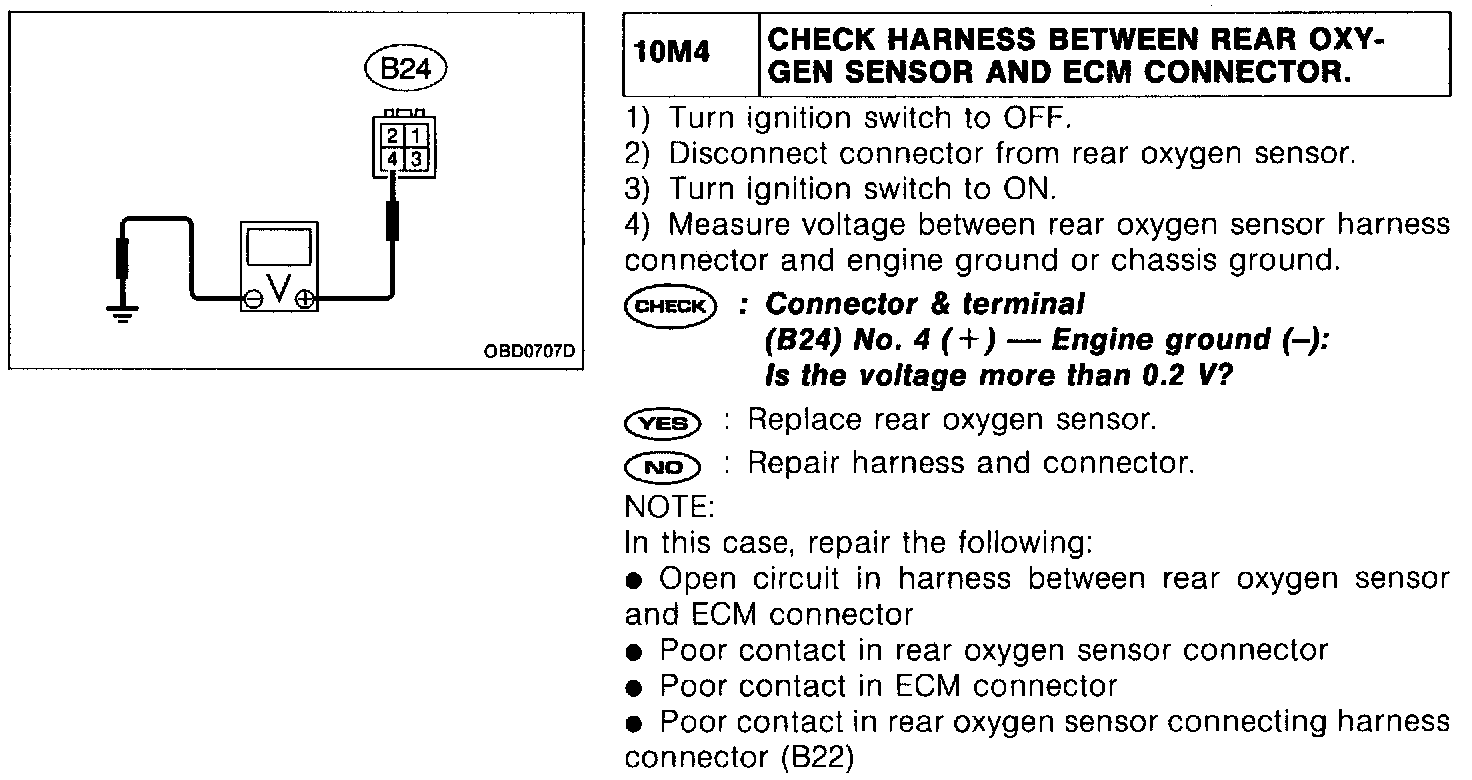

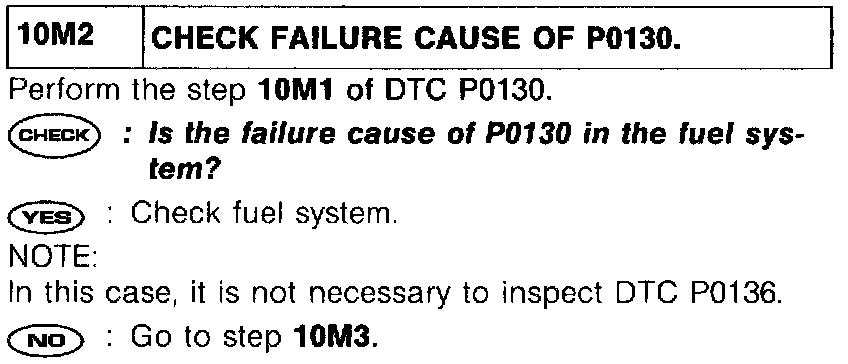

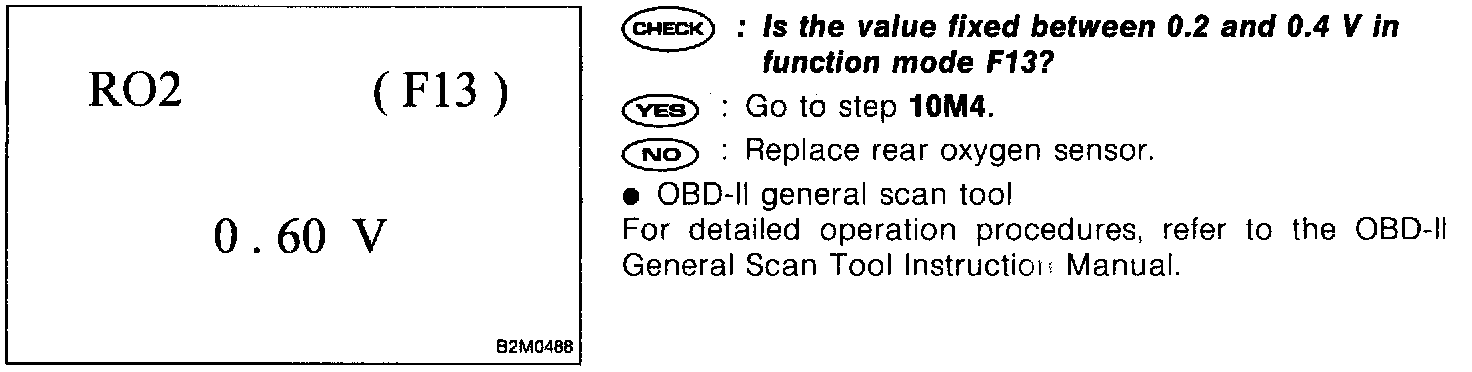

PROCEDURES
